Features:

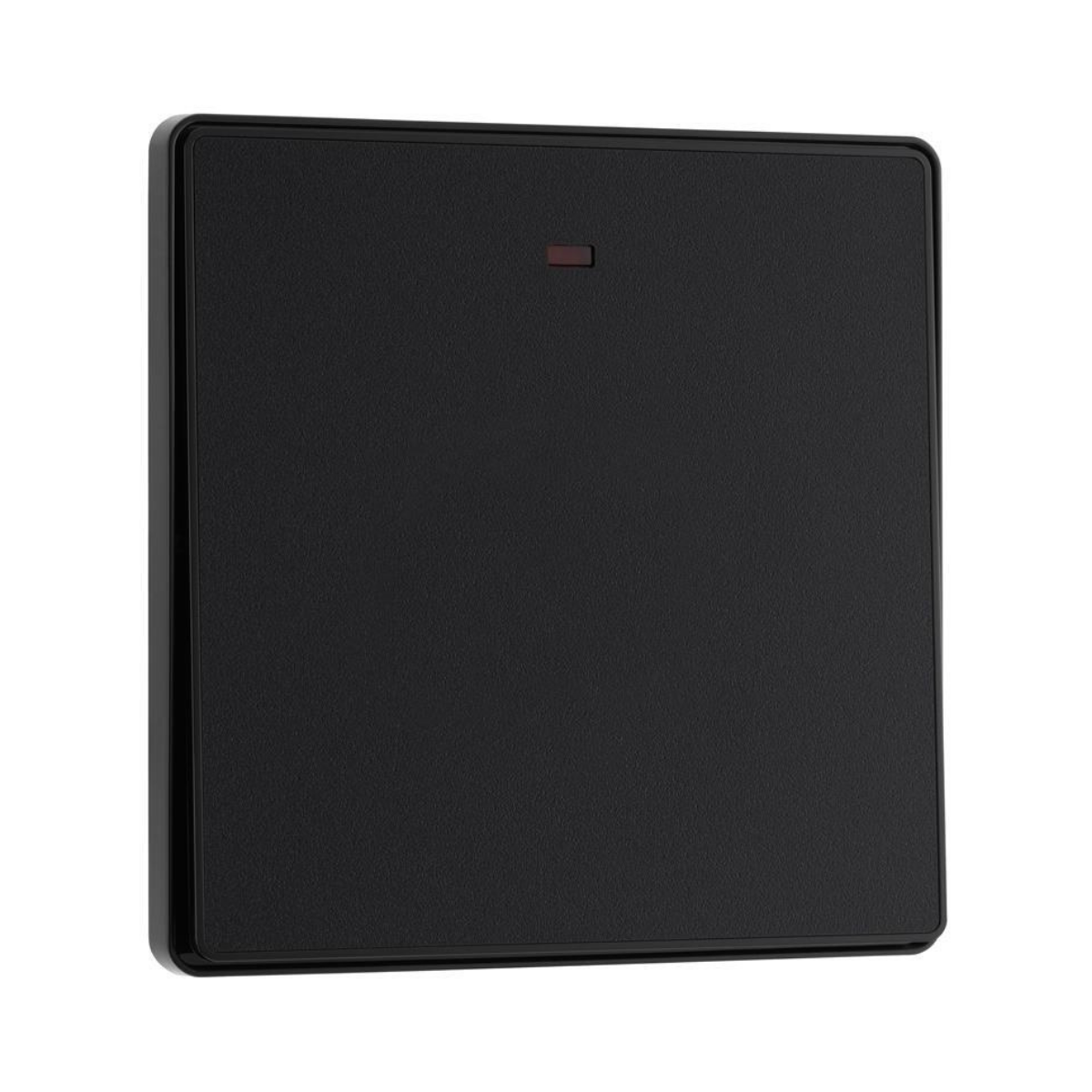

● Modern Screwless Matt Black Design: Slim, low-profile matt black flat plate with a clip-on screwless front for a sleek, contemporary finish that complements modern interiors.
● Reliable Double Pole Switching: Designed to safely isolate both live and neutral for enhanced safety when used with fixed appliances and circuits.
● Flush LED Power Indicator: Integrated indicator light provides clear visual confirmation of switch status.
● Easy Installation: Supplied with fixing screws and installation instructions for quick, hassle-free fitting.
● Colour-Coded Terminals: Terminals are colour coded to make wiring and identification simple.
● Captive Backed-Out Screws: Backed-out captive screws speed up wiring and help prevent screw loss during installation.
● Ideal for Redecorating: Screwless front plate clips on and off easily once the base is installed — perfect for decorating and ongoing maintenance.
Specifications:
● Product Code: PCDMB31EB
● Switch Type: 20A Double Pole
● Rating: 20 A, 250 V AC
● Finish: Matt Black
● Front Plate: Screwless clip-on flat plate
● Indicator: Flush LED power indicator
● Terminals: Captive backed-out screws with colour coding

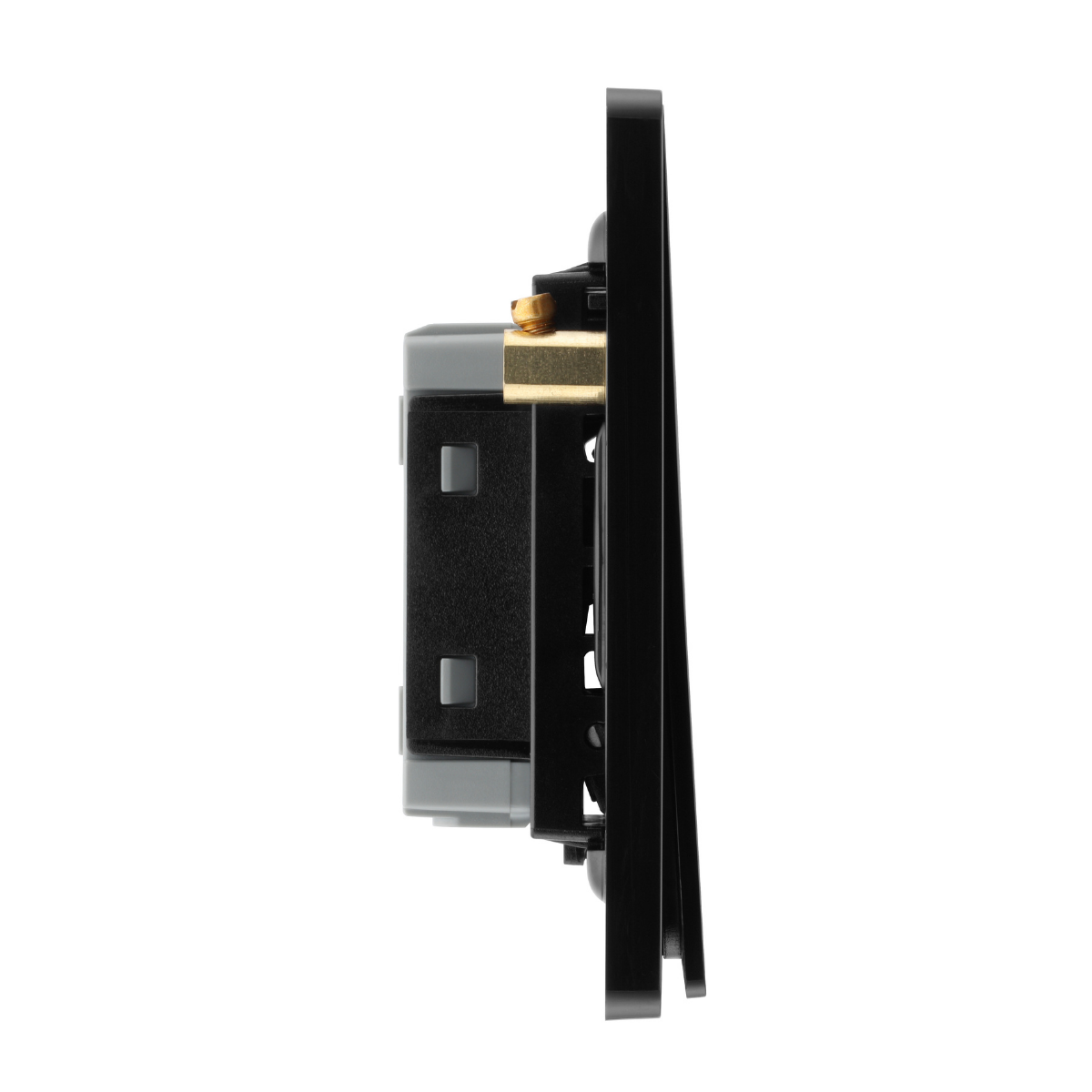

● Mounting Box Depth: 25 mm minimum
● Terminal Capacity: Suitable for common conductor sizes (e.g., up to 2.5 mm², 4 mm² & 6 mm²) cdn.pimber.ly
● Operation: On/Off
● Dimensions: 86 x 86 x 23.8mm
