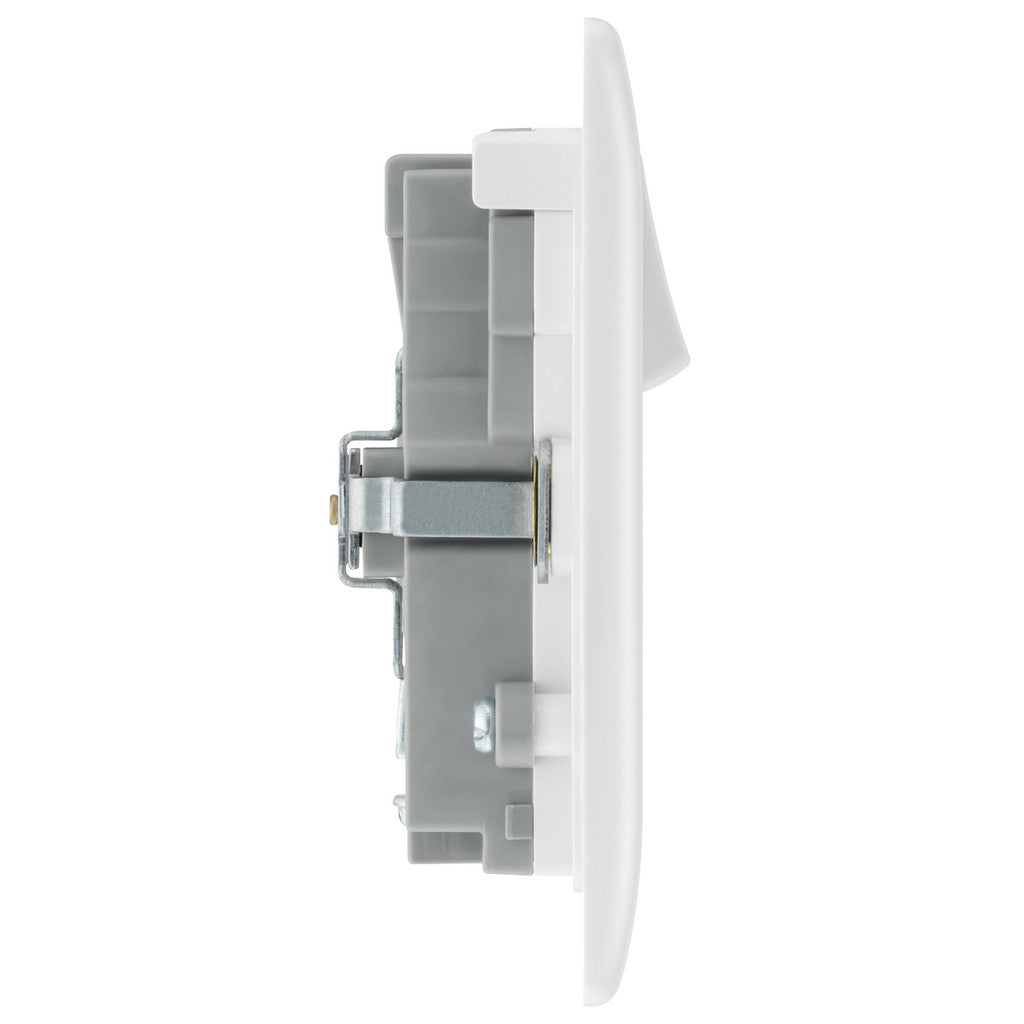

British General BG Neo Slimline 2 Gang Switched Socket with 15W USB A+C+C (PCWH22UACC15)

Description:

Elevate your power access with the British General PCWH22UACC15 Neo Slimline USB Power Socket — a modern, space-saving solution that combines traditional UK power outlets with advanced USB charging. Featuring integrated smart charging technology and a sleek slimline design, it’s ideal for powering everything from smartphones and tablets to cameras and other USB-powered devices. Designed for professional installation, this socket ensures safety, efficiency, and a clutter-free power setup.

Features:

Triple USB Smart Charging: Integrated USB-A and USB-C ports deliver up to 15.5W combined output

Smart Charging Technology: Automatically optimizes voltage and current for efficient, safe charging

Slimline Modern Design: Discreet appearance with concealed fixing screws for a clean finish

Built-in Overcurrent Protection: Safety feature with automatic recovery to protect connected devices

Professional Installation-Ready: Backed-out screws and color-coded terminals for easy wiring

Enhanced Safety: Twin earth terminals ensure additional protection and circuit integrity

Eco-Friendly: RoHS and WEEE compliant for responsible electronics usage

Specifications:

Socket Type: UK Power Outlet with USB-A & USB-C

USB Output: 15.5W max (5V DC, 3.1A shared)

Voltage Rating: 240V AC

Current Rating: 13 Amp

Standby Power: <100mW

Output Tolerance: <5%

Dimensions: 86mm (H) × 147mm (W) × 33mm (D)

Mounting Requirements: Minimum Back Box Depth: 25mm, Fixing Centers: 120.6mm

Terminal Capacity: 3 × 2.5mm², 3 × 4.0mm², 2 × 6.0mm²

Compliance Standards: BS 1363-2:2016+A1:2018, BS EN 62368-1:2014, EN55032, RoHS & WEEE Compliant, Intertek License No.1182

Package Contents: 1 × Neo Slimline USB Power Socket, Fixing Screws, Installation Instructions

Note: Professional installation recommended. Minimum 25mm mounting box depth required.

Warranty:

The British General PCWH22UACC15 comes with a 10-year manufacturer’s warranty, covering defects in materials or workmanship under normal usage conditions. Installation by a qualified professional is advised to ensure safe and compliant use.
