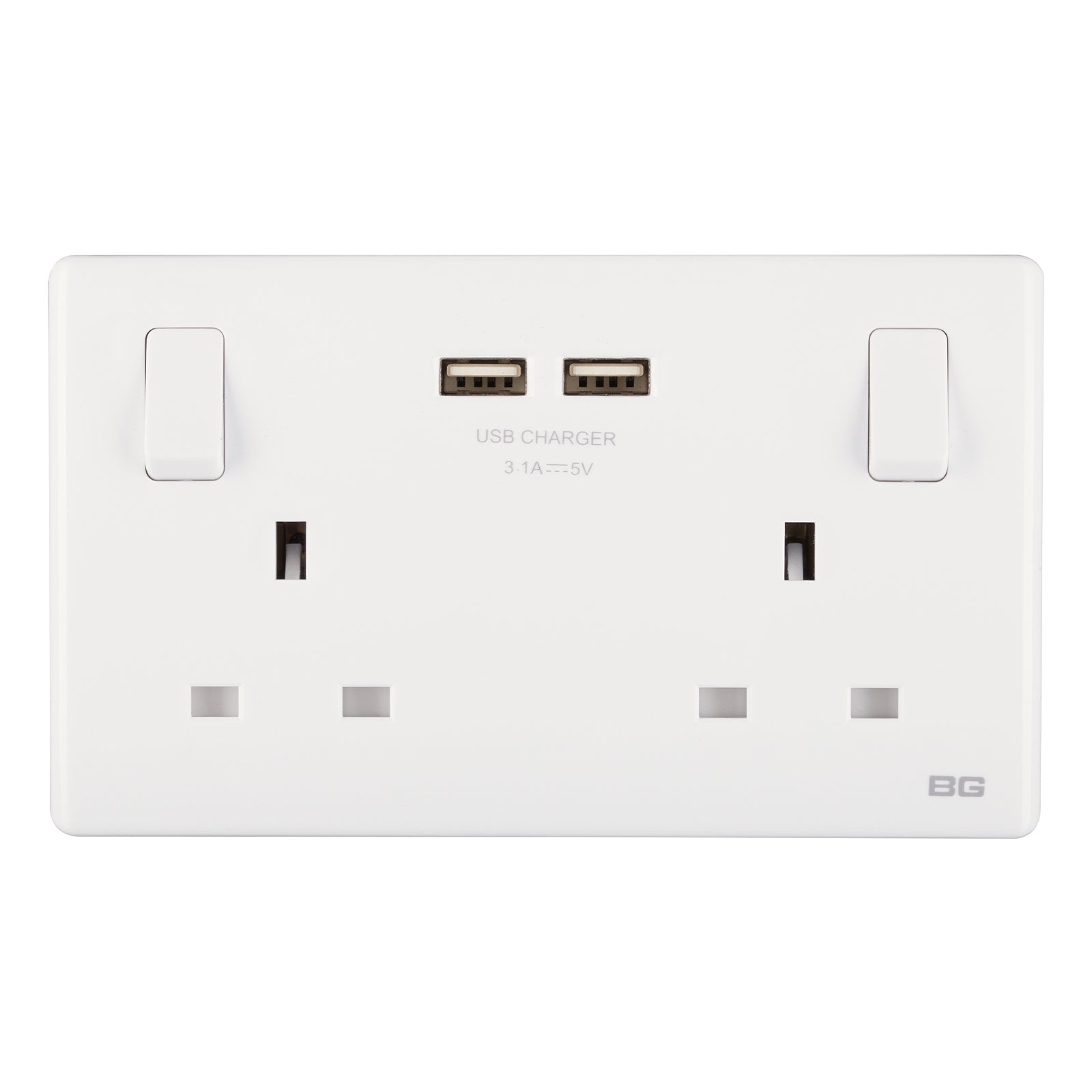

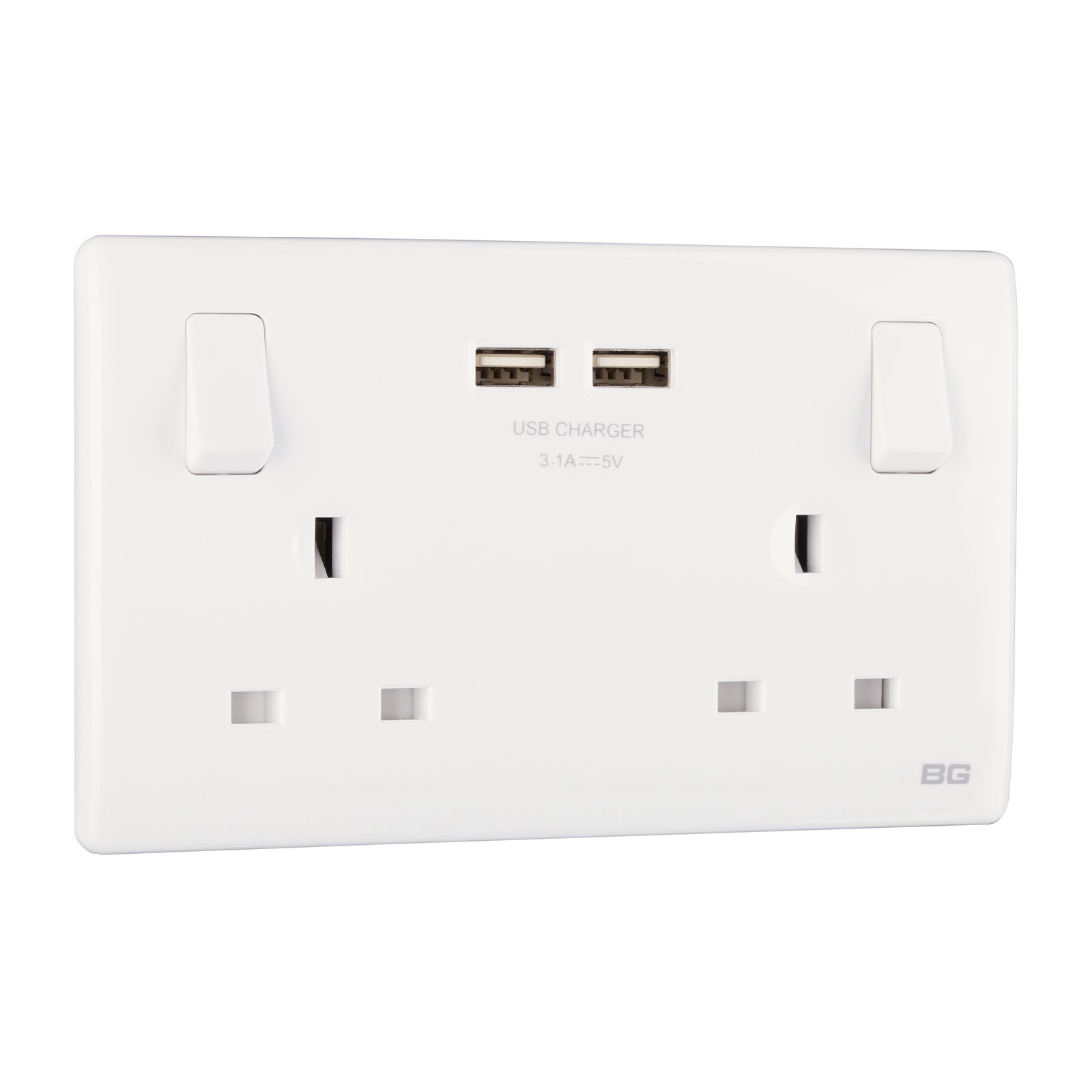

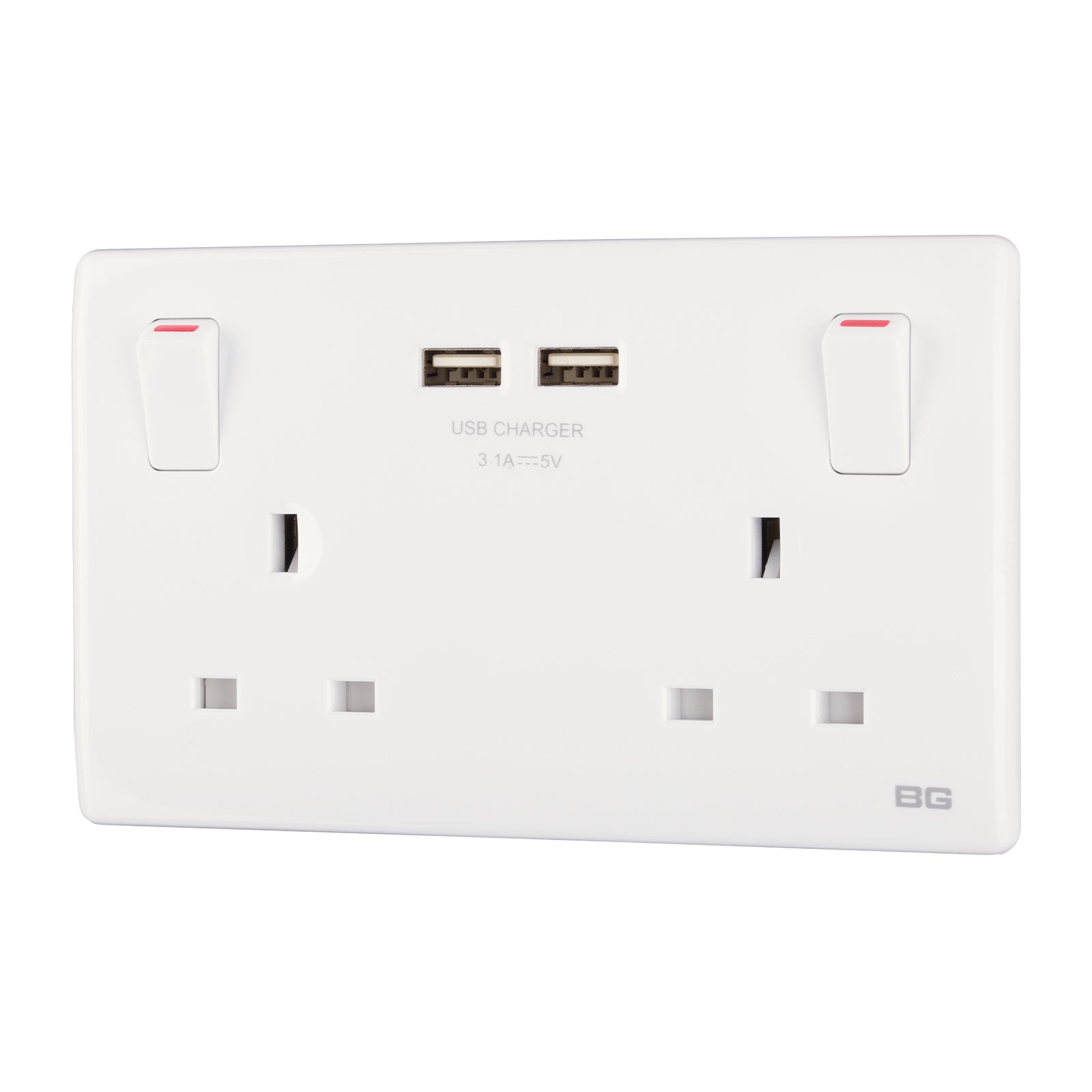

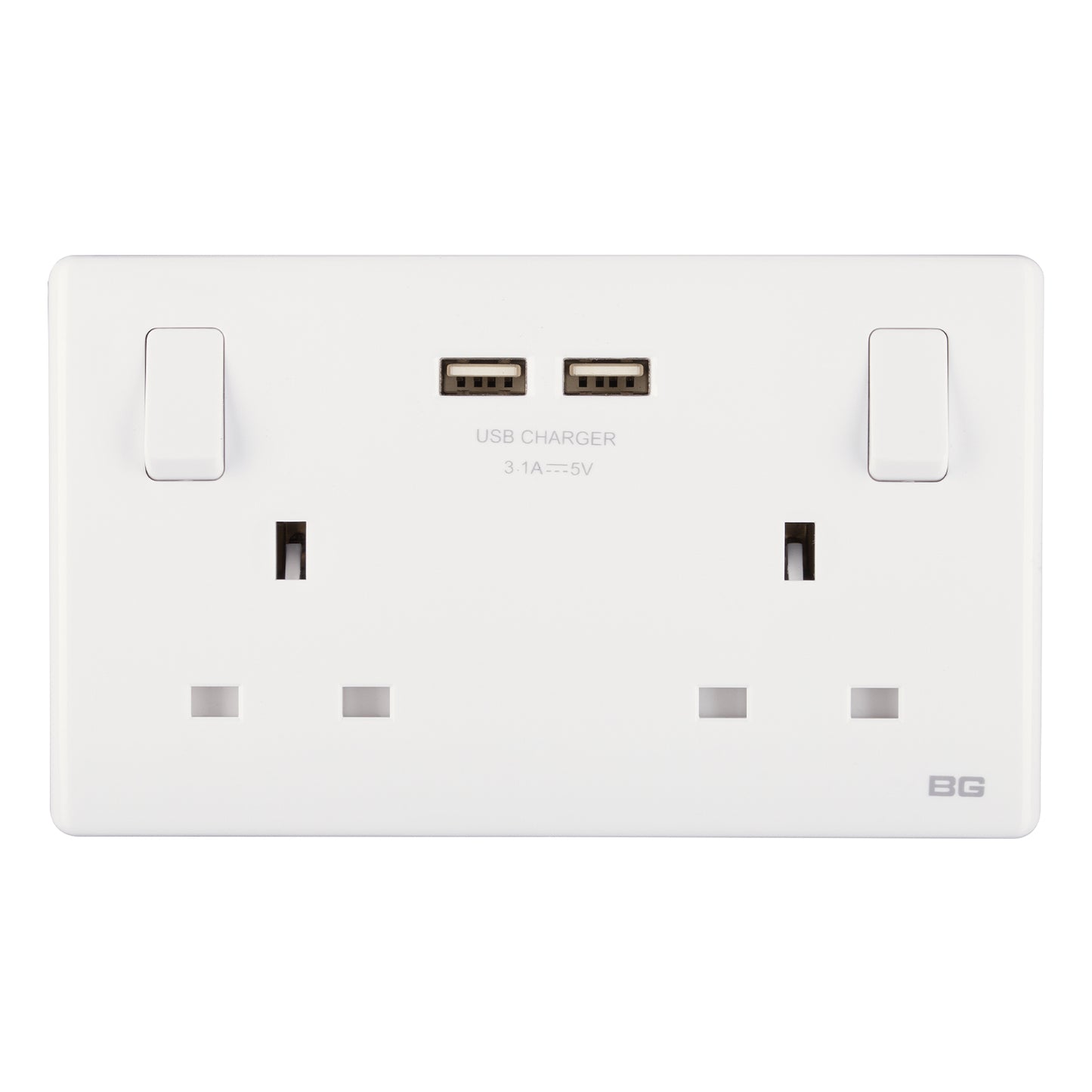

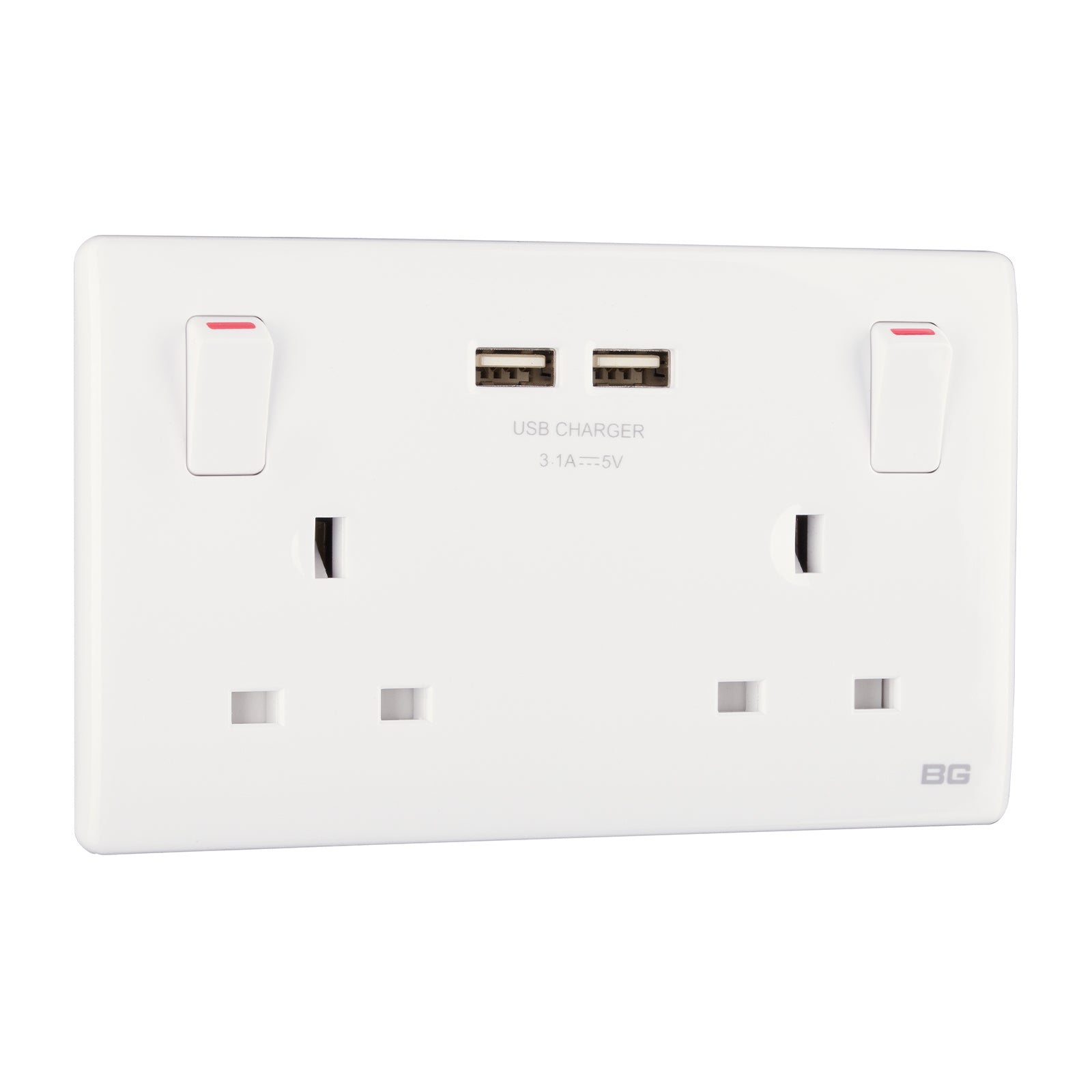

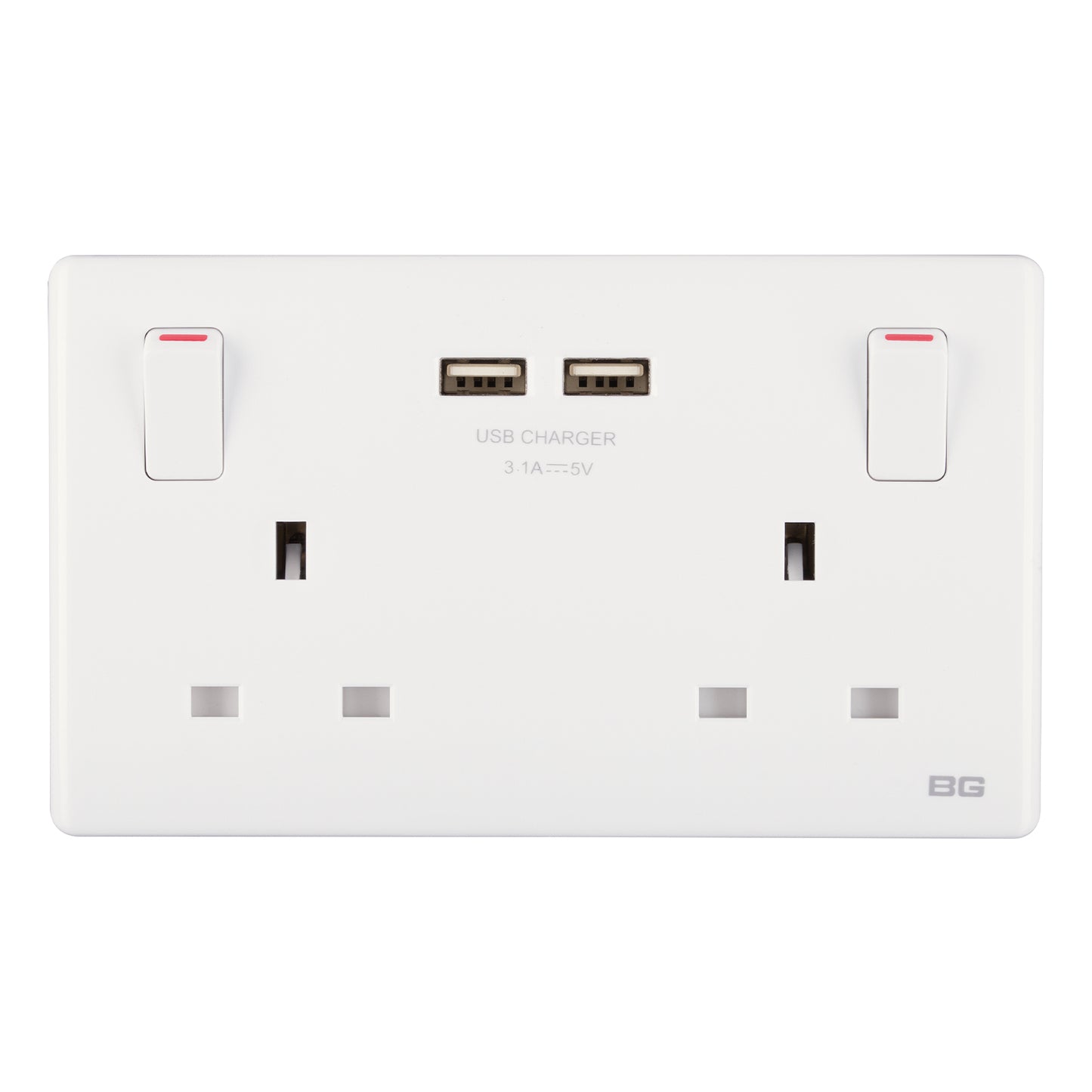

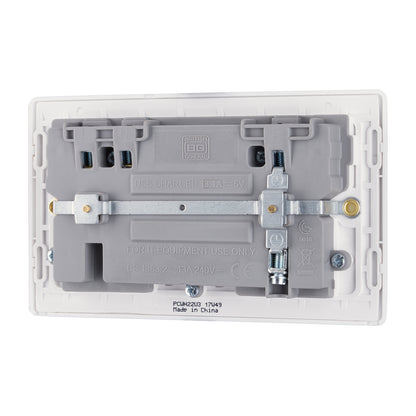

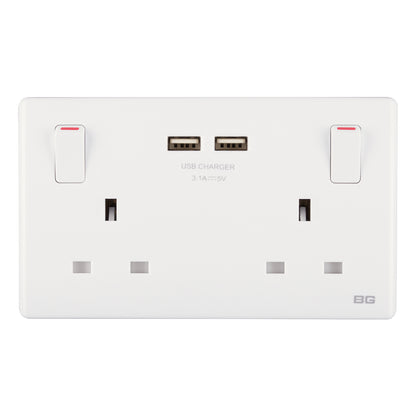

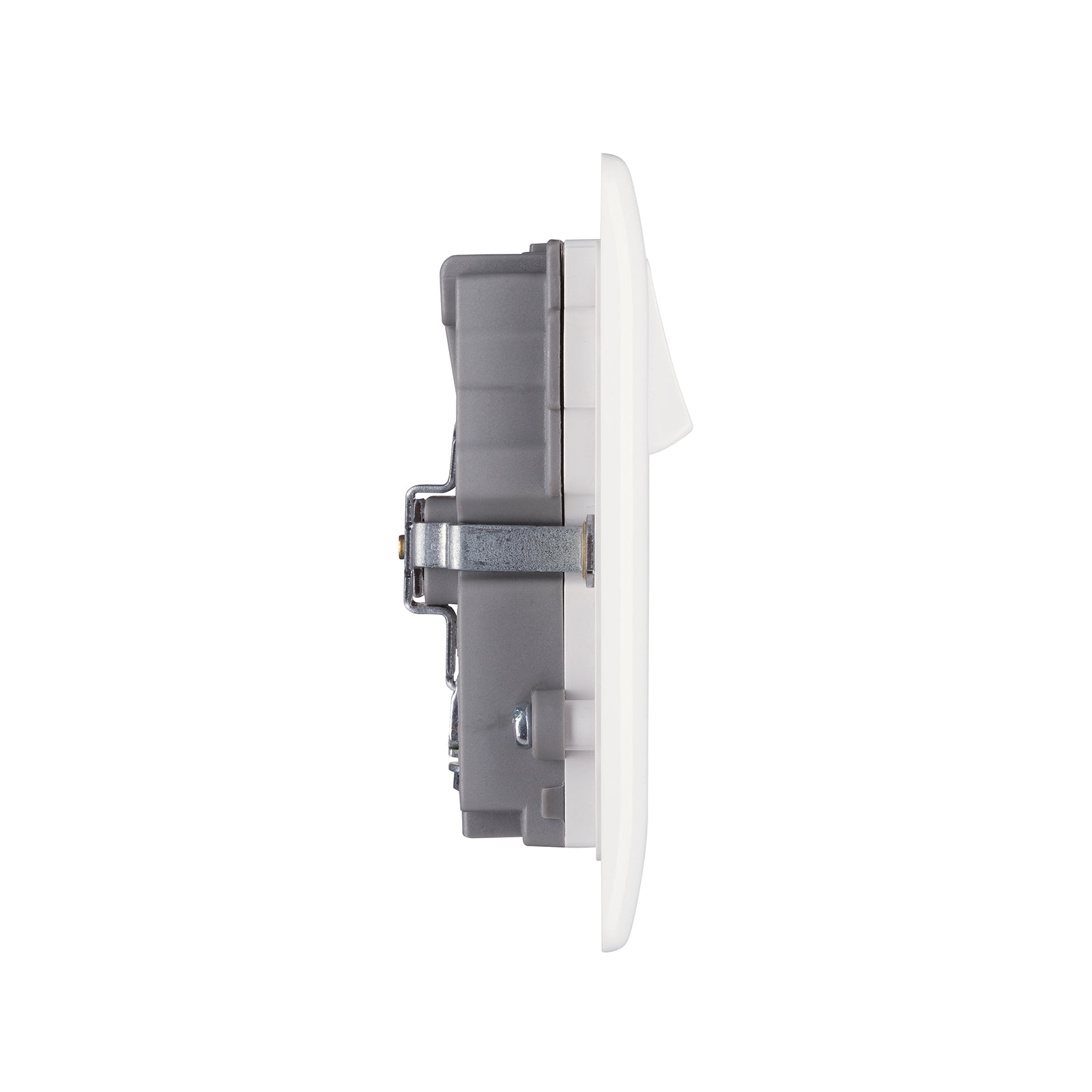

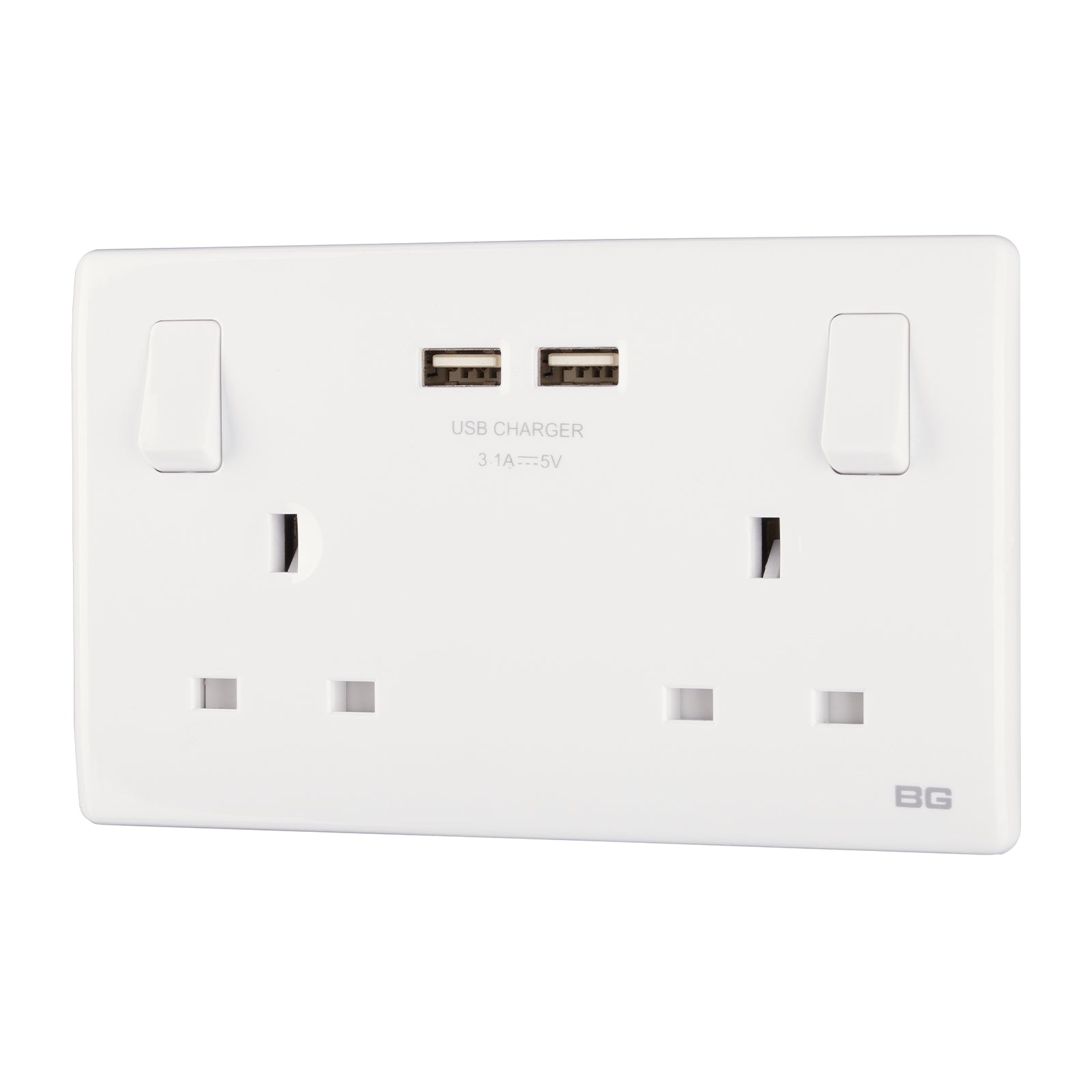

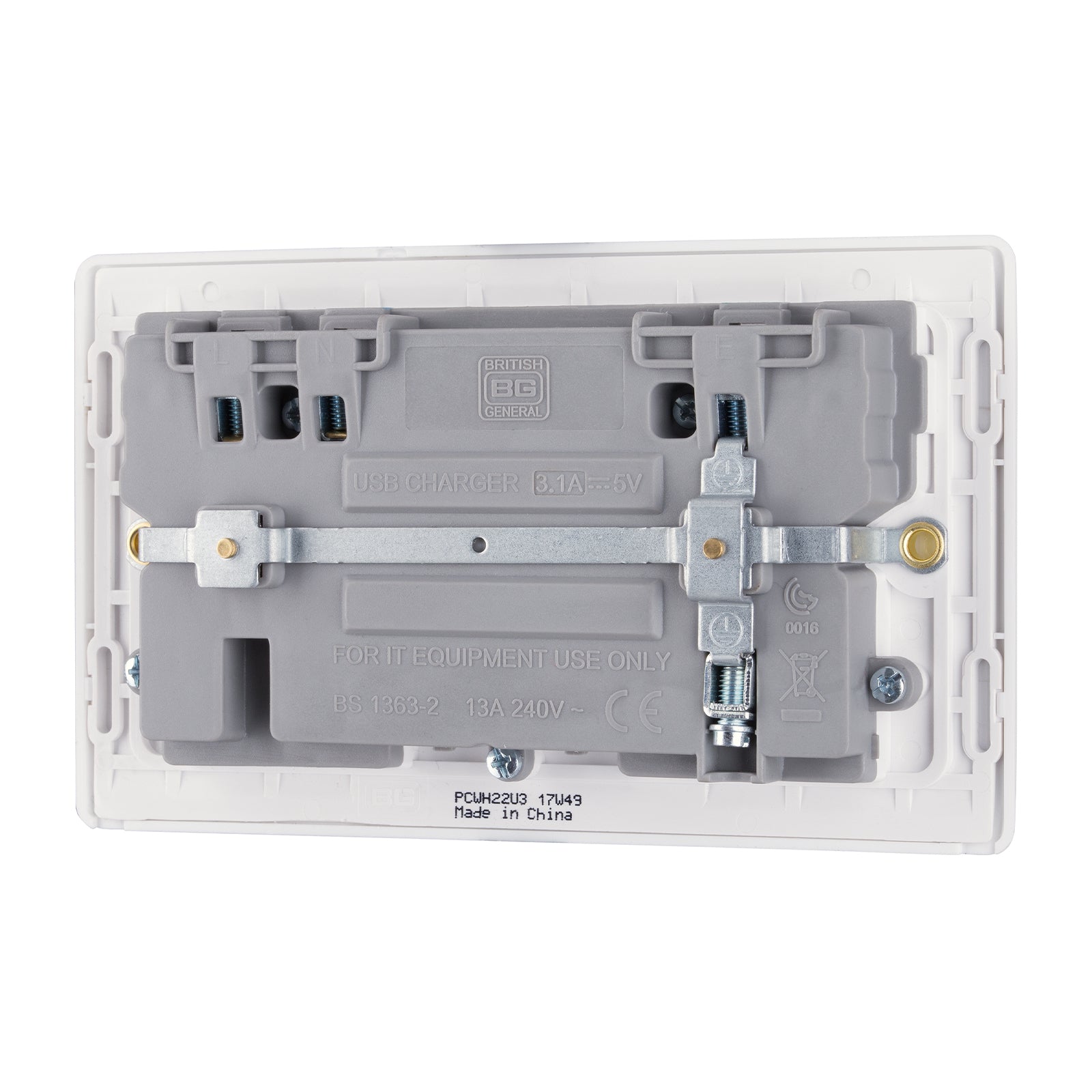

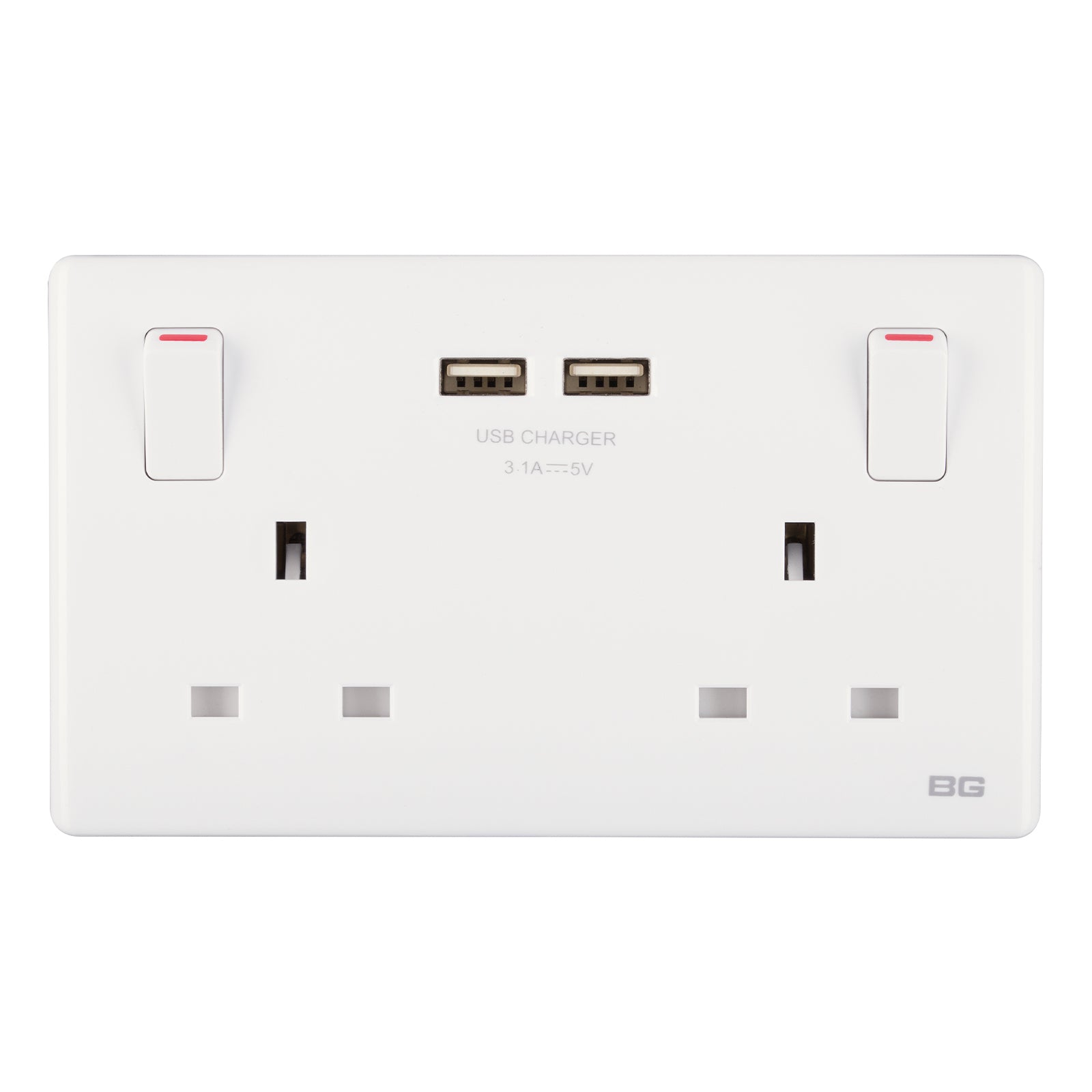

British General BG Neo Slimline Double Socket with USB-A Charger, White (PCWH22U3)

Regular price $19.90
Sale price $19.90 Regular price $29.90
Sale Sold out
Tax included. Shipping calculated at checkout.
In stock (106 units), ready to be shipped

Description

Charge your devices without losing plug space! The BG Neo Slimline Double Socket with Dual USB Charging is the ideal solution for homes, offices, and commercial spaces. Its modern, low-profile design with a smooth white screwless faceplate blends effortlessly into any interior, while the built-in Smart USB technology ensures safe and efficient charging for all your USB-powered devices.

Whether it's phones, tablets, cameras or more, the PCWH22U3 offers flexibility and future-ready convenience in one sleek unit.


Key Features

13A Rated Dual UK Power Sockets

Integrated Dual USB-A Ports (5V, 3.1A total)

Smart USB Charging
  Detects devices automatically and adjusts output
  Stops charging when device is full to protect battery life
  Enters standby mode when not in use to conserve energy

Universal Compatibility: Manufactured to UK-BS 1363-2 and IEC 60884-1 standards

Concealed Fixing Screws for a clean, modern finish

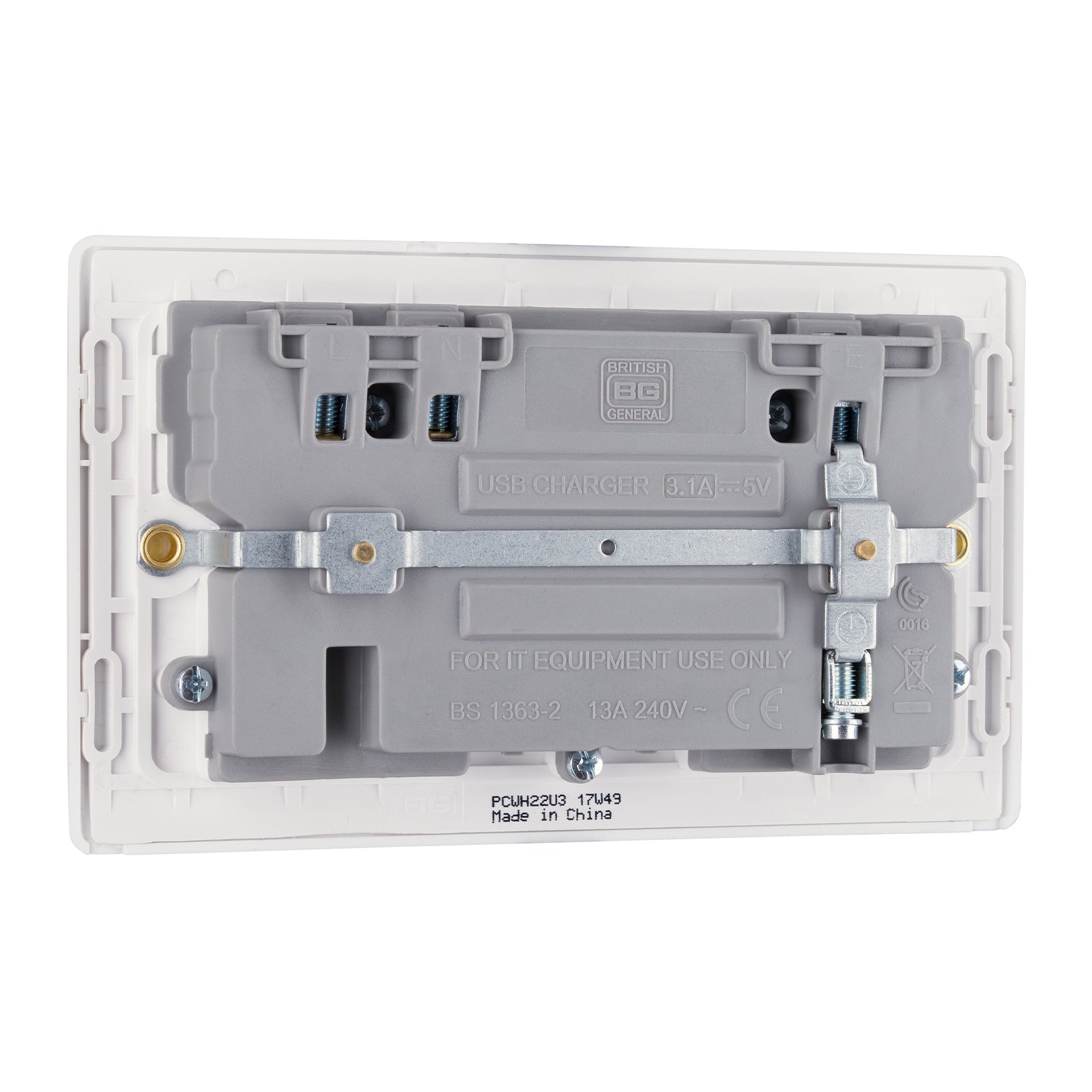

Twin Earth Terminals: High-integrity circuit ready

Screwless Clip-On Front Plate for quick installation and maintenance

Captive Terminal Screws to prevent screw loss during fitting


Technical Specifications

Standards: BS 1363-2 (UK), IEC 60884-1 (Universal)

Rating: 13 Amp, 240V ~

Contact Gap: 3.0mm minimum

Switch Type: Single Pole

Terminal Capacity (L & N): 3 x 2.5mm², 3 x 4.0mm², 2 x 6.0mm²

Mounting Box Depth (Min): 35mm

Fixing Centres: 120.6mm

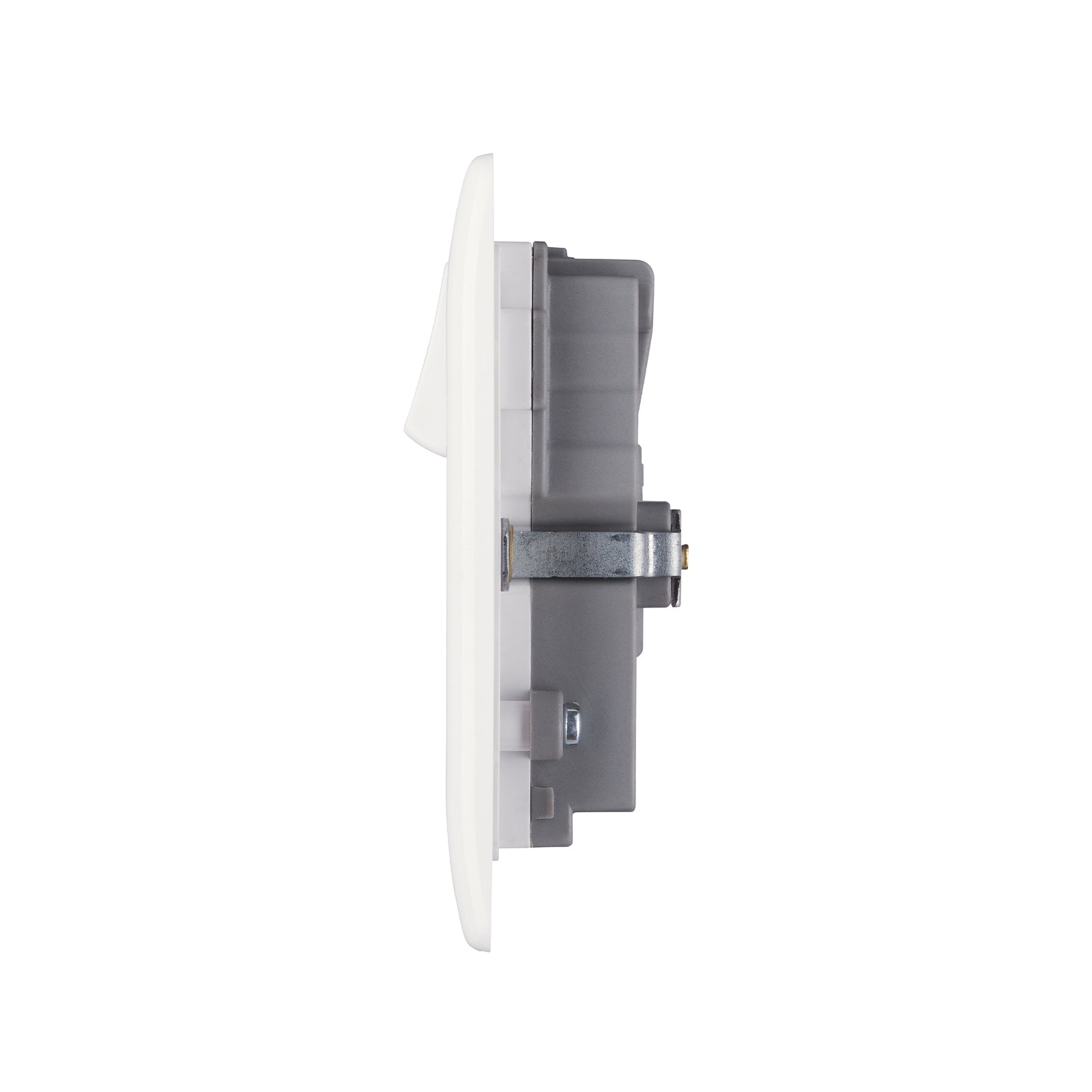

Dimensions (H x W x D): 86mm x 146mm x 32mm


USB Charging Specs

USB Output: 5V DC, 3.1A total (shared across both ports)

Output Tolerance: <5%

Standby Power Consumption: <75mW

Overcurrent Protection: ≤2.43A


Certifications

ASTA Certified: Yes (Licence No. 1182)

RoHS Compliant: Yes

WEEE Directive: Not applicable


Warranty

25-Year Manufacturer’s Warranty
Built to last and backed by British General’s trusted durability.
