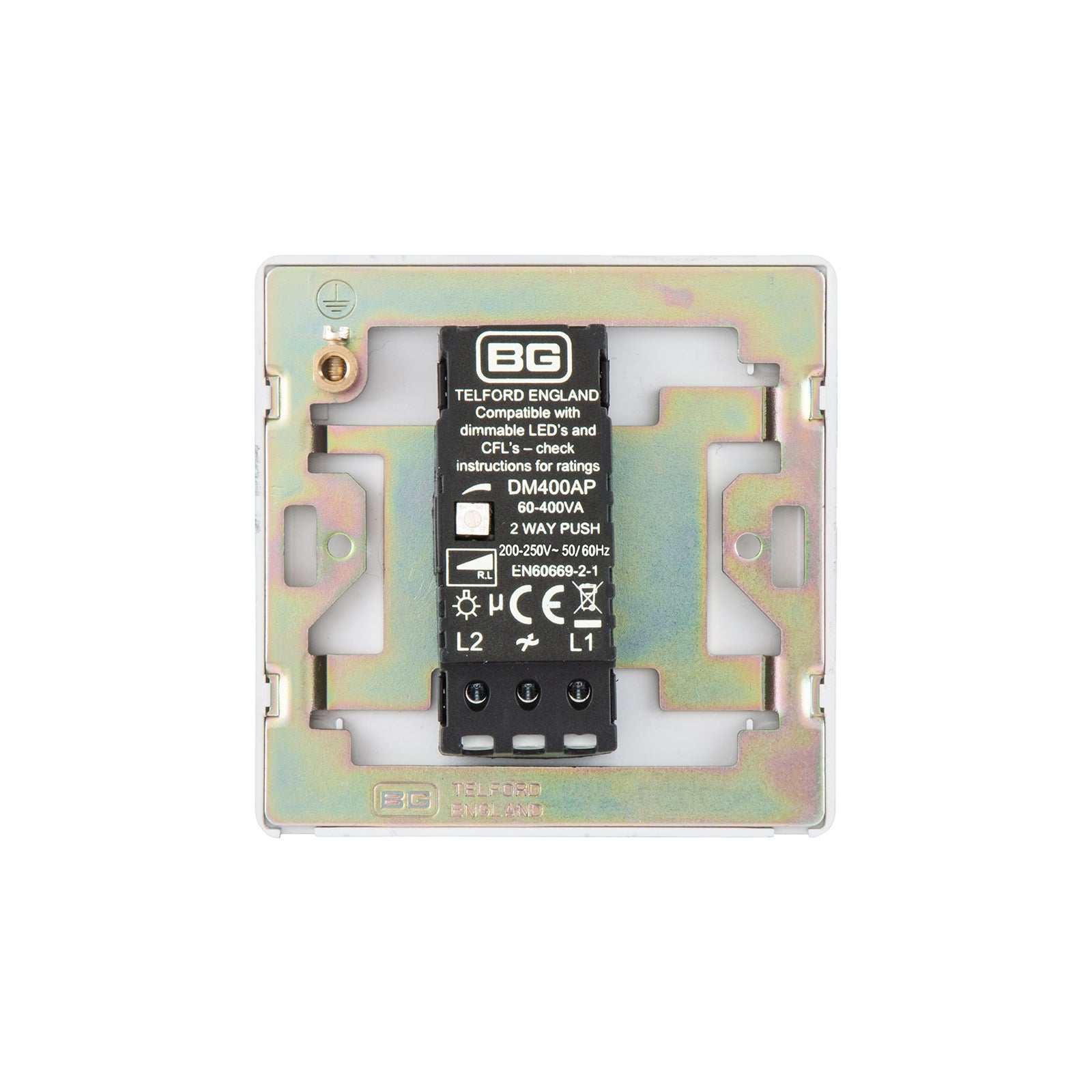

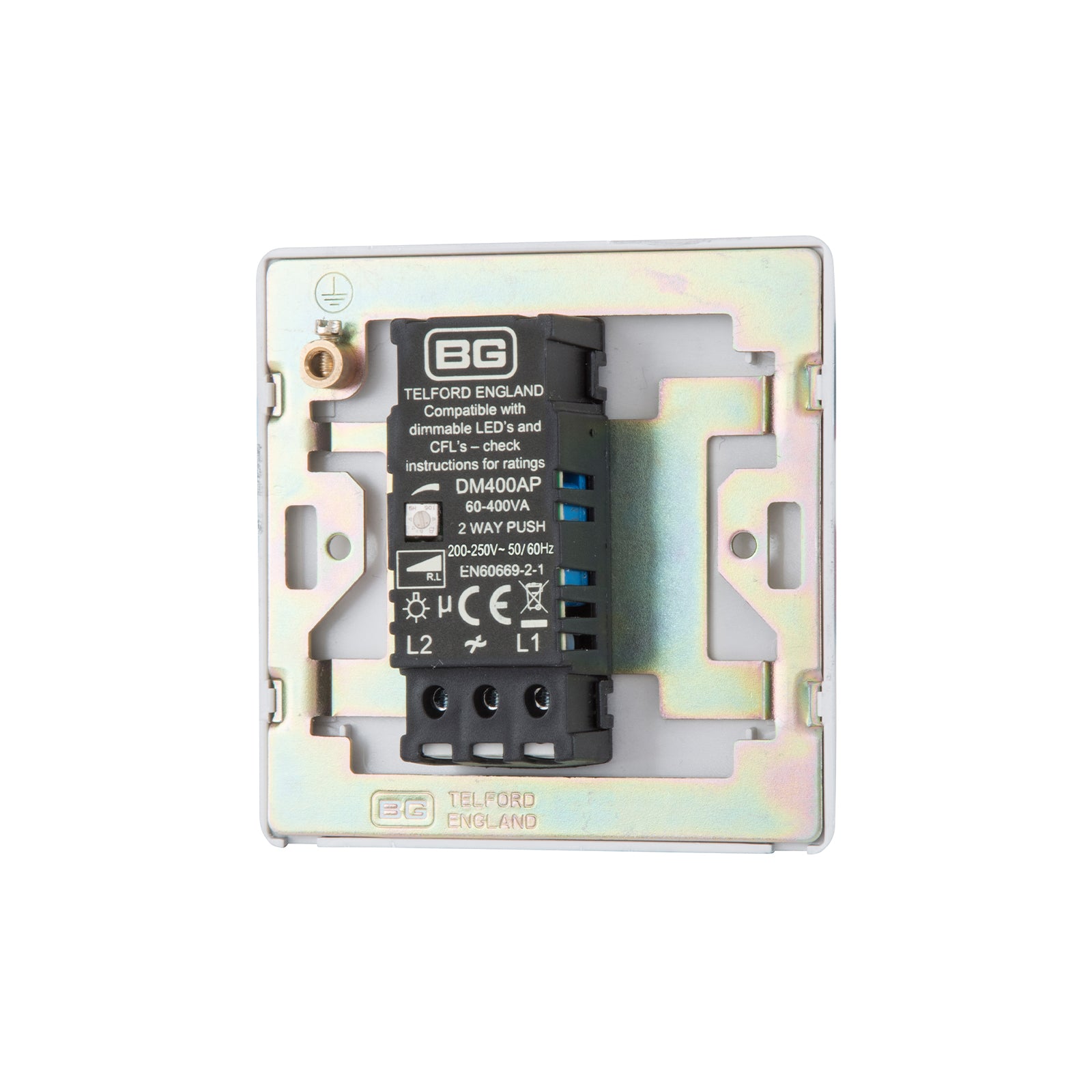

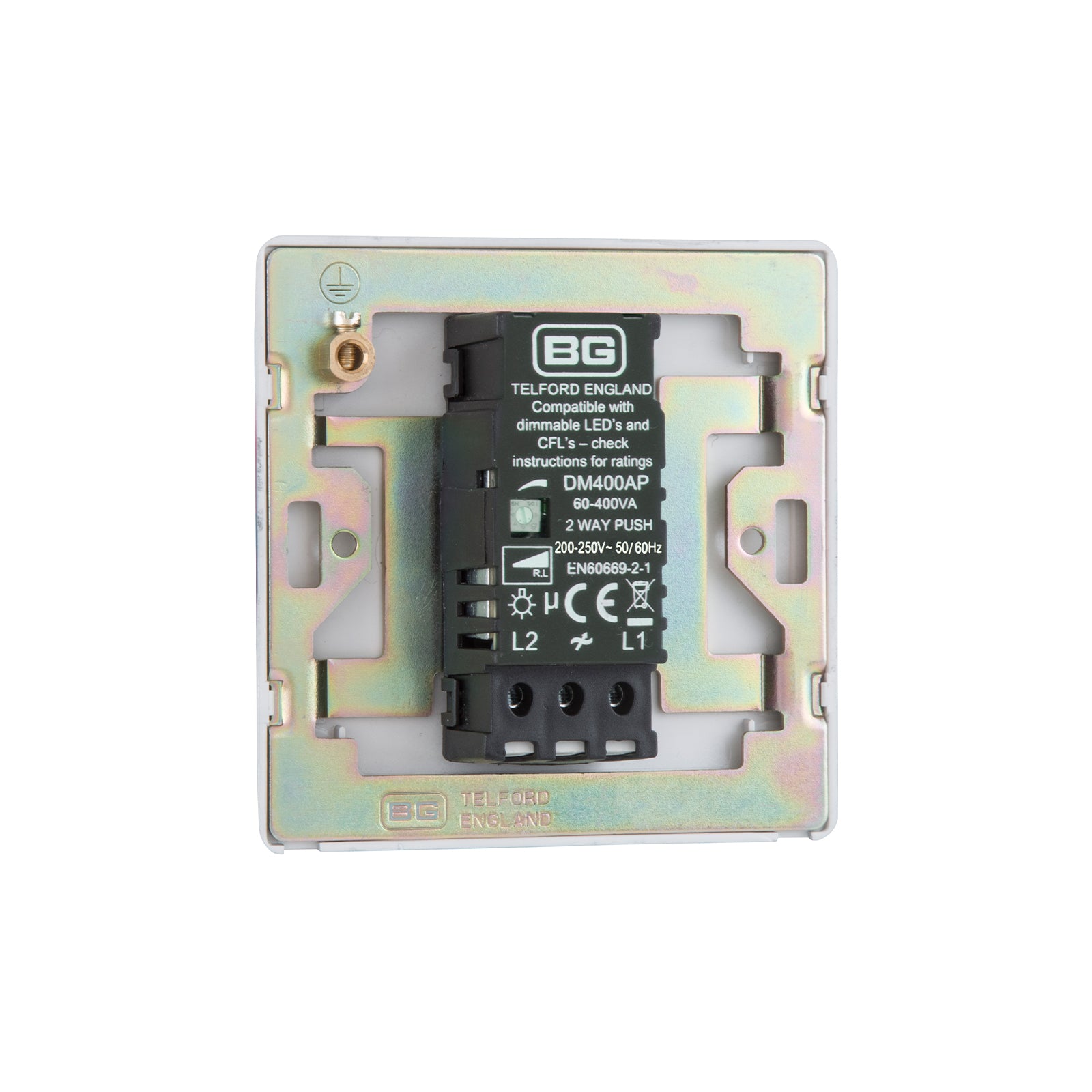

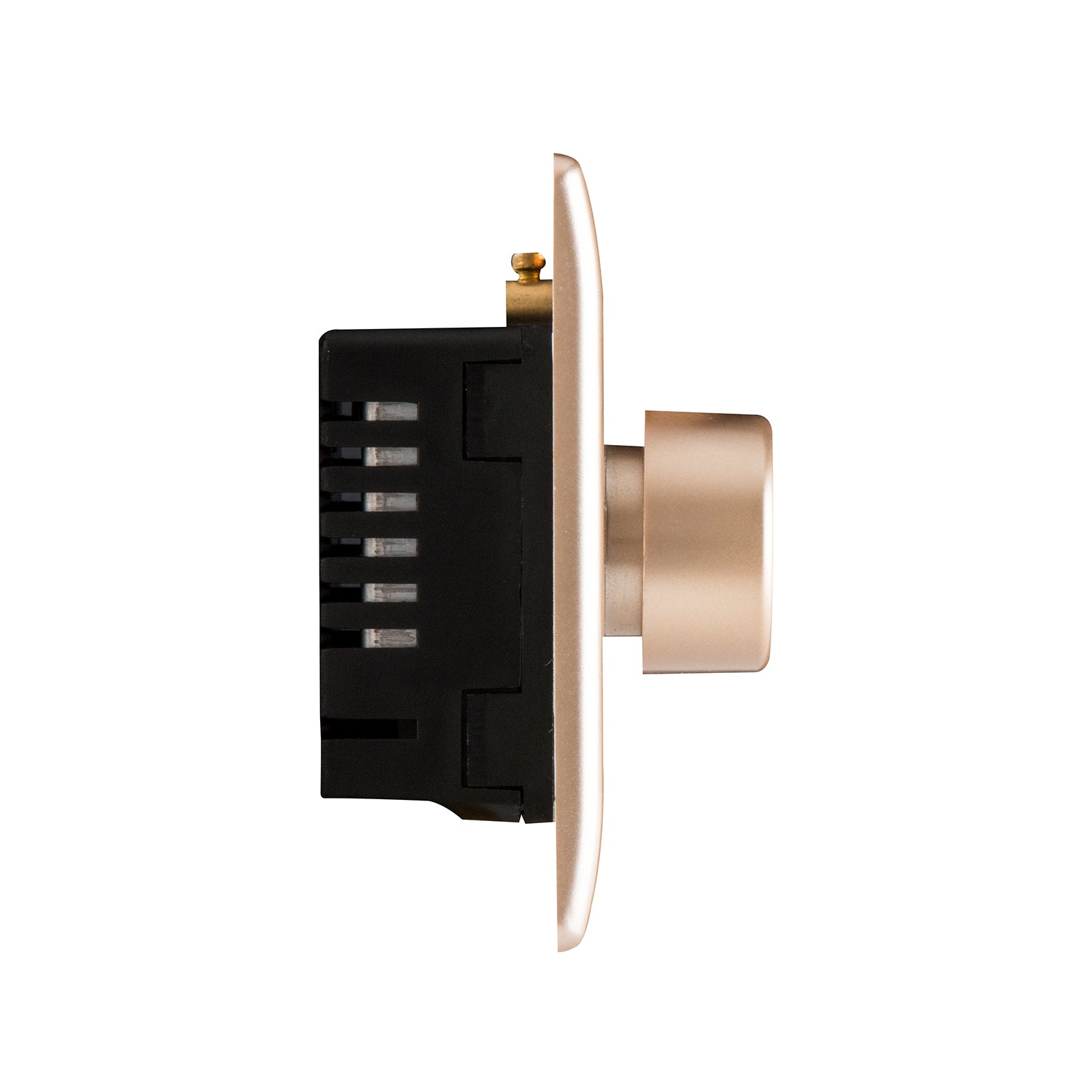

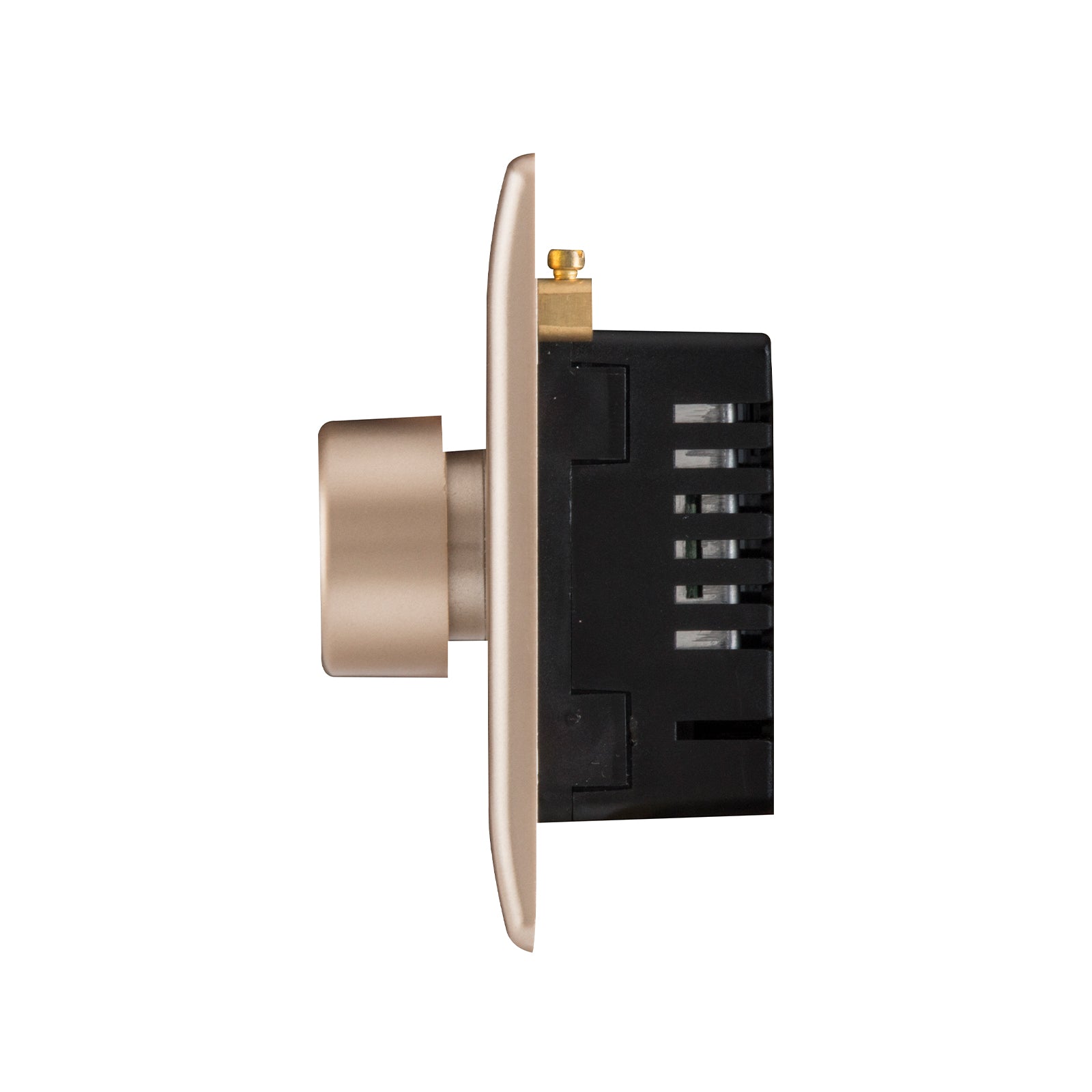

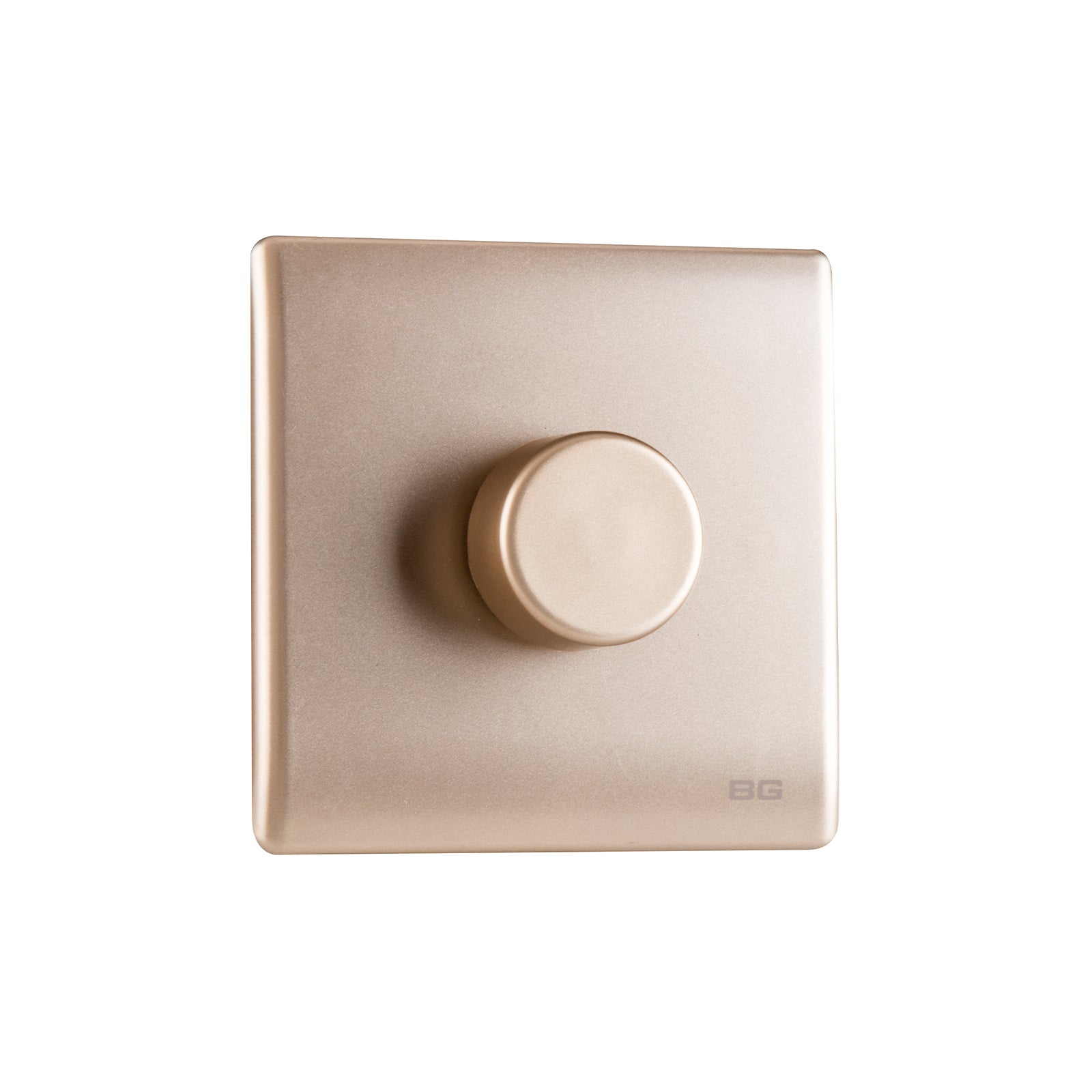

British General BG Neo Slimline 2 Way 400W Dimmer Switch (PCCH81)

Description

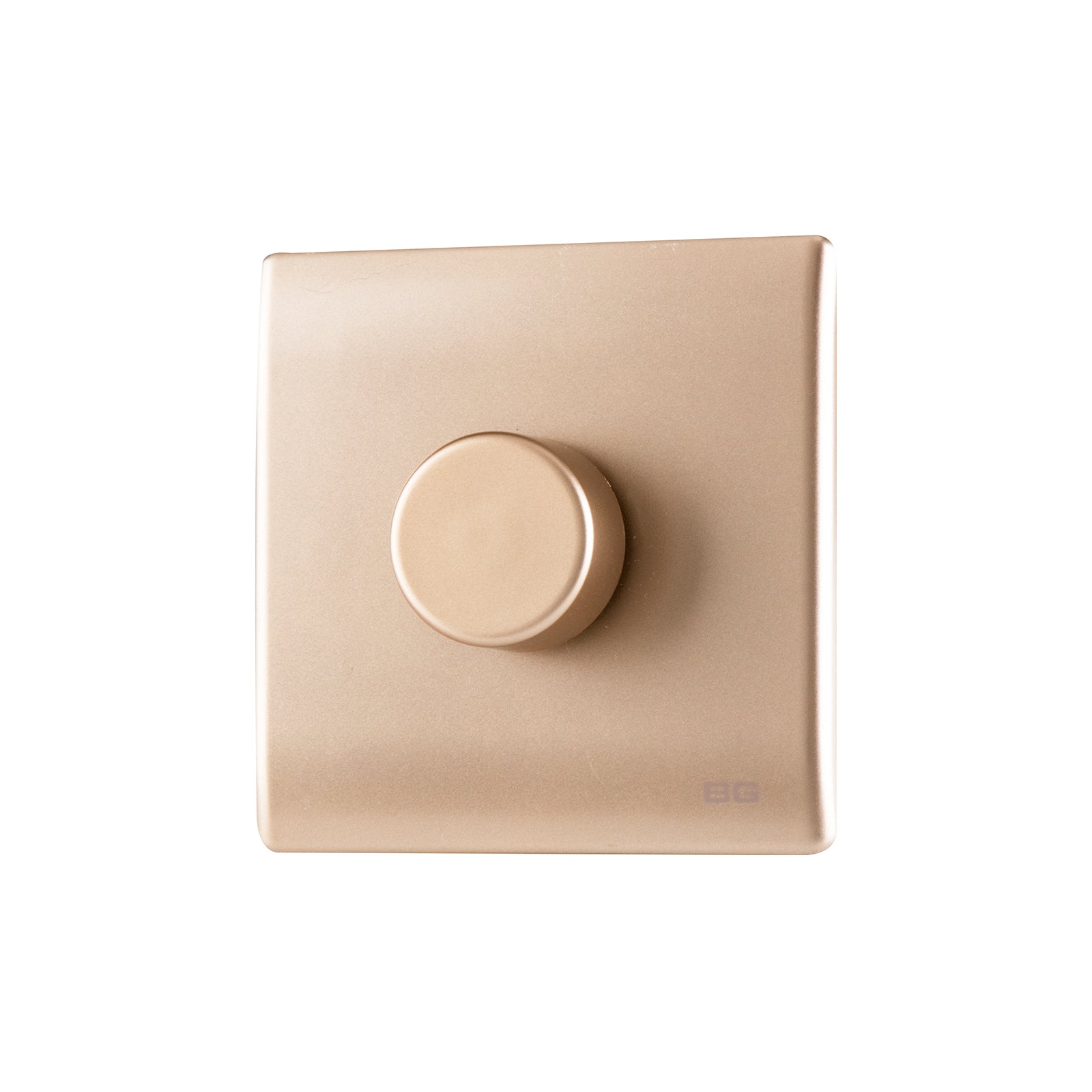

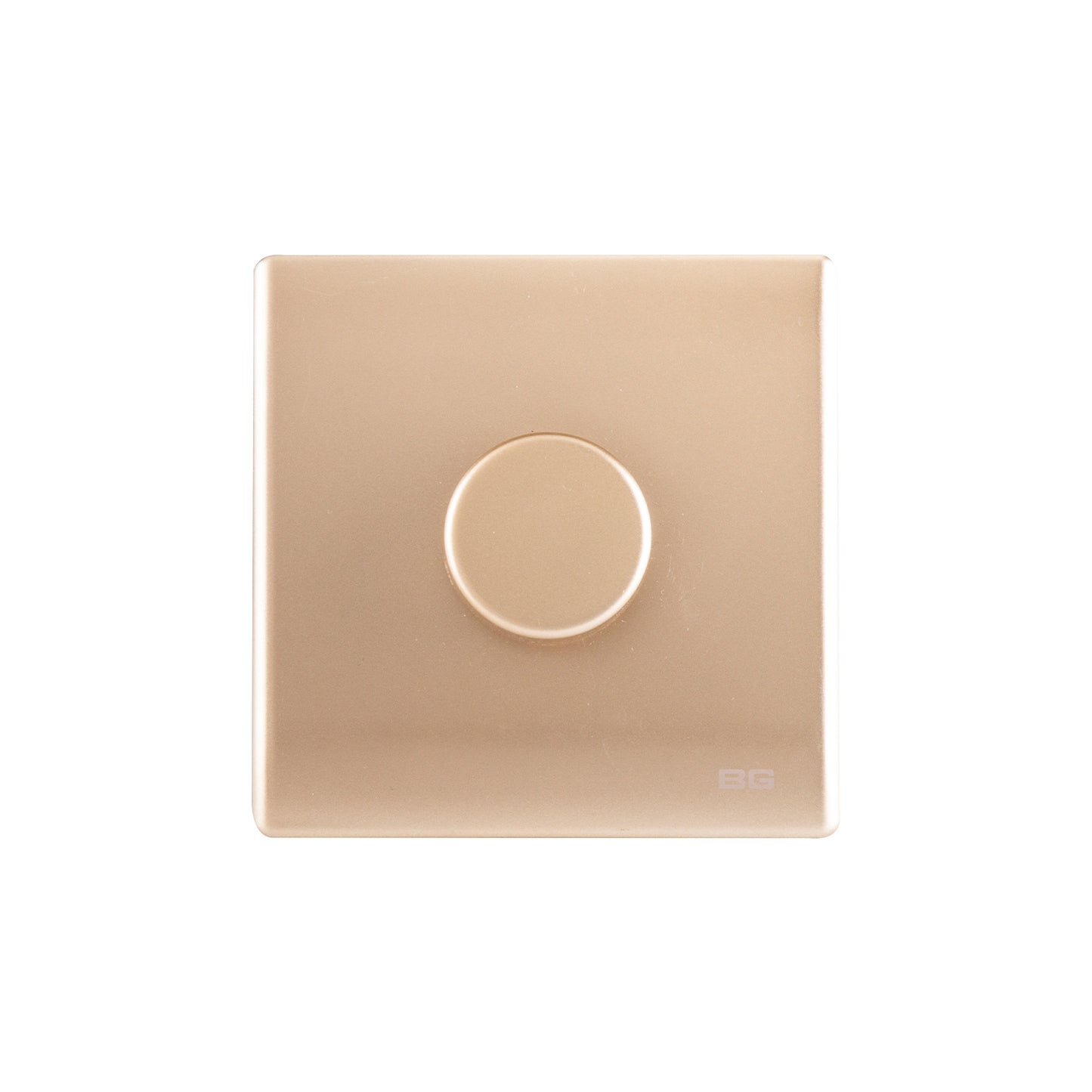

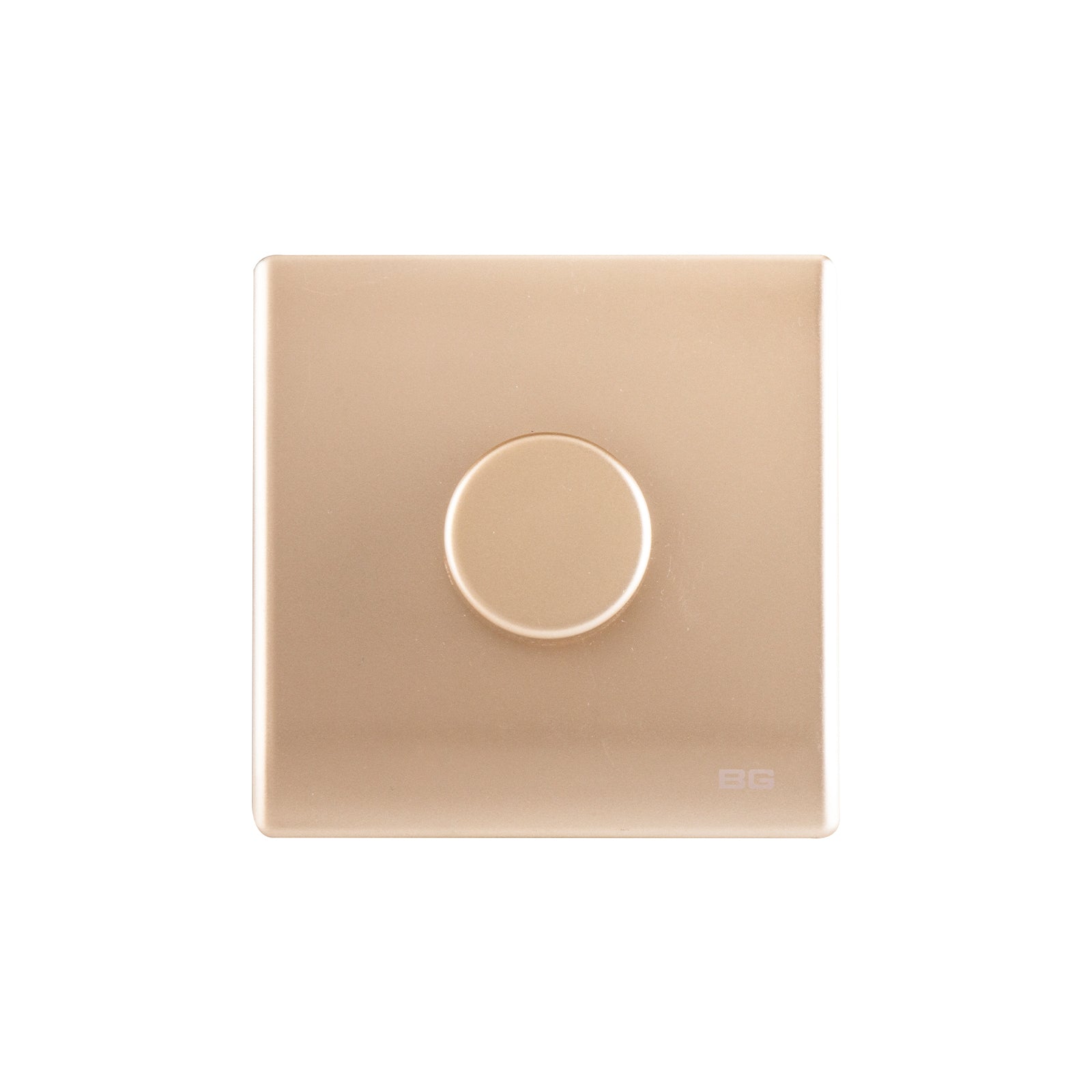

Take full control of your lighting with the British General PCCH81 Neo Slimline 400W Dimmer Switch. Finished in a stylish champagne tone and designed with a minimalist, screwless profile, this rotary dimmer combines modern aesthetics with advanced dimming technology. Ideal for adjusting lighting to match your mood while promoting energy efficiency, the PCCH81 is perfect for both residential and commercial interiors.

As part of the Neo Slimline range, it delivers high-end functionality with a sleek, contemporary appearance that fits seamlessly into any décor.

Key Features

400W Rated – Capable of handling a wide variety of lighting types

2-Way Dimming – Adjust light levels or use as a standard on/off switch

Trailing Edge Technology – Suitable for dimmable LEDs, CFLs, and traditional lighting

Soft Start Feature – Gradually brings lights to brightness in ~1 second, extending lamp life

Overload Protection – Auto-adjusts or powers off to prevent damage when overloaded

Silent Operation – No buzzing or humming when dimming

Flicker-Free Performance – Supports low wattage lamps for smooth dimming

Rotary Dimmer with Push On/Off – Simple and intuitive lighting control

Screwless Clip-On Design – Elegant slimline profile with concealed fixings

Easy Installation – Supplied with fixing screws and clear instructions

Specifications

Model: PCCH81

Finish: Champagne

Switch Type: Single Gang 2 Way Rotary Dimmer

Voltage: 200–250V AC

Mounting Box Depth: Minimum 25mm

Certified To: BS EN 60669-2-1

Load Ratings:

  Tungsten Lamp: 60–400W

  Halogen (Mains Voltage): 50–400W

  Halogen (Low Voltage 12V): 35–350W

  Dimmable LED: 5–50W

  Dimmable Compact Fluorescent (CFL): 10–100W

Type: Leading Edge

Warranty

Enjoy 25 Years Manufacturer’s Warranty from British General, ensuring reliability and long-lasting performance in your lighting setup.
