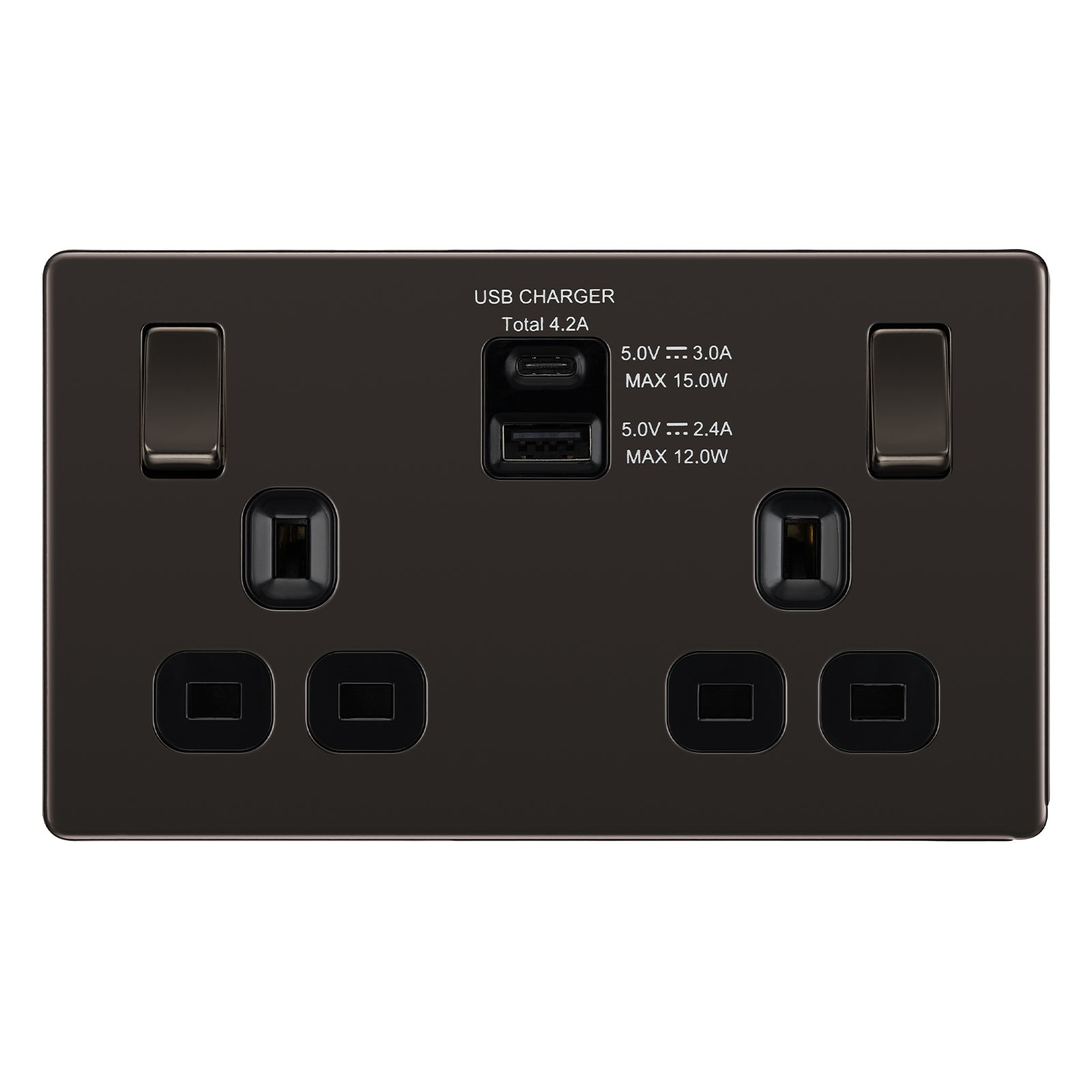

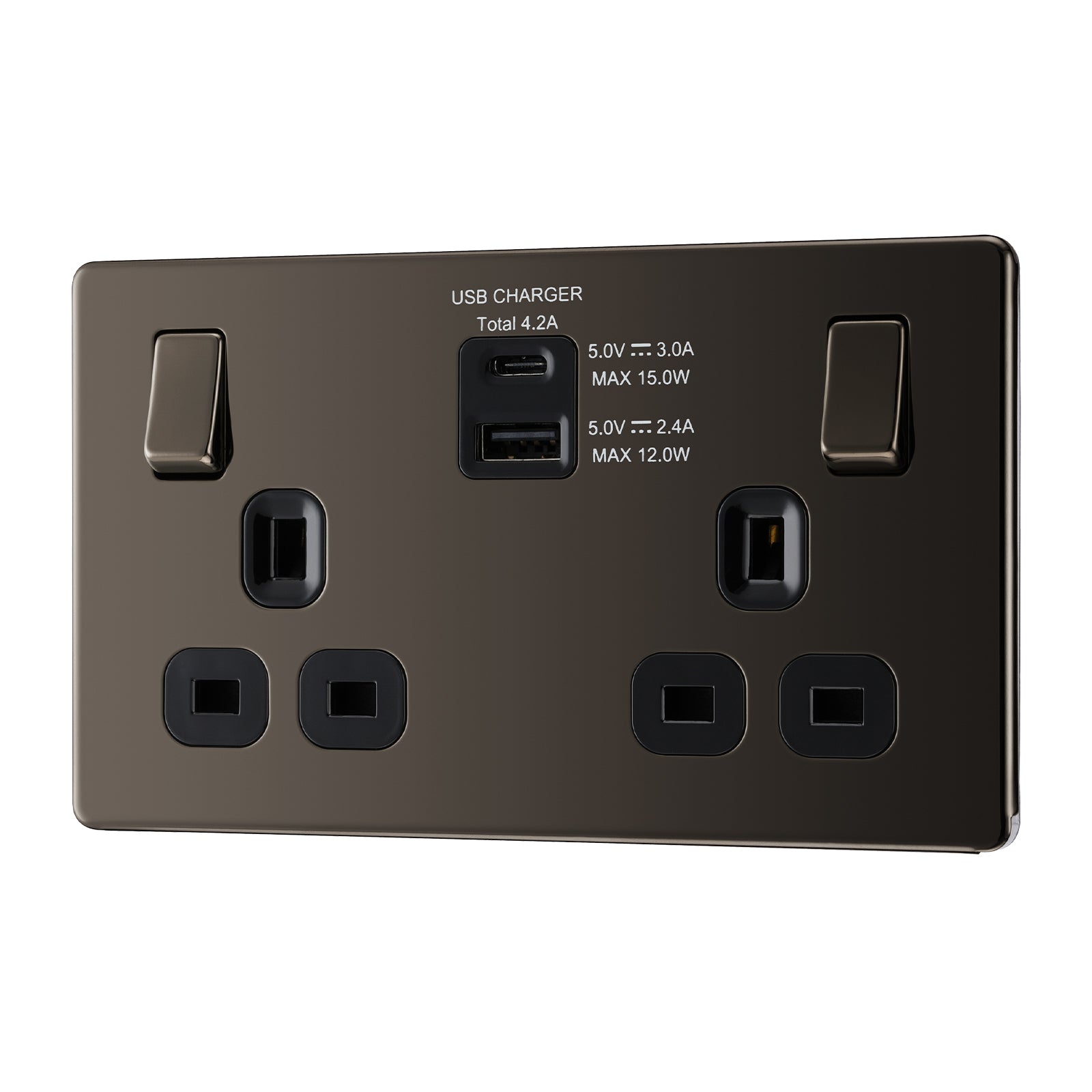

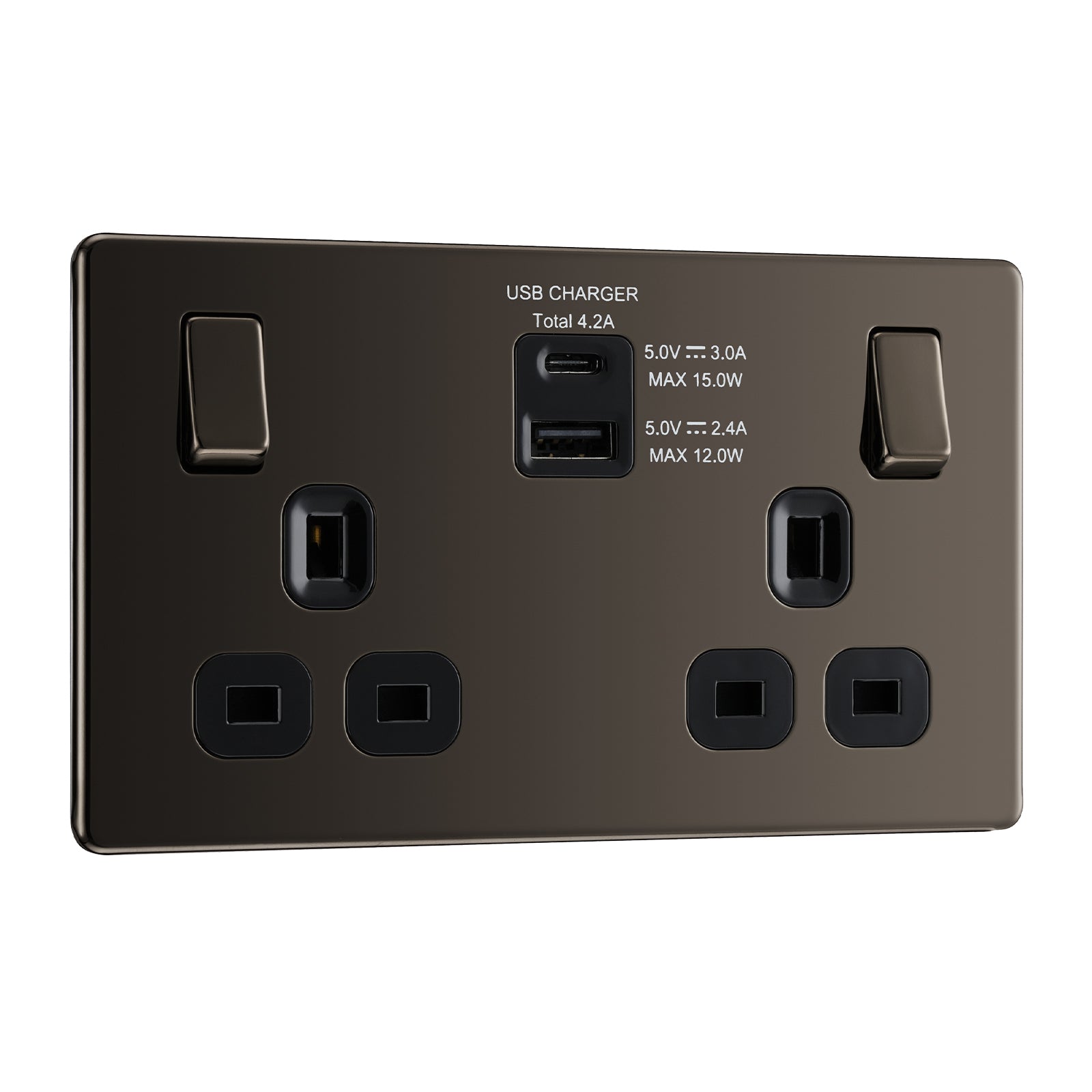

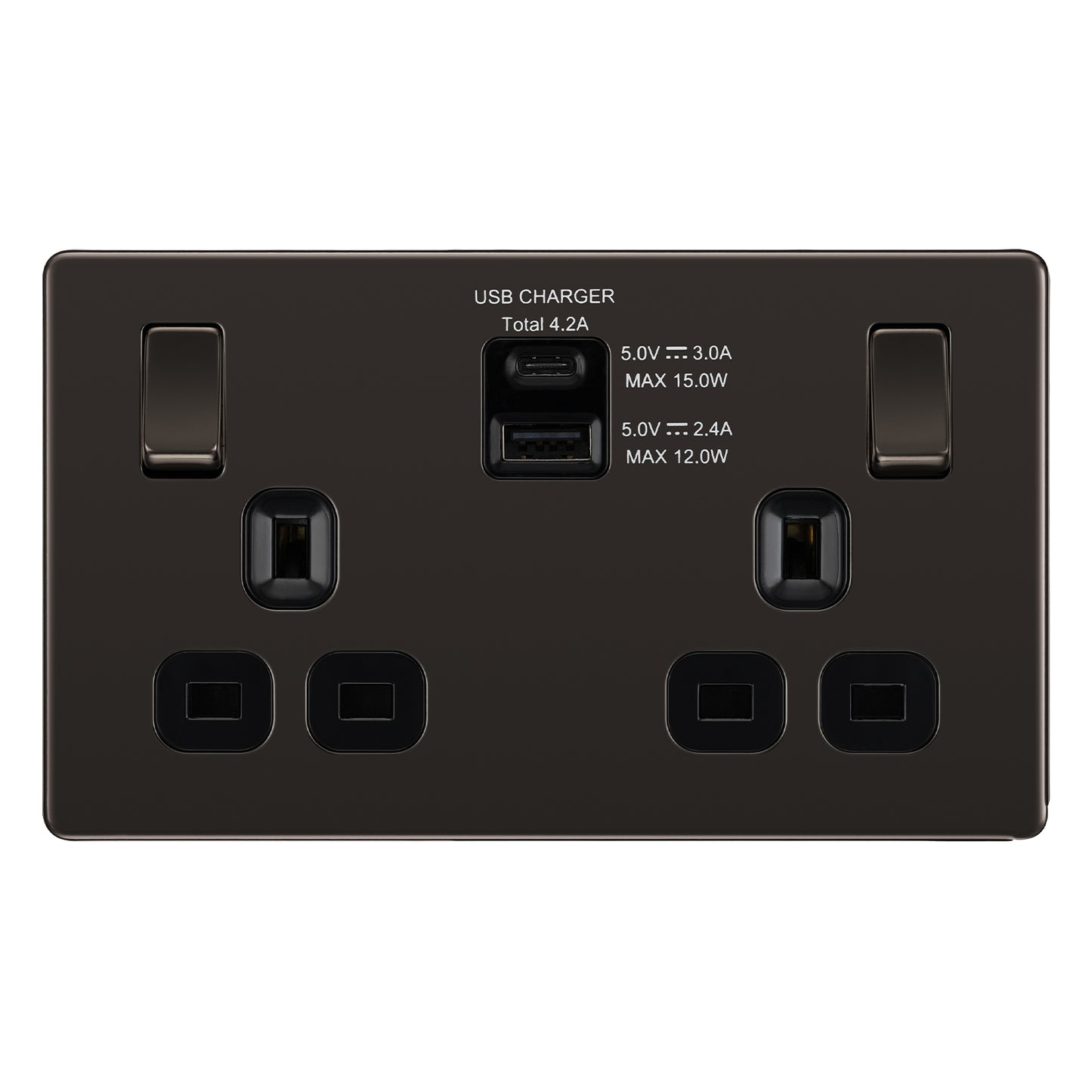

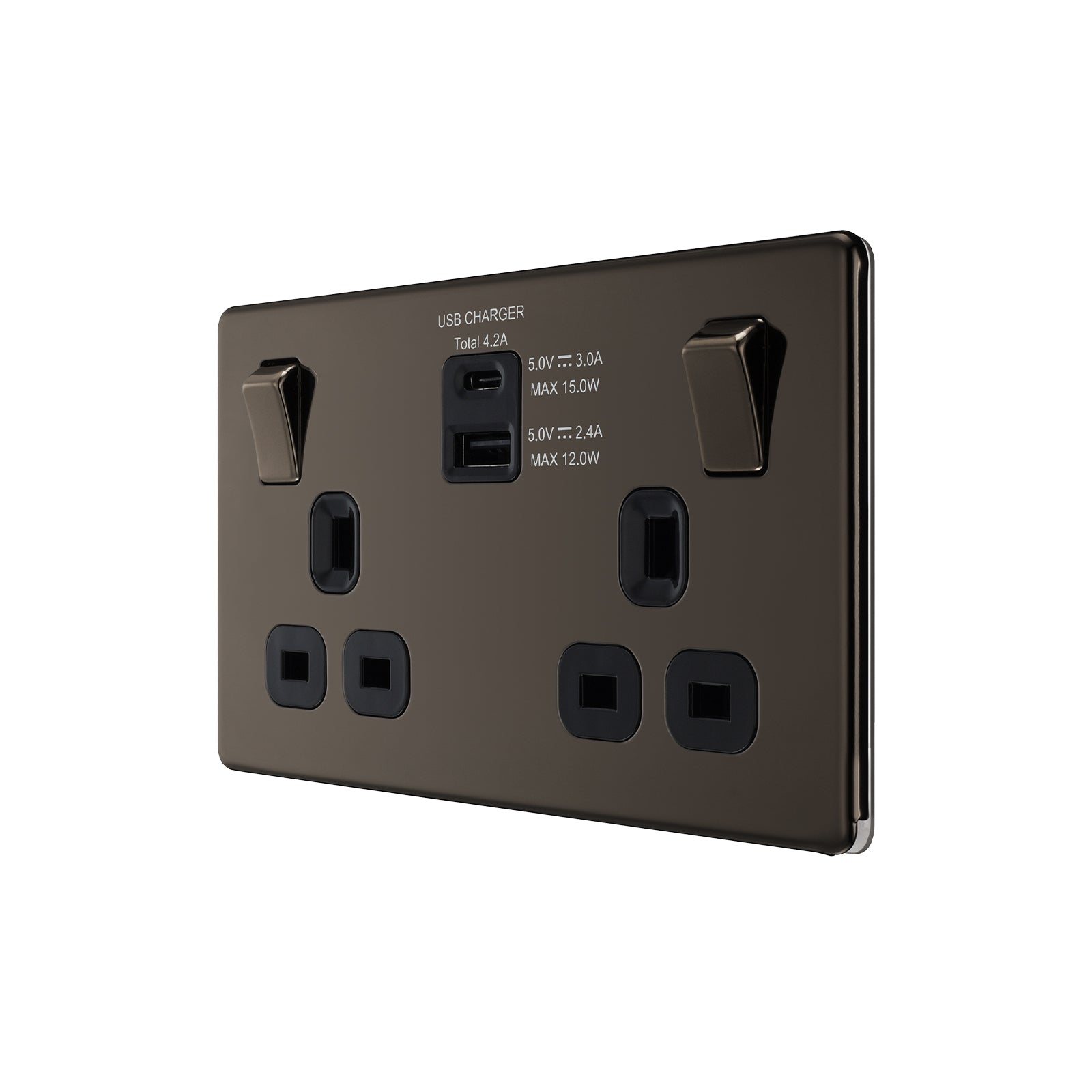

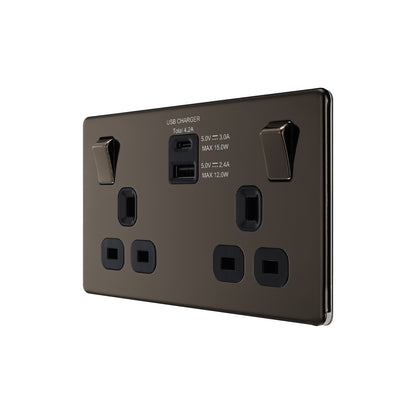

British General BG Flat Plate Double Gang USB Type-C Smart Charging Switched Socket (FBN22UACB)

Description

Power and fast-charge your devices at once without losing plug space. The British General FBN22UACB Double Gang Switched Socket features integrated USB-A and USB-C ports for ultra-fast, smart charging. Delivering up to 50% charge in just 30 minutes, this stylish black nickel socket is a modern upgrade for any home or office. Designed to fit a standard 25mm back box, it installs just like a regular socket—no adaptors, no hassle.

Key Features

13A Double Switched Socket with USB-A & USB-C

Fast Charge Technology: Delivers 50% charge in just 30 minutes

Smart Charging: Adjusts voltage automatically, prevents overcharging

PD & QC Protocols Supported: Optimized for modern smartphones, tablets, and more

Premium Finish: Slimline black nickel metal flatplate with softly rounded edges

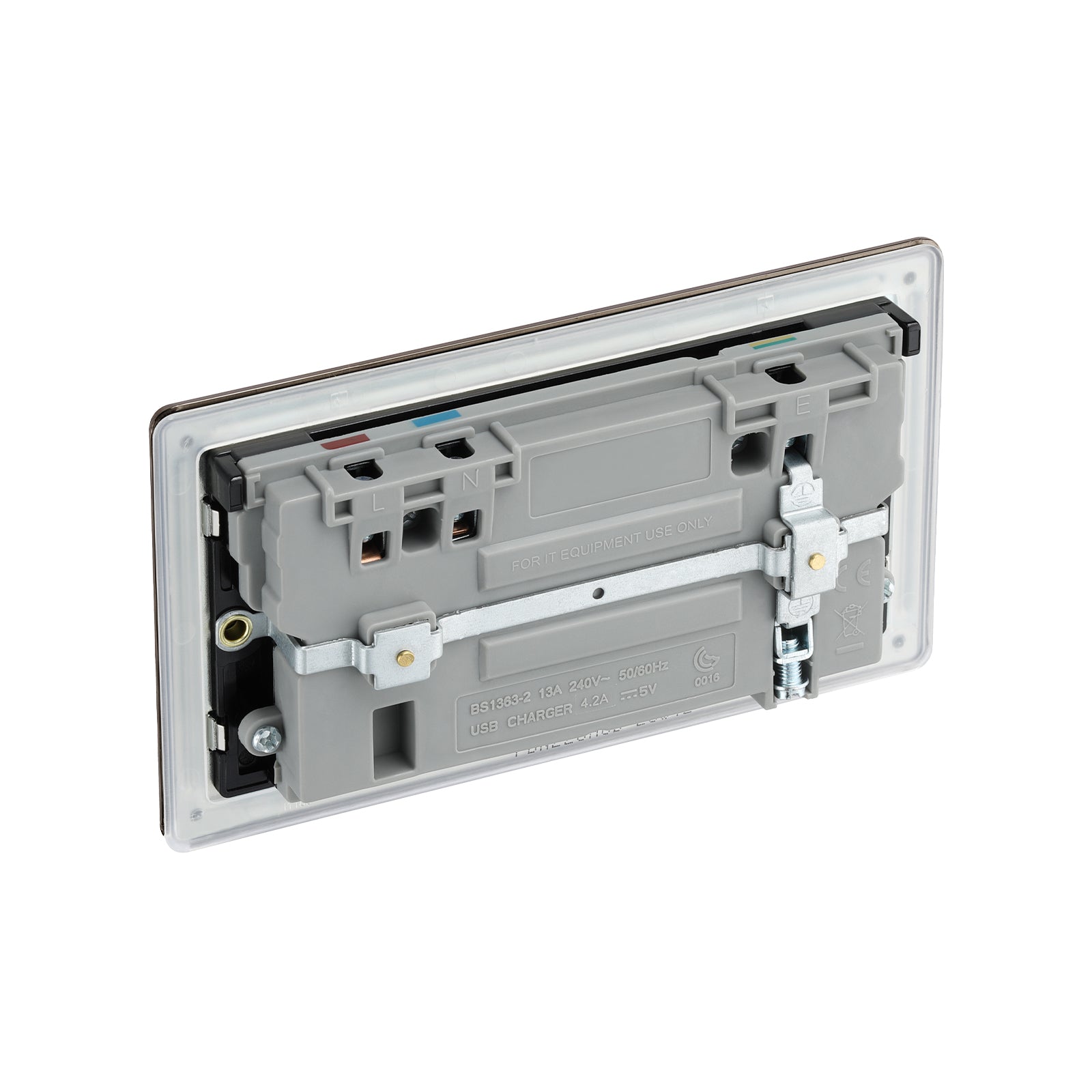

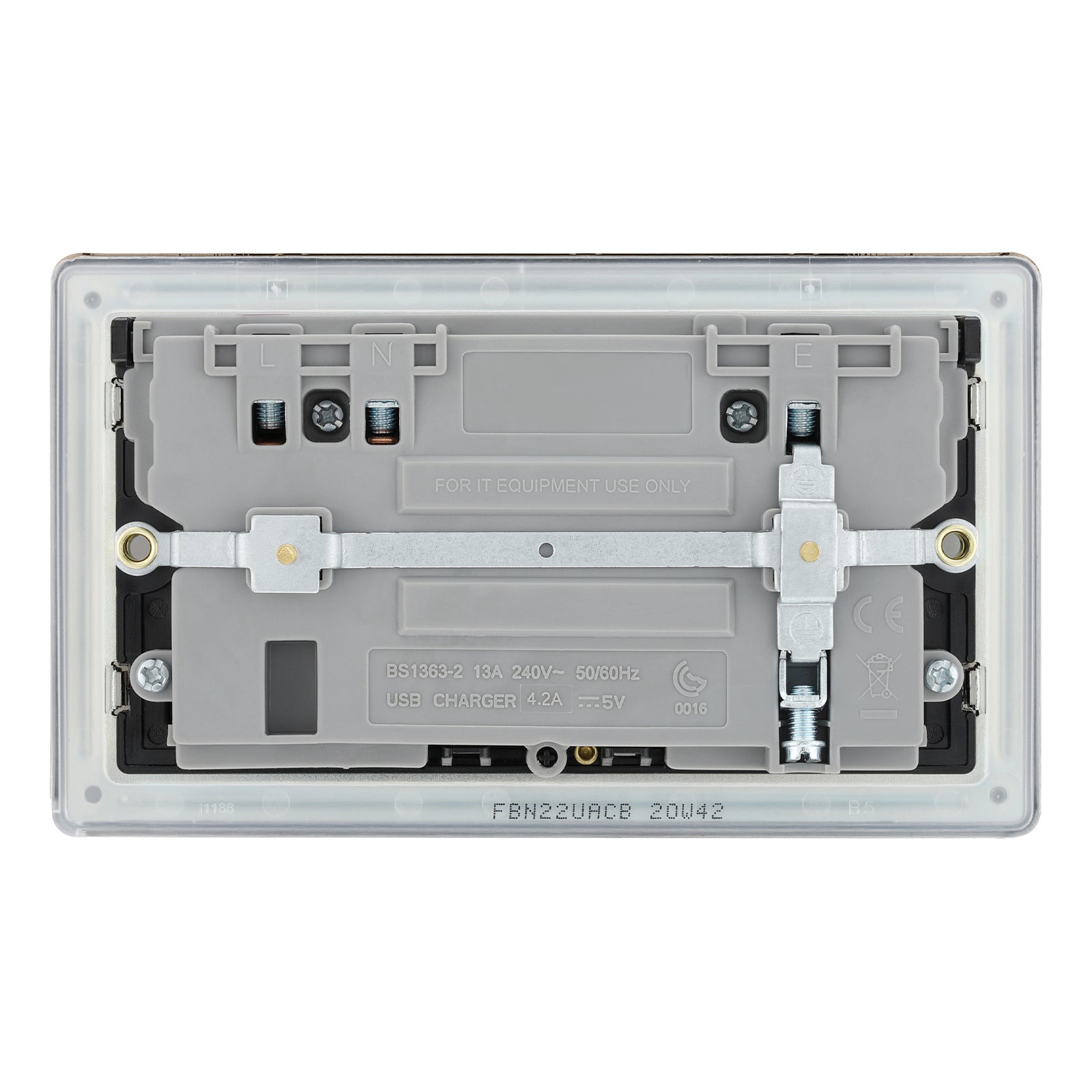

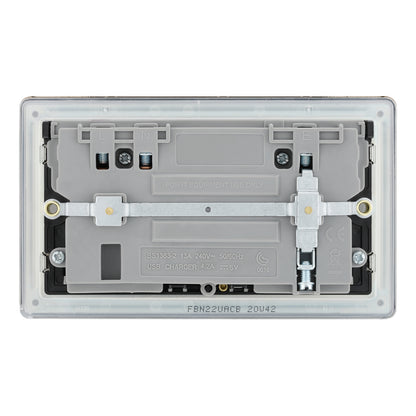

Quick & Easy Install: Fits standard 25mm back box with angled in-line terminals

Safety First: USB overcurrent/overvoltage, over-temperature & short circuit protection

Certified Standards: Complies with BS 1363-2:2016+A1:2018 and more

ASTA Approved: Licence No. 1182

Technical Specifications

Socket Electrical

  Rated Current: 13A, 240V ~

  Switch Type: Single Pole

  Contact Gap: ≥3.0mm

  Terminal Capacity (L & N): 3 x 2.5mm², 3 x 4.0mm², 2 x 6.0mm²

USB Outputs

USB-C Output Power:
  5V/3A, 9V/2.4A, 12V/1.5A, 15V/1.4A (Max 15.0W)
  Protocols: PD3.0, QC3.0, Apple 2.4A, Samsung AFC, Huawei FCP, BC1.2

USB-A Output Power:
  5V/3A, 9V/2.4A, 12V/1.5A (Max 15.0W)
  Protocols: QC3.0, Apple 2.4A, Samsung AFC, Huawei FCP, BC1.2

If Both Ports Are Used: USB-A and USB-C outputs adjust to 12W max each (5V/2.4A)

Charging & Protection

  Input Voltage Range: 200–240V AC ±10%

  Input Current: Max 1A

  Input Frequency: 50/60Hz

  Turn-On Delay: ≤1s

  Input Protection: 2A Fuse

  Overcurrent & Overvoltage Protection: Yes

  Over-Temperature Protection: Yes

  Auto Recovery: Yes (after shutdown)

  Standby Power: <75mW

Installation

  Mounting Box Depth (Min): 25mm

  Fixing Centres: 120.6mm

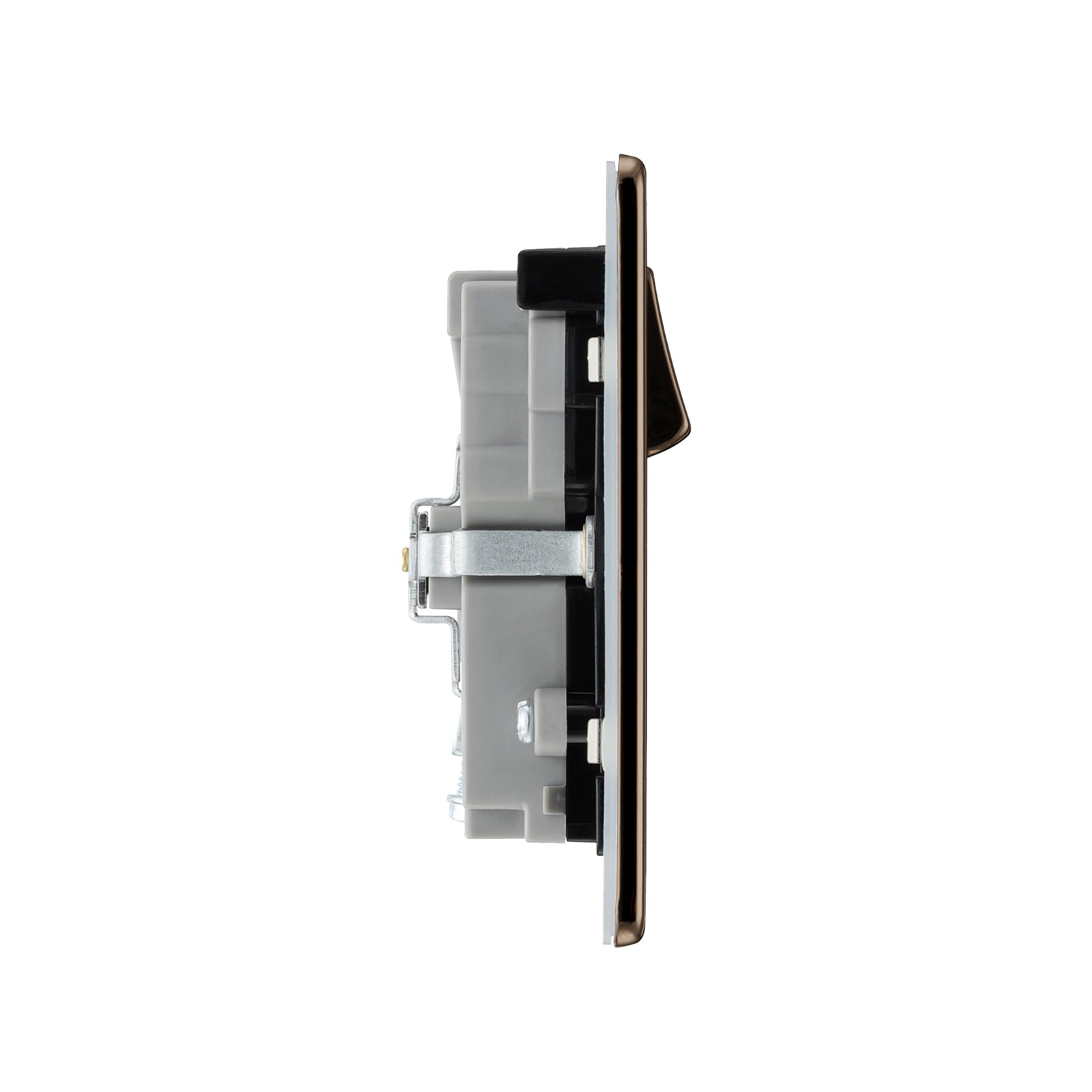

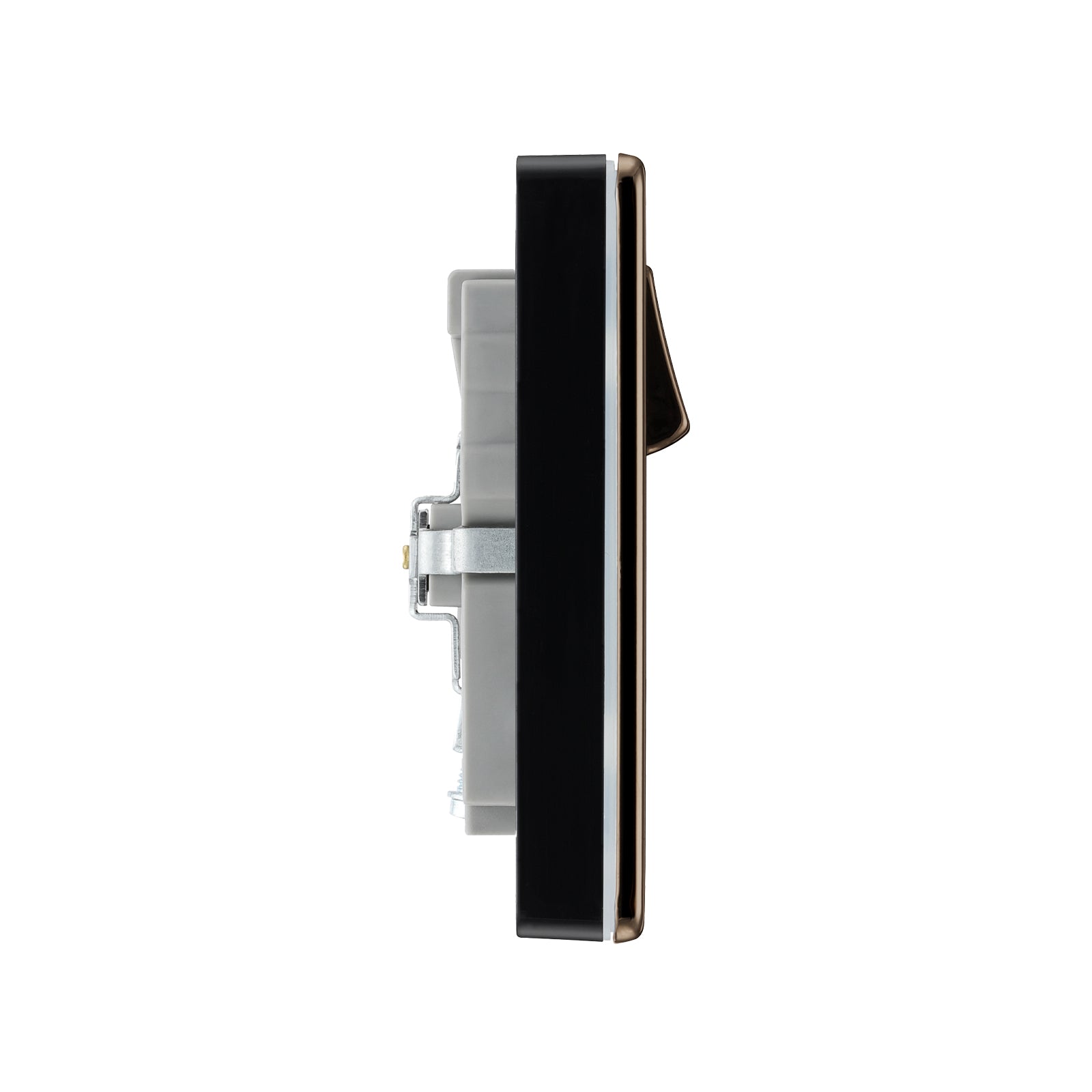

  Dimensions (H x W x D): 8.6cm x 14.7cm x 3.2cm

Certifications & Compliance

Standards:
  BS 1363-2:2016+A1:2018
  BS EN 62368-1:2020+A11:2020
  EN 55032, EN61000-6-1:2019, EN61000-6-3:2021

ASTA Licence: No. 1182

RoHS / WEEE Compliant: Yes

EMI & HI-POT Tested: <5mA / 4000V / 60S

Warranty

10-Year Manufacturer’s Warranty
Built to last, backed by a decade of trusted performance.
