Description

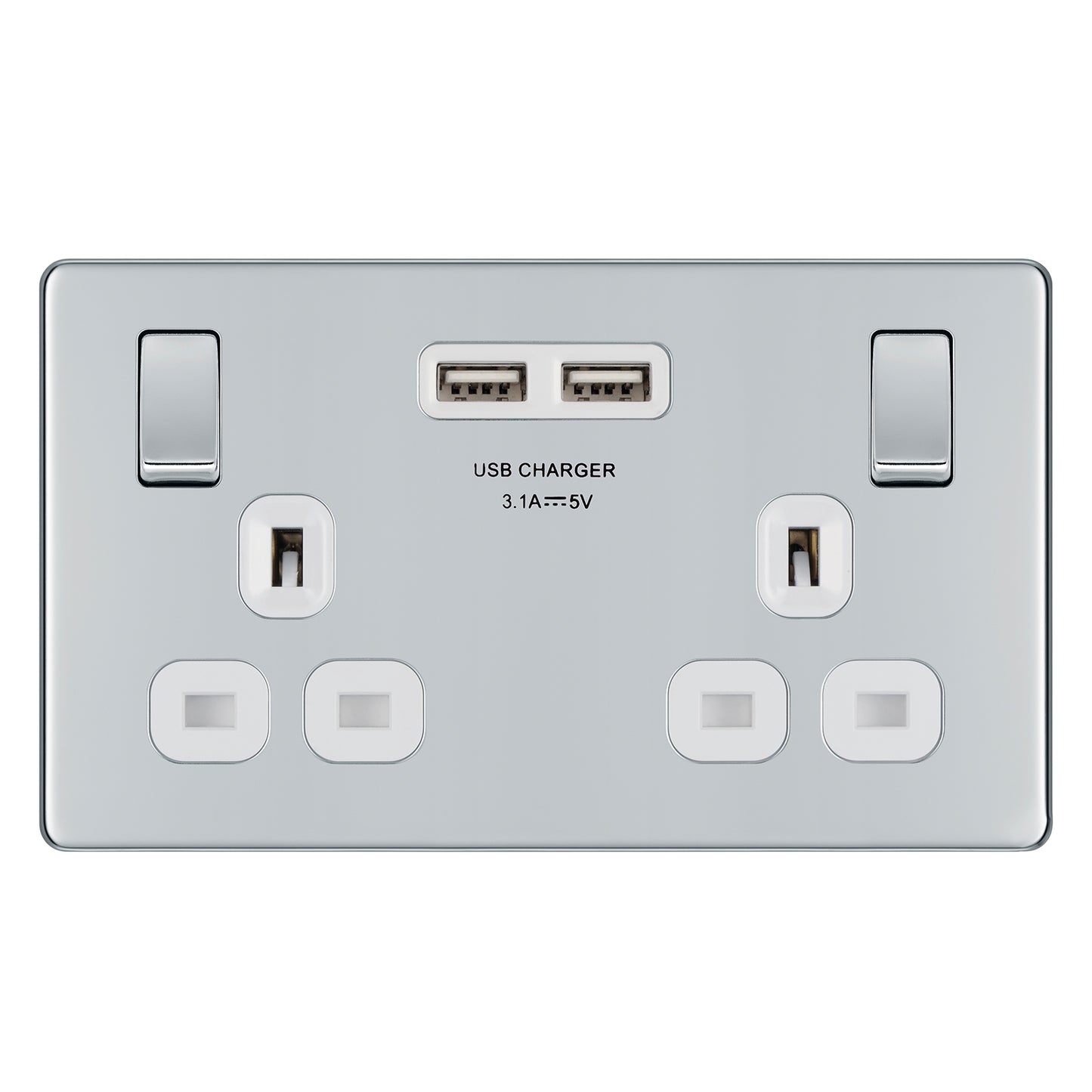

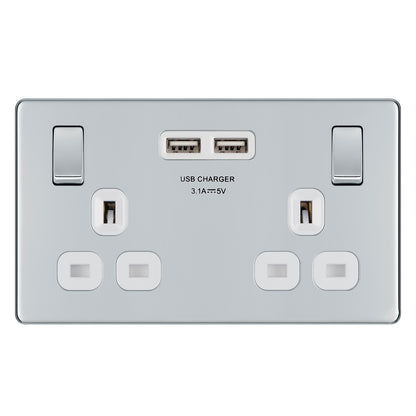

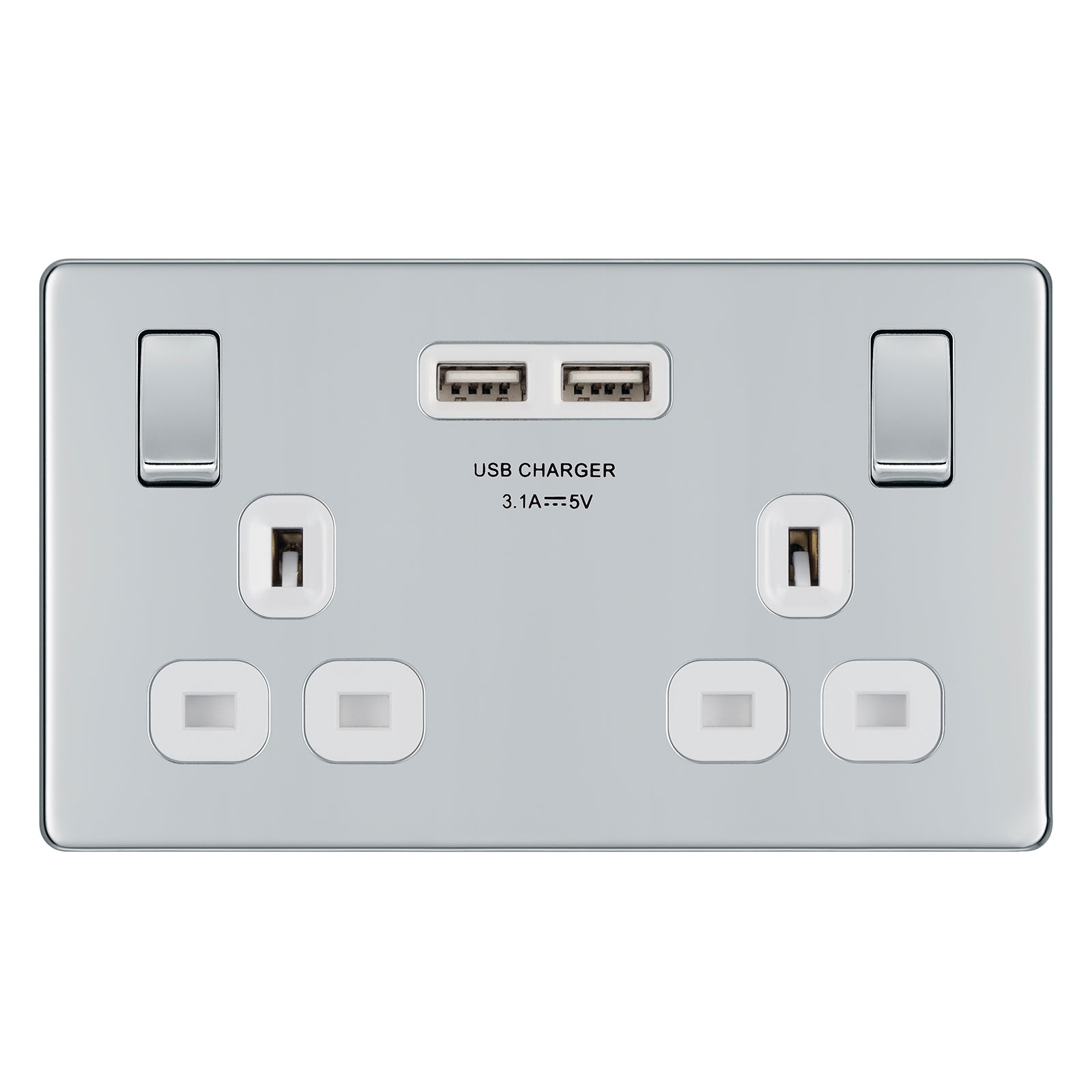

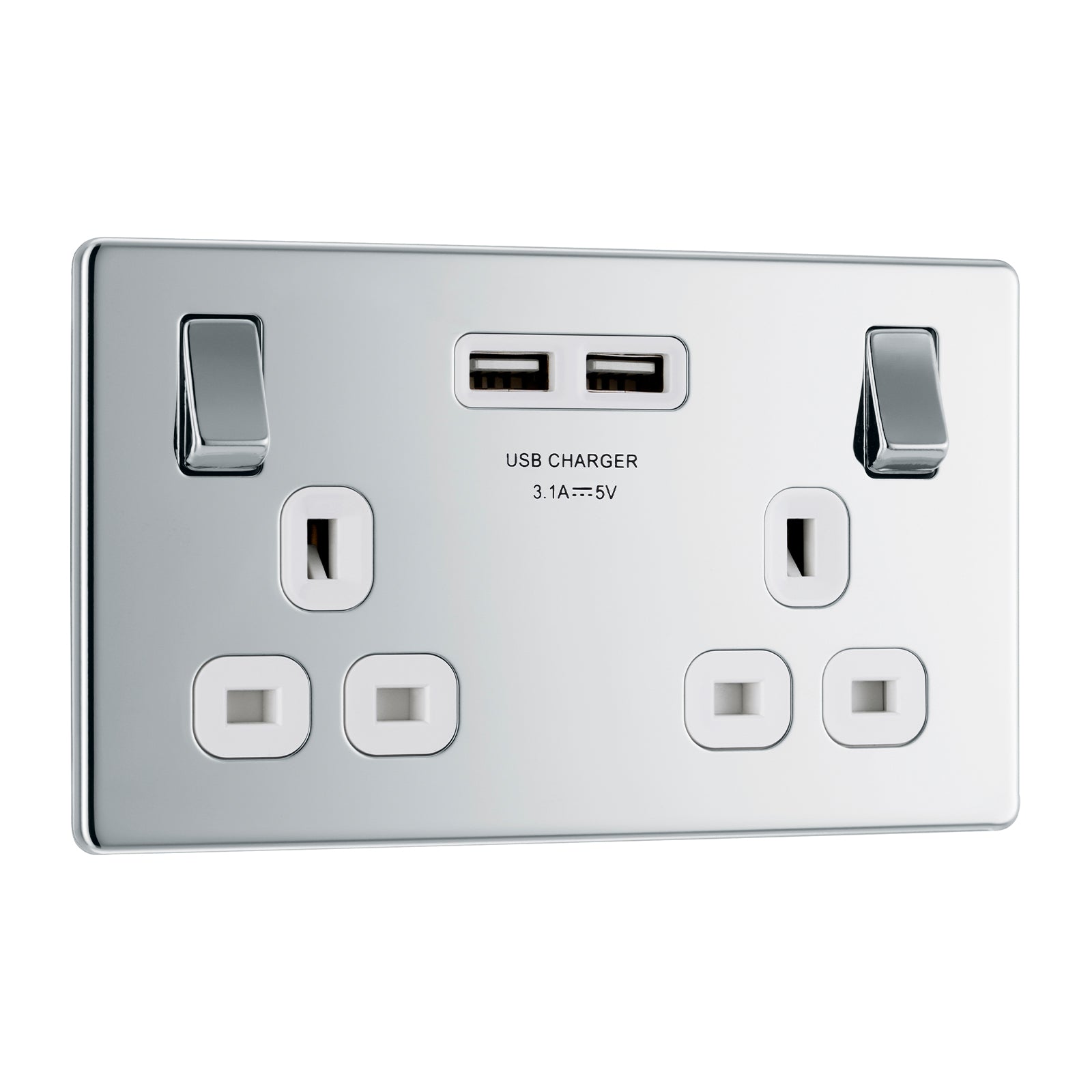

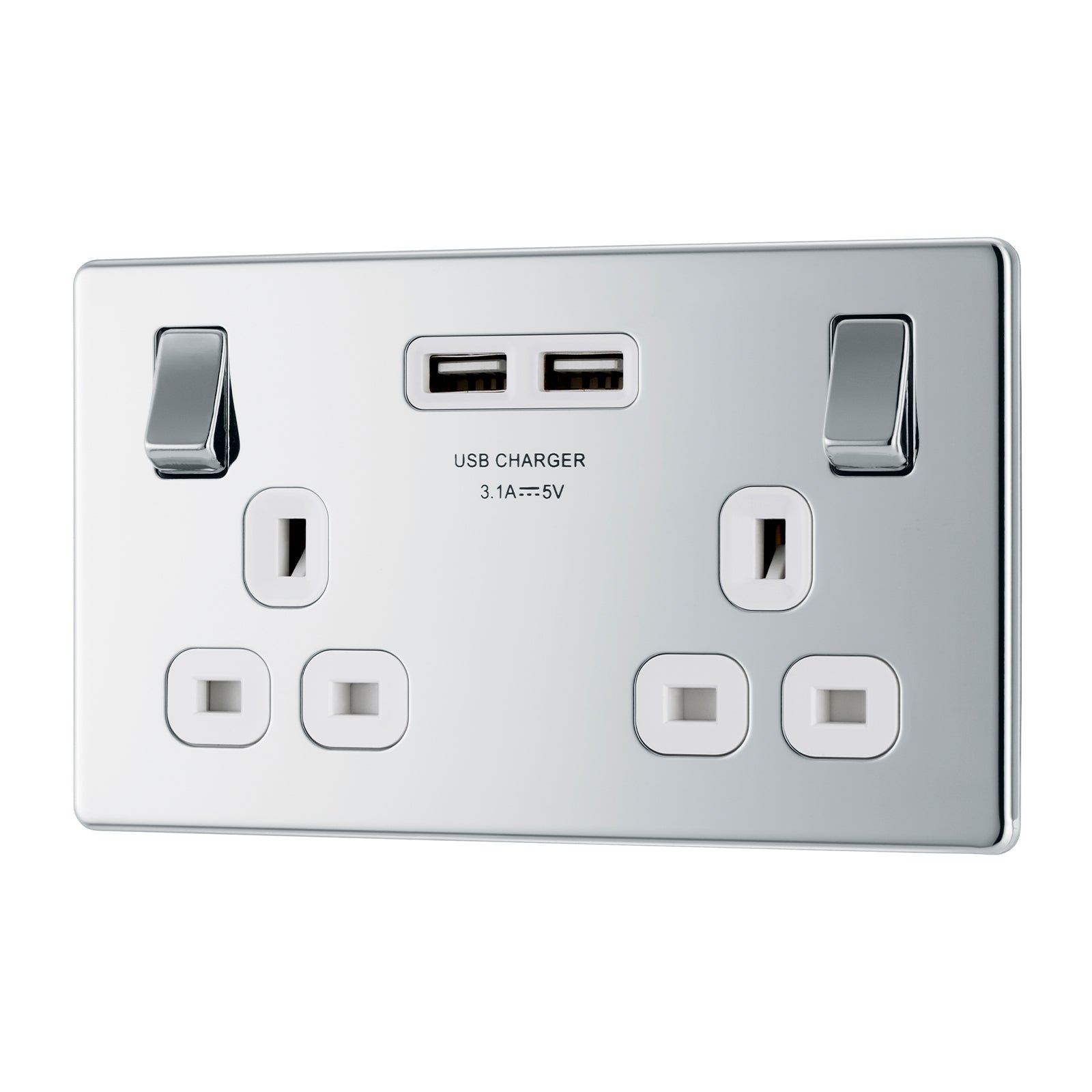

Charge your devices while keeping sockets free with the British General FPC22U3W-01 Double Socket featuring built-in USB charging. With its brushed steel, anti-fingerprint finish and slimline screwless design, this 13A socket is perfect for both contemporary homes and commercial spaces. It includes two Type A USB ports with smart charging technology—automatically detecting connected devices and adjusting the charge accordingly for safety and efficiency.
Key Features
Slimline Screwless Flatplate: Sleek, brushed steel finish with clip-on/off front plate
Dual USB Charging Ports: Two Type A USB ports with 3.1A total output (5V shared)
Smart USB Technology: Auto-detects devices, enters standby mode when fully charged, and protects against overload
Free Up Sockets: Charge your mobile phones, tablets, cameras, and more while still using standard plugs
Anti-Fingerprint Lacquer: Keeps the finish looking clean and smudge-free

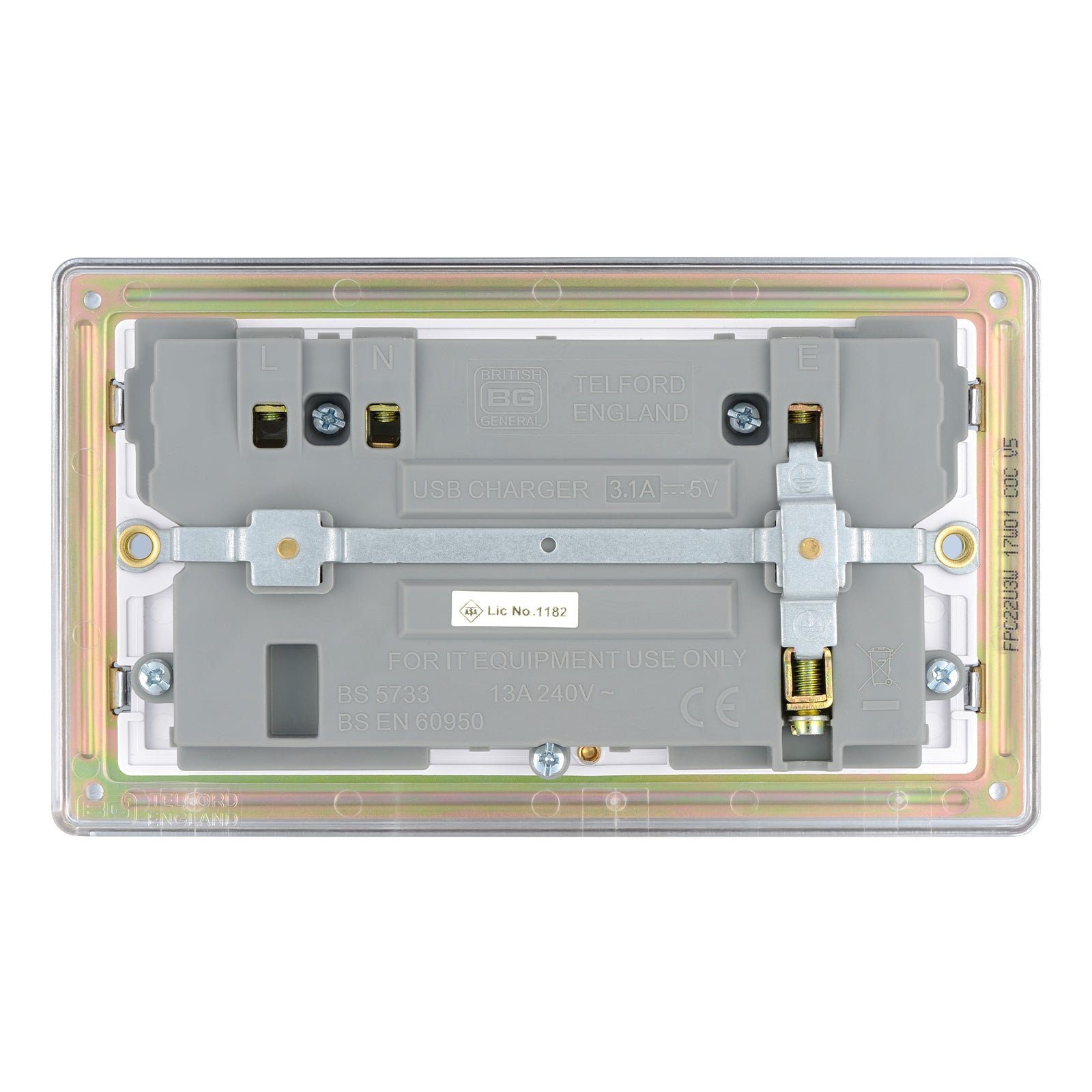

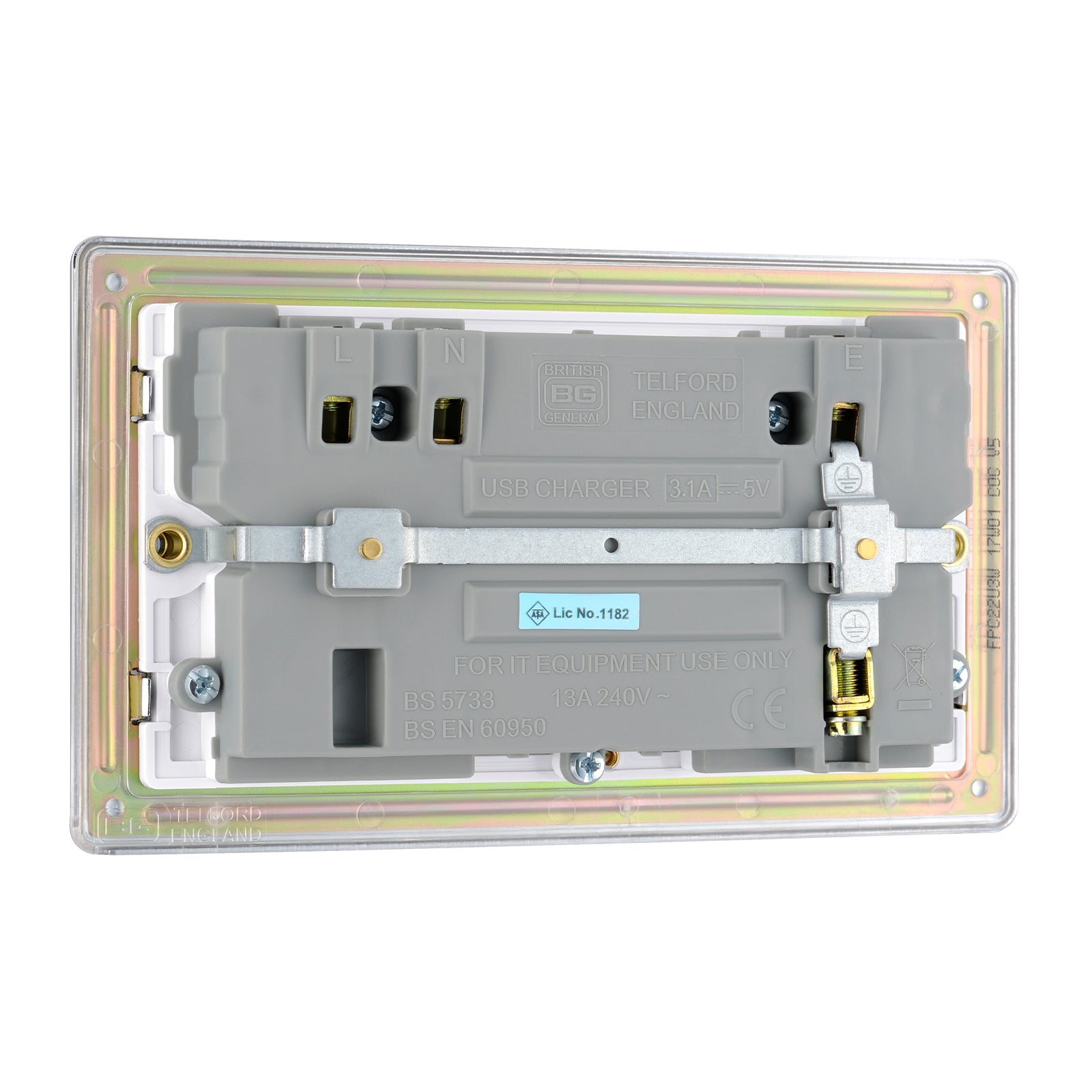

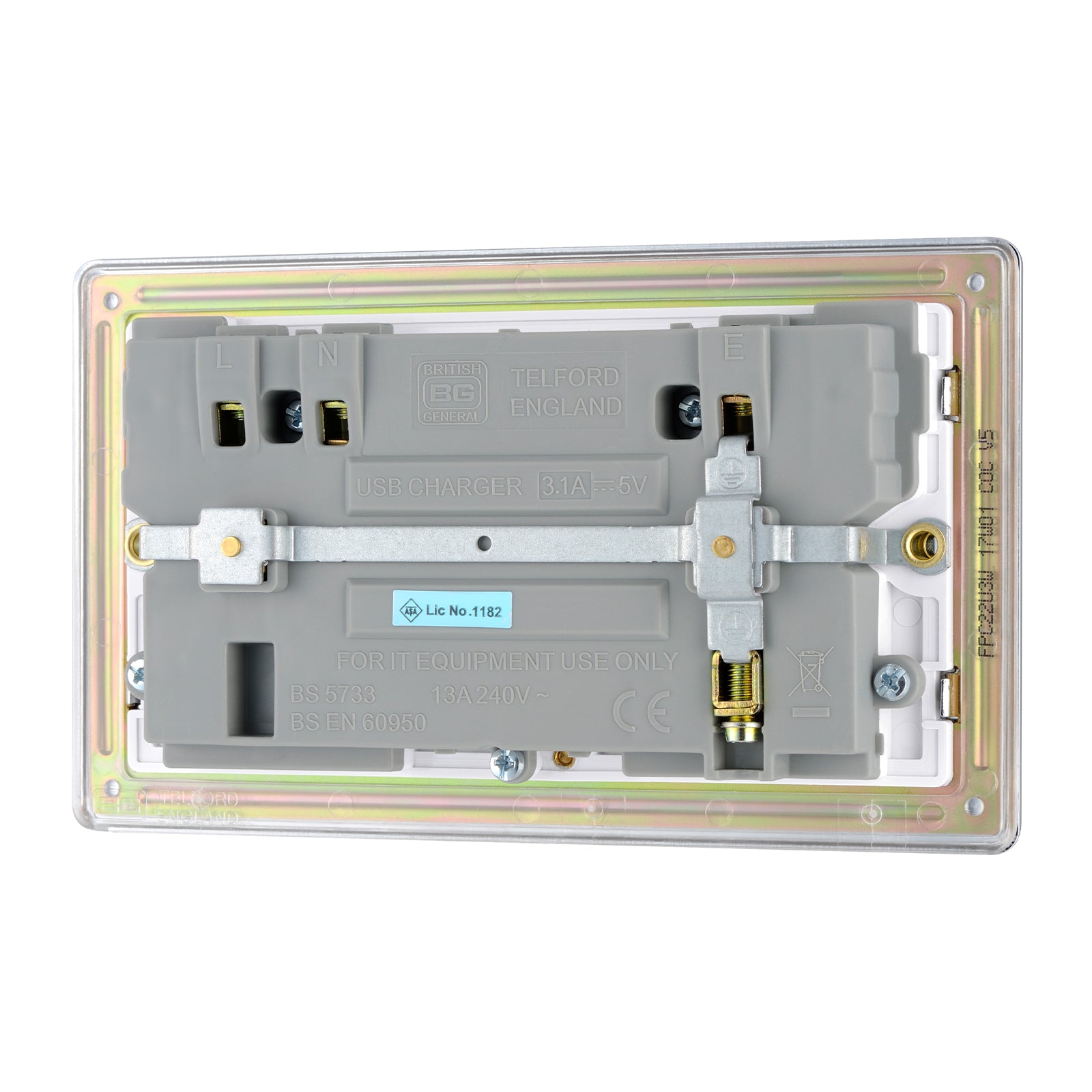

Angled, Colour-Coded Terminals: Easier wiring and installation with captive terminal screws
Moisture Control Gasket: Helps prevent tarnishing from new plaster
Certified Safety: BS 5733 & BS EN 60930 compliant, ASTA Approved
Technical Specifications
Model: FPC22U3W-01
Finish: Brushed Steel with anti-fingerprint lacquer
Socket Type: 13A Double Socket with 2 USB Type A ports
Switch Type: Single Pole
Rating: 13A, 240V
USB Output: 5V, 3.1A (shared across both ports)
Output Tolerance: <5%
Stand-by Power: <75mW
USB Overcurrent Protection: ≤3.60A
Terminal Capacity – Live & Neutral: 3 x 2.5mm², 3 x 4.0mm², 2 x 6.0mm²
Contact Gap: ≥3.0mm
Mounting Box Depth (Min): 25mm
Fixing Centres: 120.6mm
Dimensions (L x W x D): 8.6cm x 14.6cm x 3.3cm
Standard(s): BS 5733, BS EN 60930, ASTA Licence No. 1182
RoHS / WEEE Compliance: Yes
Warranty
10-Year Manufacturer’s Warranty
Engineered for durability and backed by British General’s 10-year guarantee.
