Product Description:

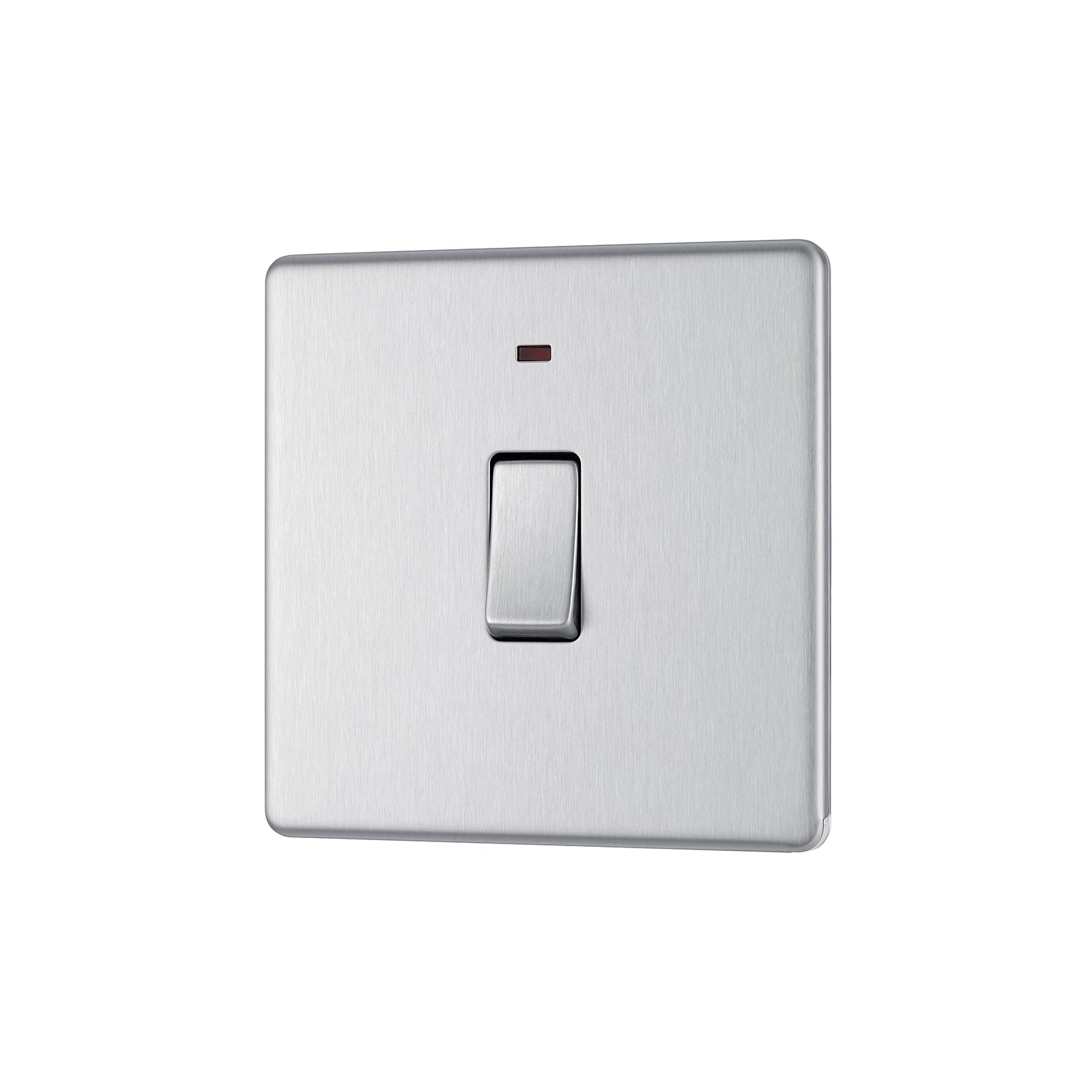

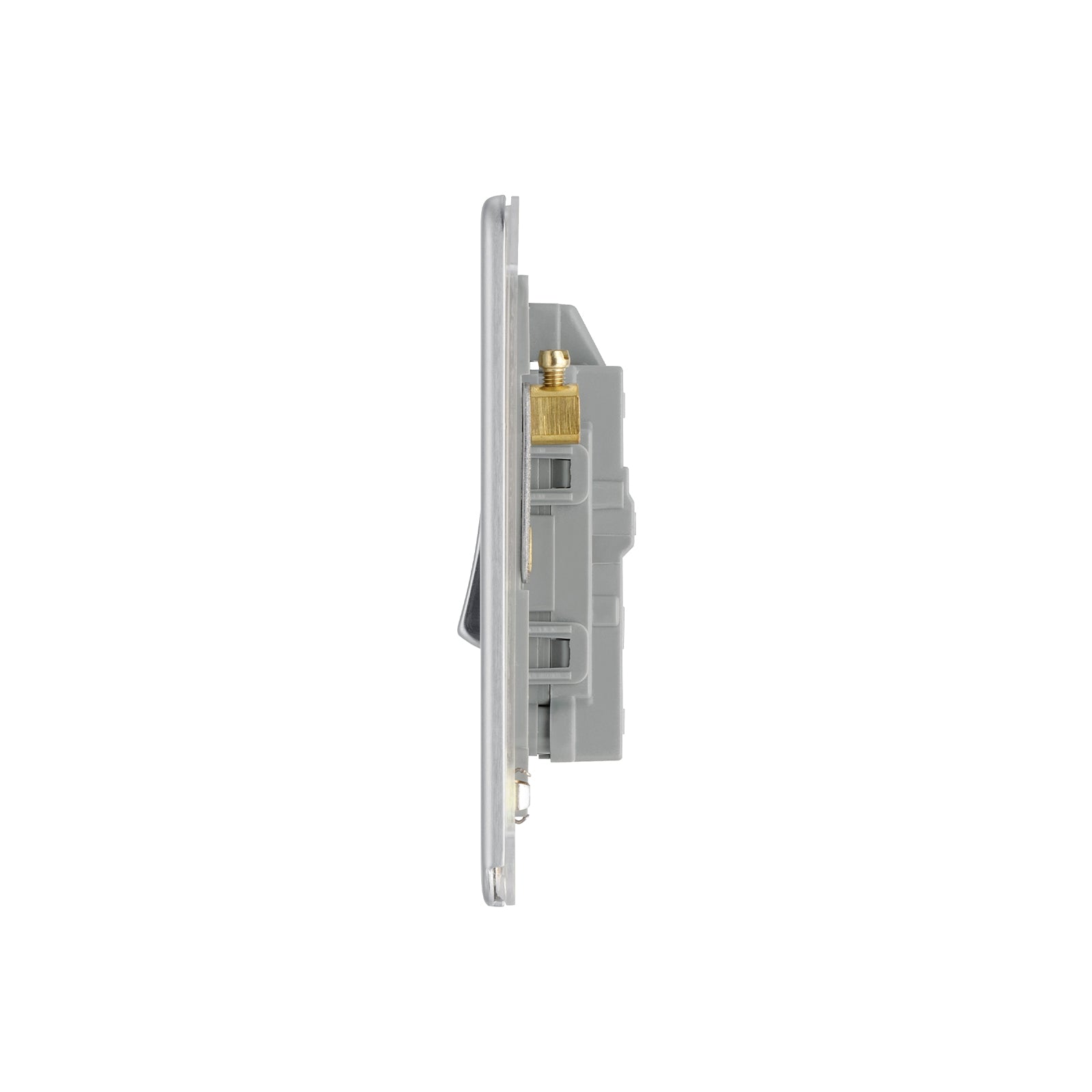

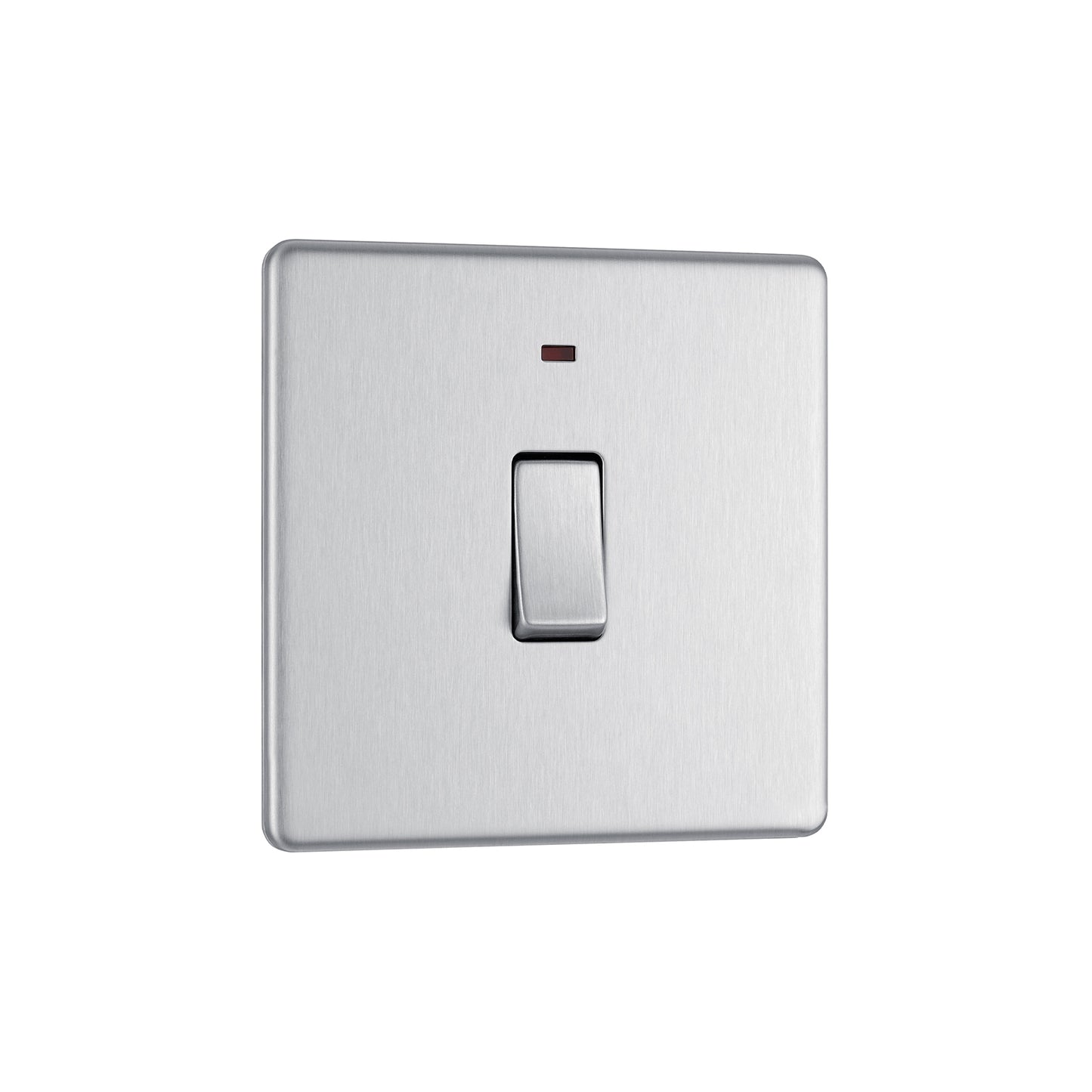

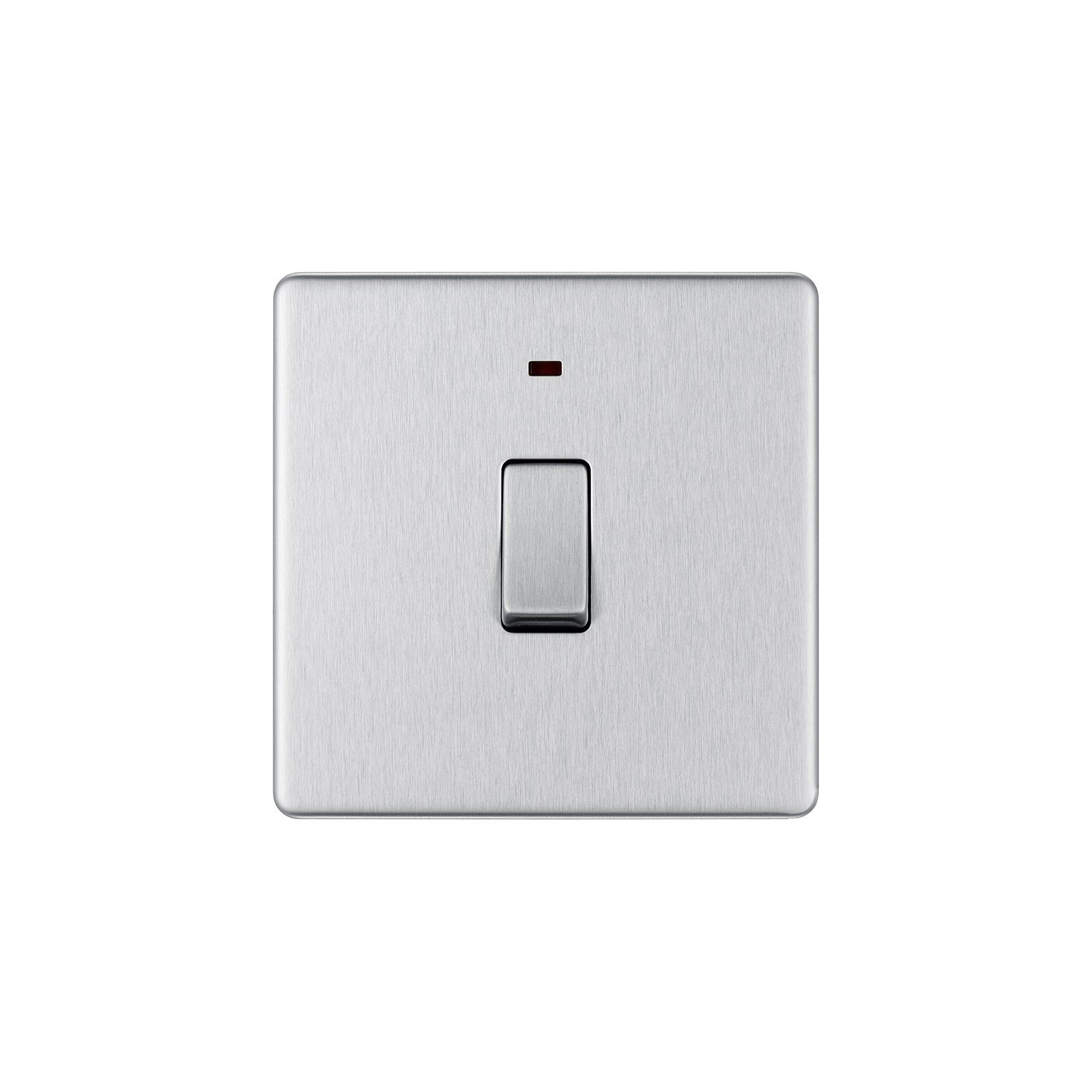

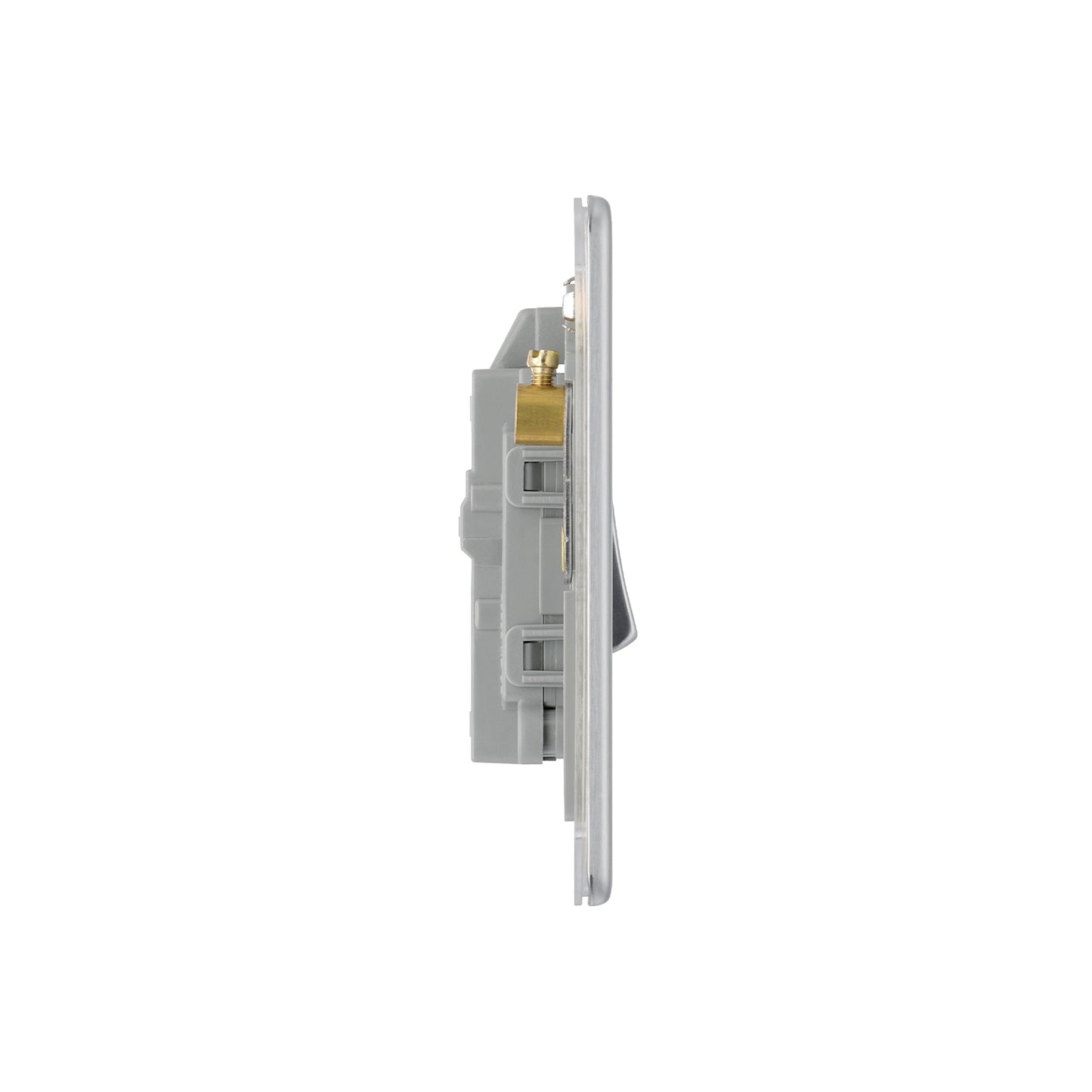

The British General FBS31 20A Double Pole Switch with integrated power indicator combines functionality with a sleek, modern design. Finished in brushed steel with an anti-fingerprint lacquer, this switch features a clip-on screwless flatplate that fits flush against the wall—ideal for contemporary interiors in both domestic and commercial environments.
This switch is perfect for controlling fixed appliances such as water heaters, central heating boilers, and refrigerators. The double pole mechanism ensures safer isolation, while moisture protection, colour-coded terminals, and captive screws make installation quick and secure.
Features:
20A Double Pole Switch: Suitable for high-powered fixed appliances like water heaters and boilers.
Integrated Power Indicator: Flush LED neon indicator shows when the switch is active.
Modern Screwless Design: Slim profile under 5mm, Rounded edges, Clip-on/off front plate with anti-fingerprint lacquer
Moisture-Control Gasket: Prevents tarnishing from fresh plaster and damp environments.

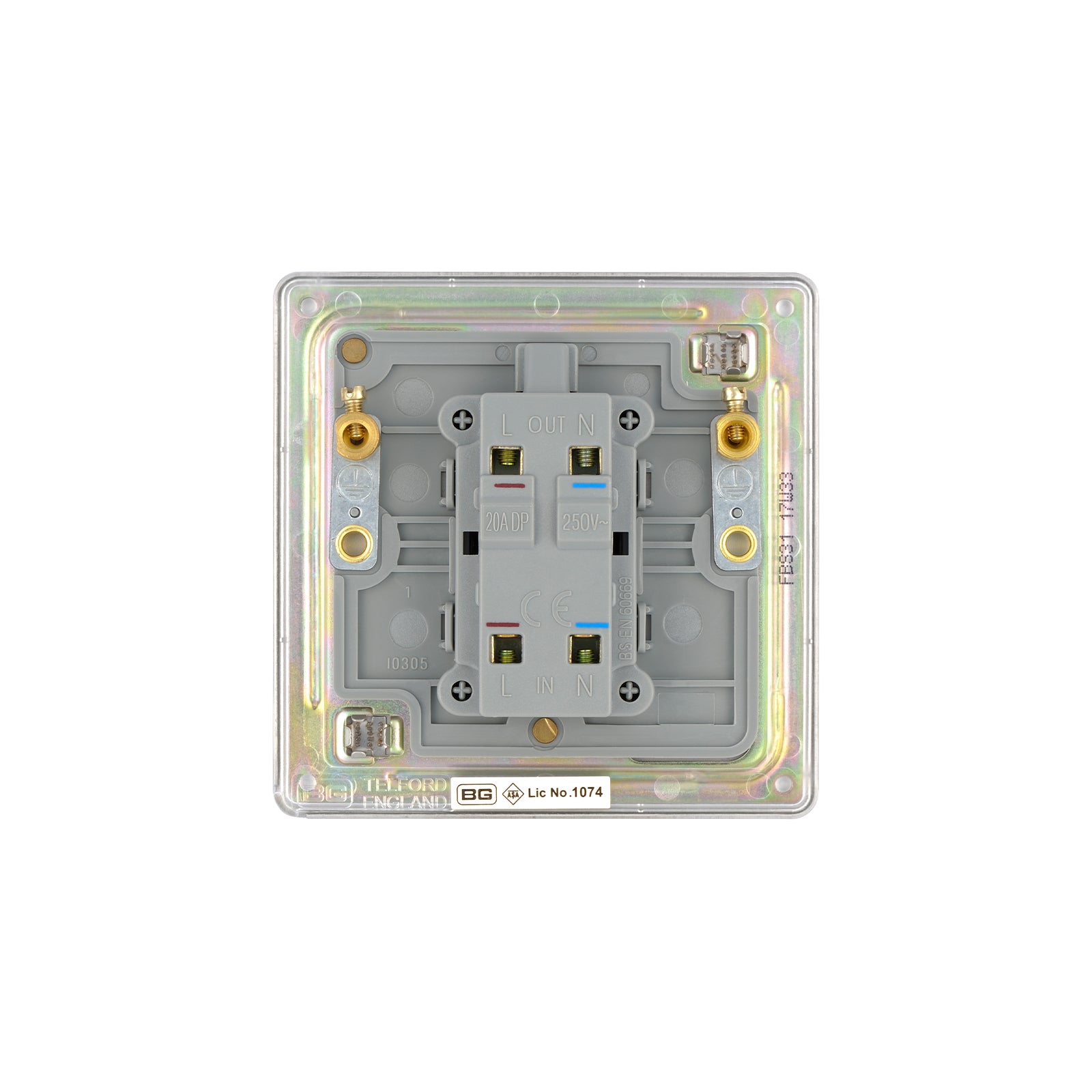

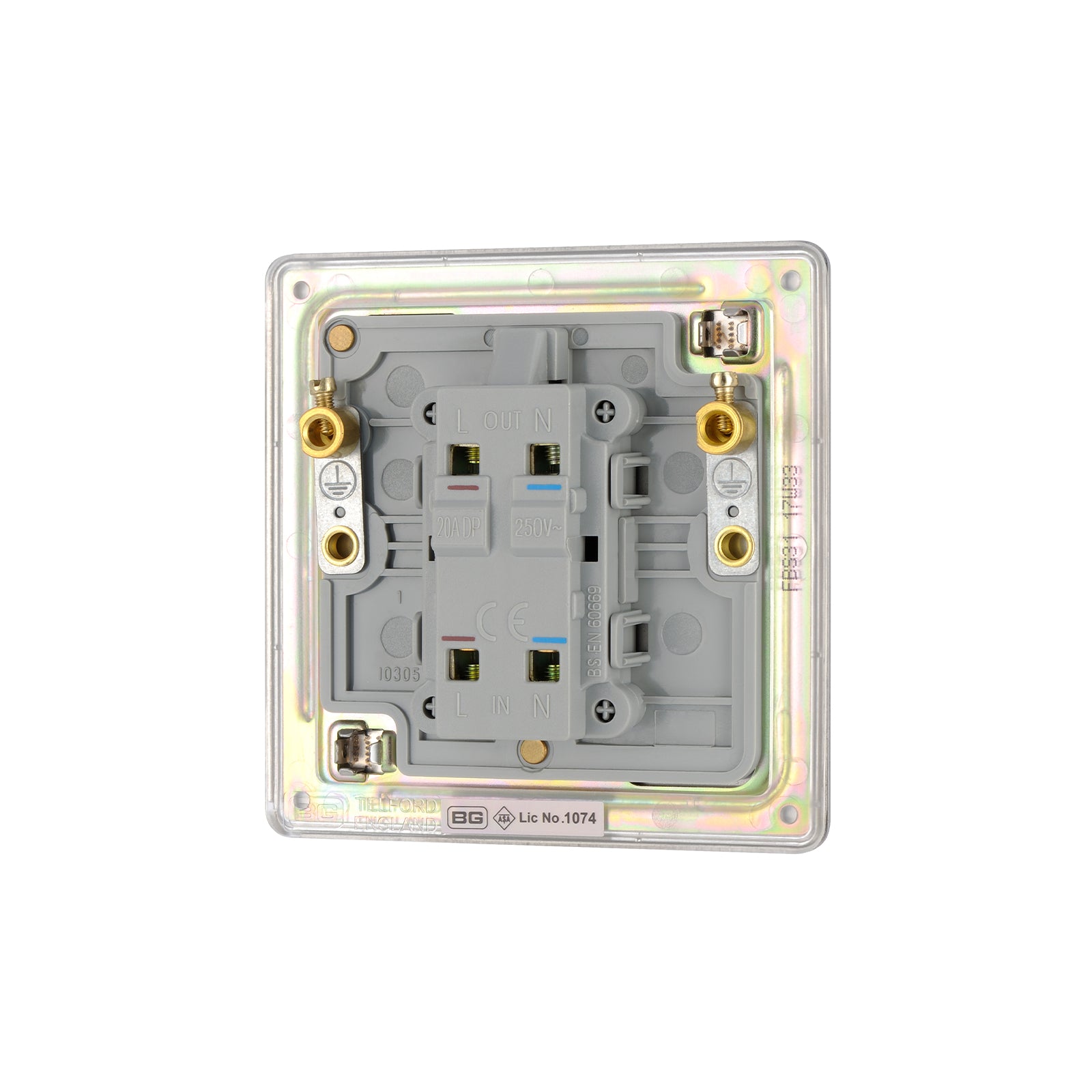

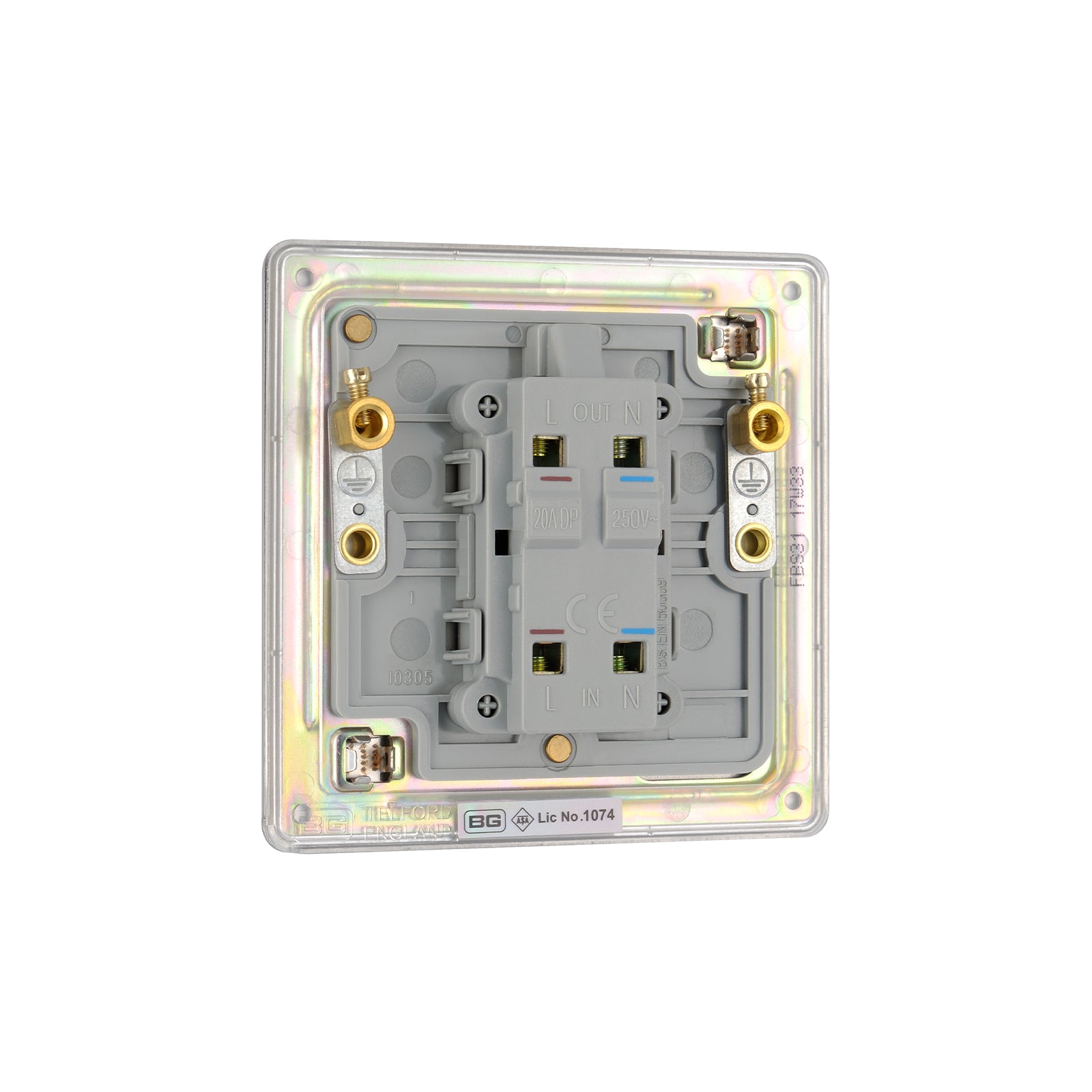

Quick & Easy Installation: Colour-coded terminals for quick wiring, Captive, backed-out screws to prevent loss, Supplied with fixings and user instructions
Durable & Stylish: Flatplate design blends into modern décor; available in 4 metal finishes.
Specifications:
Product Code: FBS31
Switch Type: 20A Double Pole with Power Indicator
Finish: Brushed Steel
Rating: 20 Amp, 250V AC
Contact Gap: ≥3.0mm
Terminal Capacity: 3 x 2.5mm², 2 x 4.0mm², 1 x 6.0mm²
Mounting Box Depth (Min): 25mm
Fixing Centres: 60.3mm
Standard(s): BS EN 60669-1
RoHS/WEEE Compliant: No
Dimensions: 87.4mm (H) x 87.4mm (W) x 25.5mm (D)
Warranty:
Built to last with a 25-year manufacturer’s warranty—providing peace of mind for years to come.
