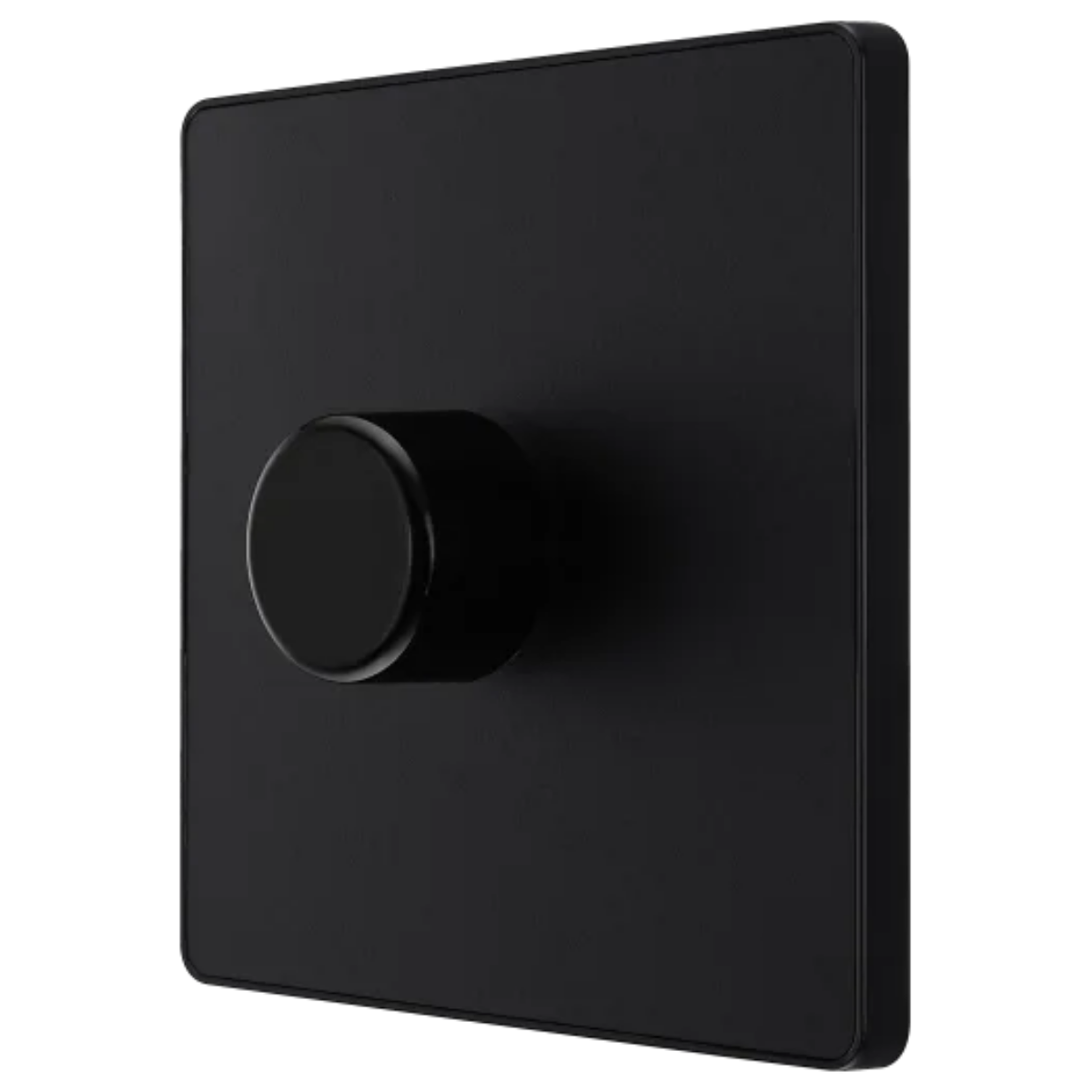

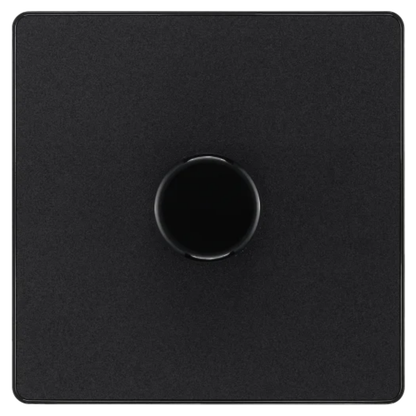

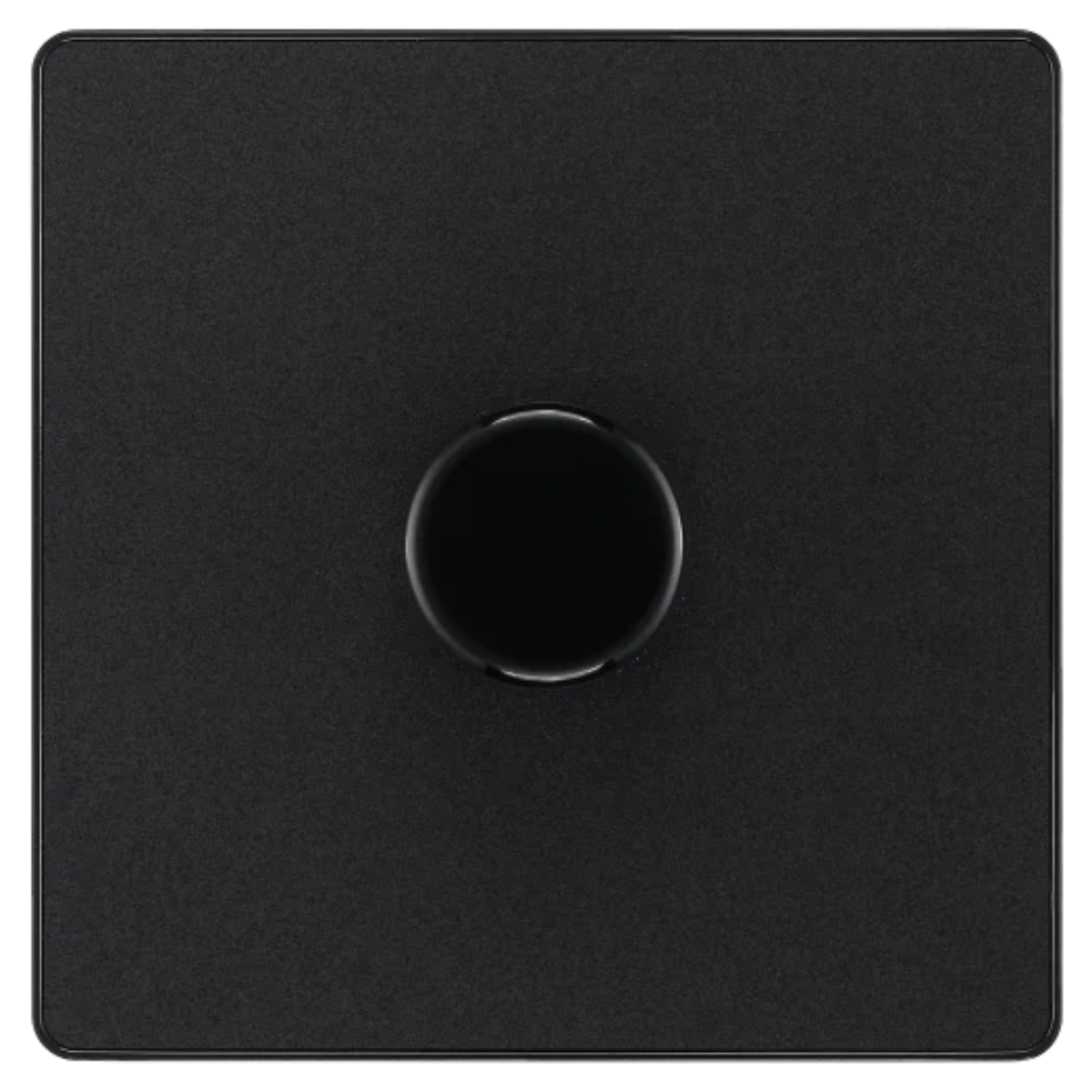

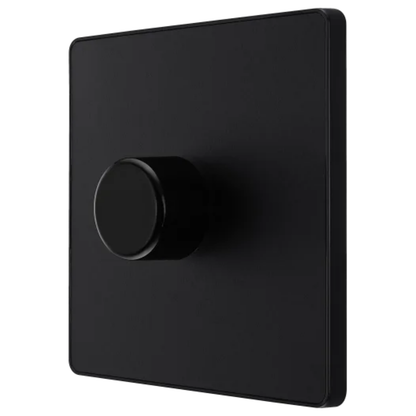

British General Evolve Matt Black 2 Way 200W Single Dimmer Switch (PCDMB81B)

BG Evolve Intelligent Trailing Edge Dimmer Switch – Modern Style, Smooth Control

Bring effortless lighting control and modern elegance to your home with the BG Evolve Intelligent Trailing Edge Dimmer Switch.
Designed to complement any interior, the Evolve range offers a choice of stylish colours and premium finishes, giving you total flexibility to match your décor.

Its sleek, screwless front plate clips on and off easily — perfect for quick installation or redecorating.

Key Features

• 💡 Intelligent Trailing Edge Dimming – Low minimum load for excellent compatibility with modern LED lighting.

• 🌟 Soft Start Technology – Gradually brightens lights to your preferred level within 1 second, extending lamp lifespan.

• ⚡ Overload Protection – Automatically dims or powers off if the circuit is overloaded to prevent damage.

• 🔇 Silent Operation – Enjoy smooth, flicker-free dimming with zero noise.

• 💫 Wide Lamp Compatibility – Ideal for LED, incandescent, halogen, and dimmable CFL lighting.

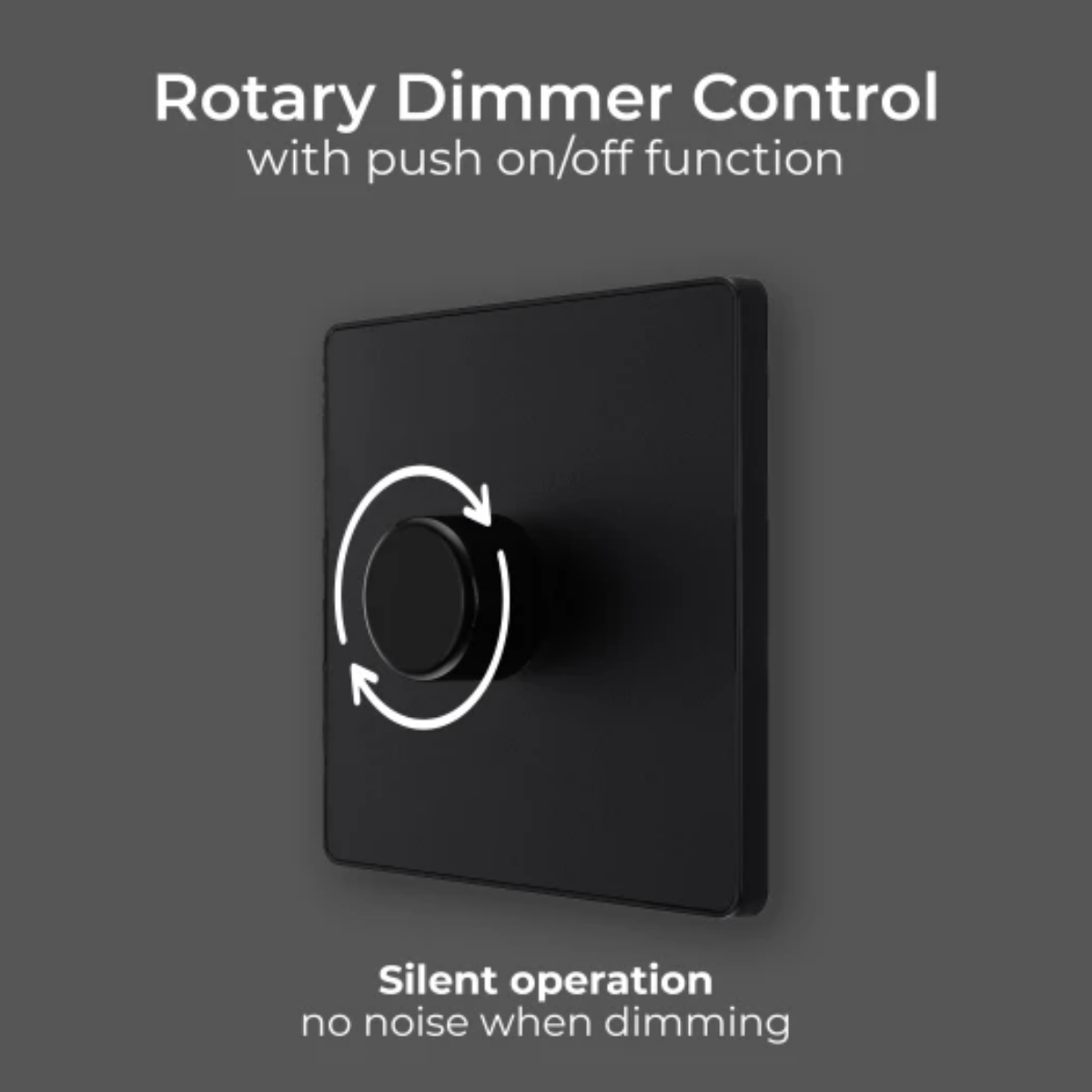

• 🔘 Rotary Push On/Off Control – Easy-to-use dimmer with intuitive rotary dial.

• 🧩 Captive Backed-Out Screws – Prevents screw loss during installation.

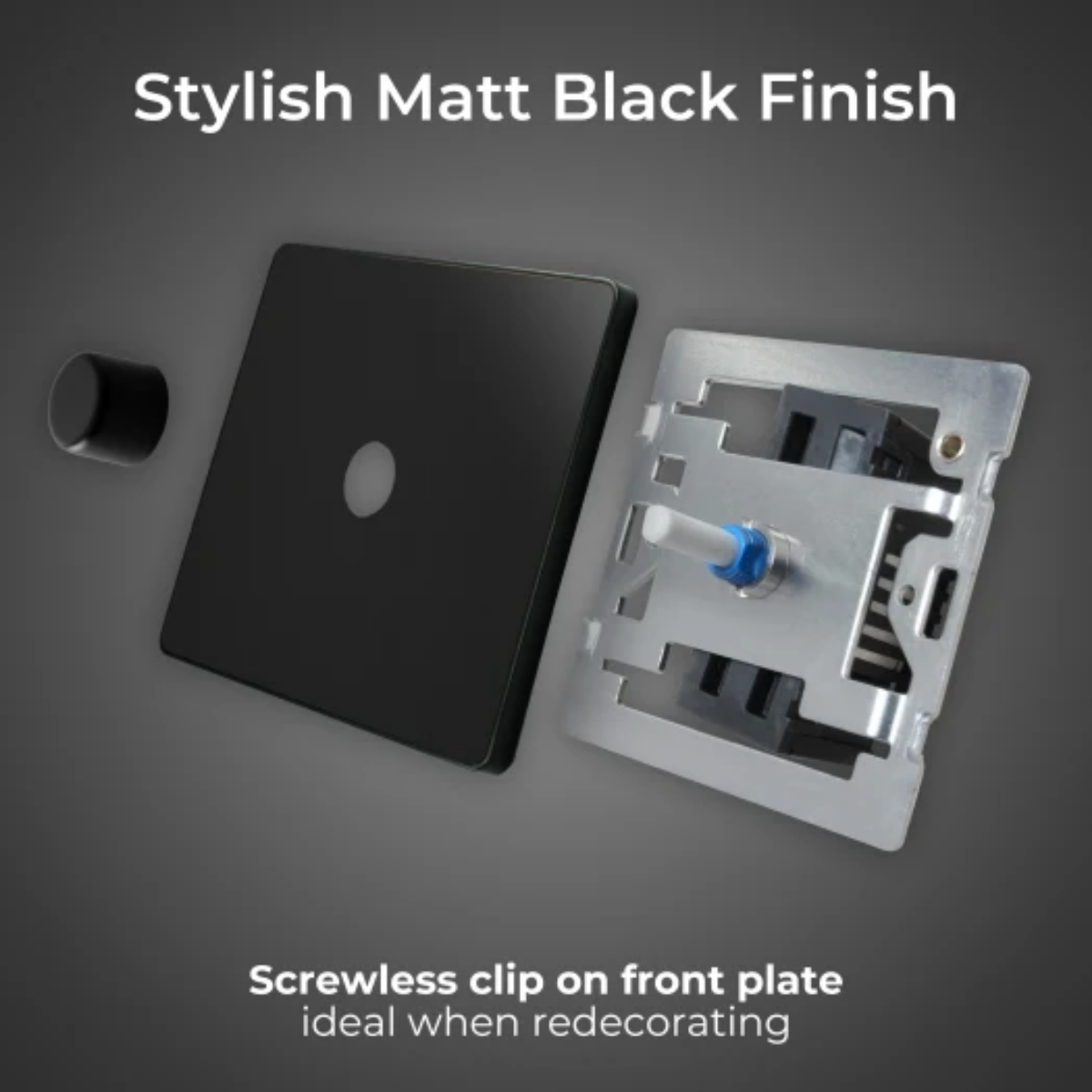

• 🎨 Screwless Clip-On Front Plate – Clean, modern finish that’s easy to remove for redecorating.

Technical Specifications

• Standard: BS EN 60669-2-1

• Voltage: 250V AC

• Type: Trailing Edge Dimmer

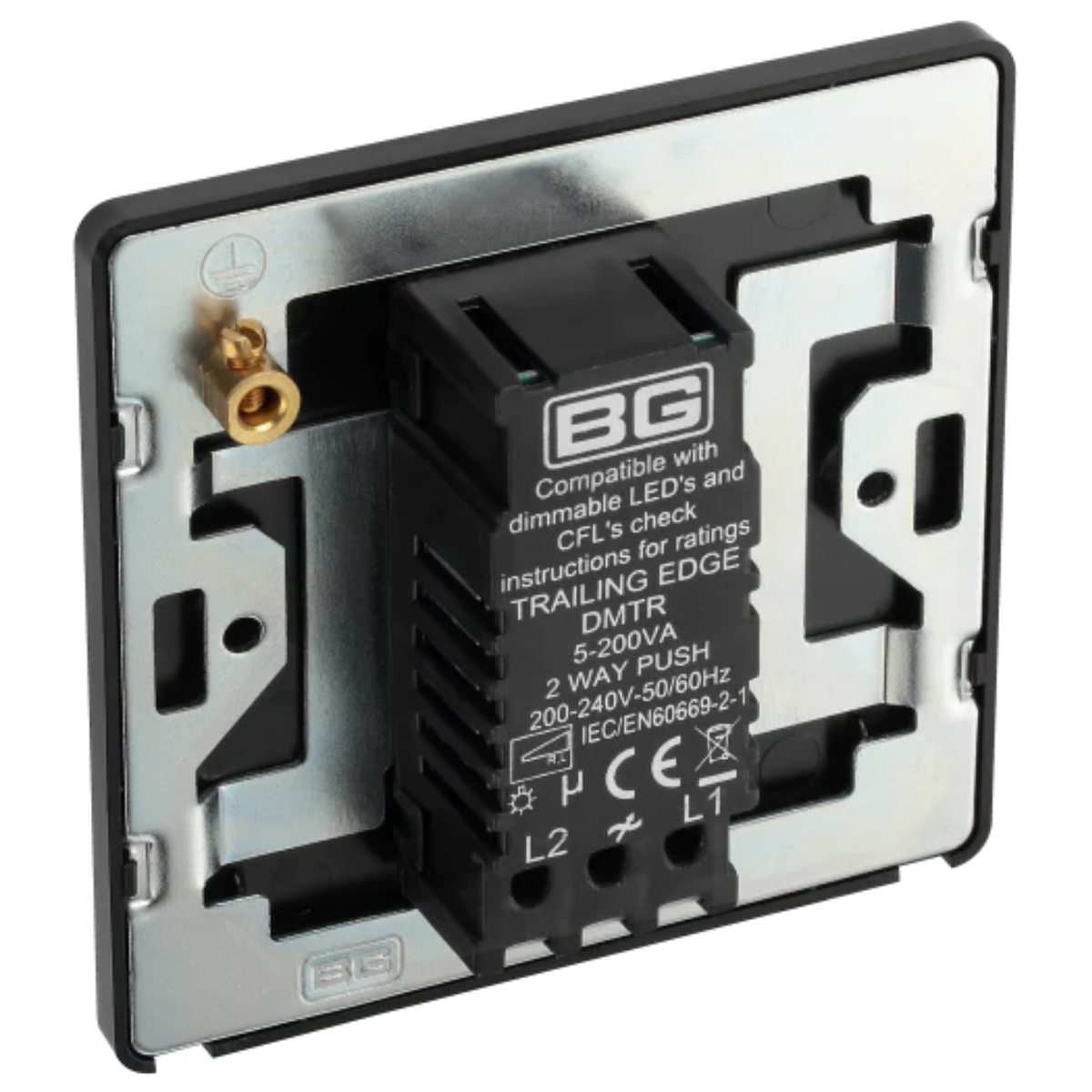

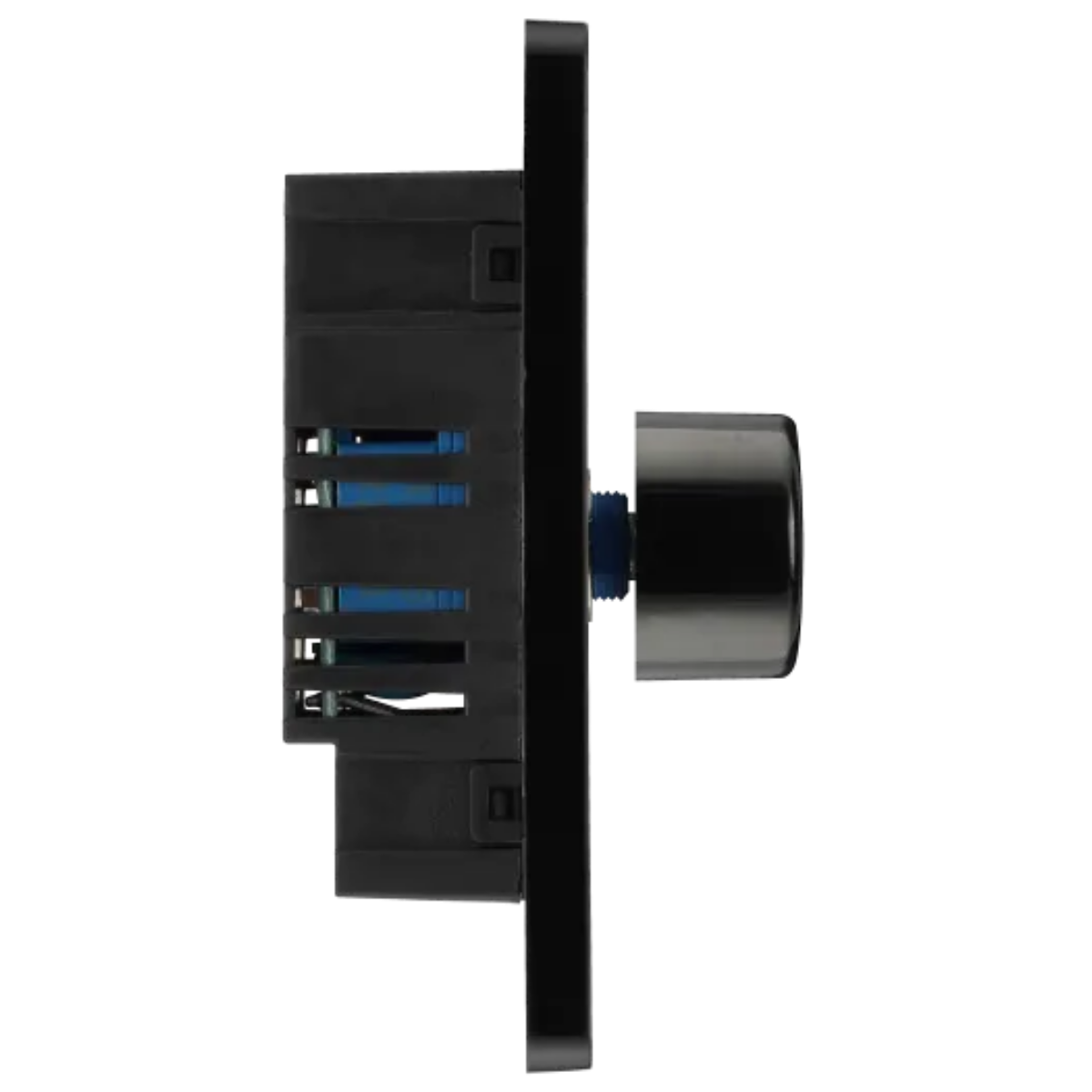

• Terminal Capacity: 3 × 1mm², 2 × 1.5mm², 1 × 2.5mm²

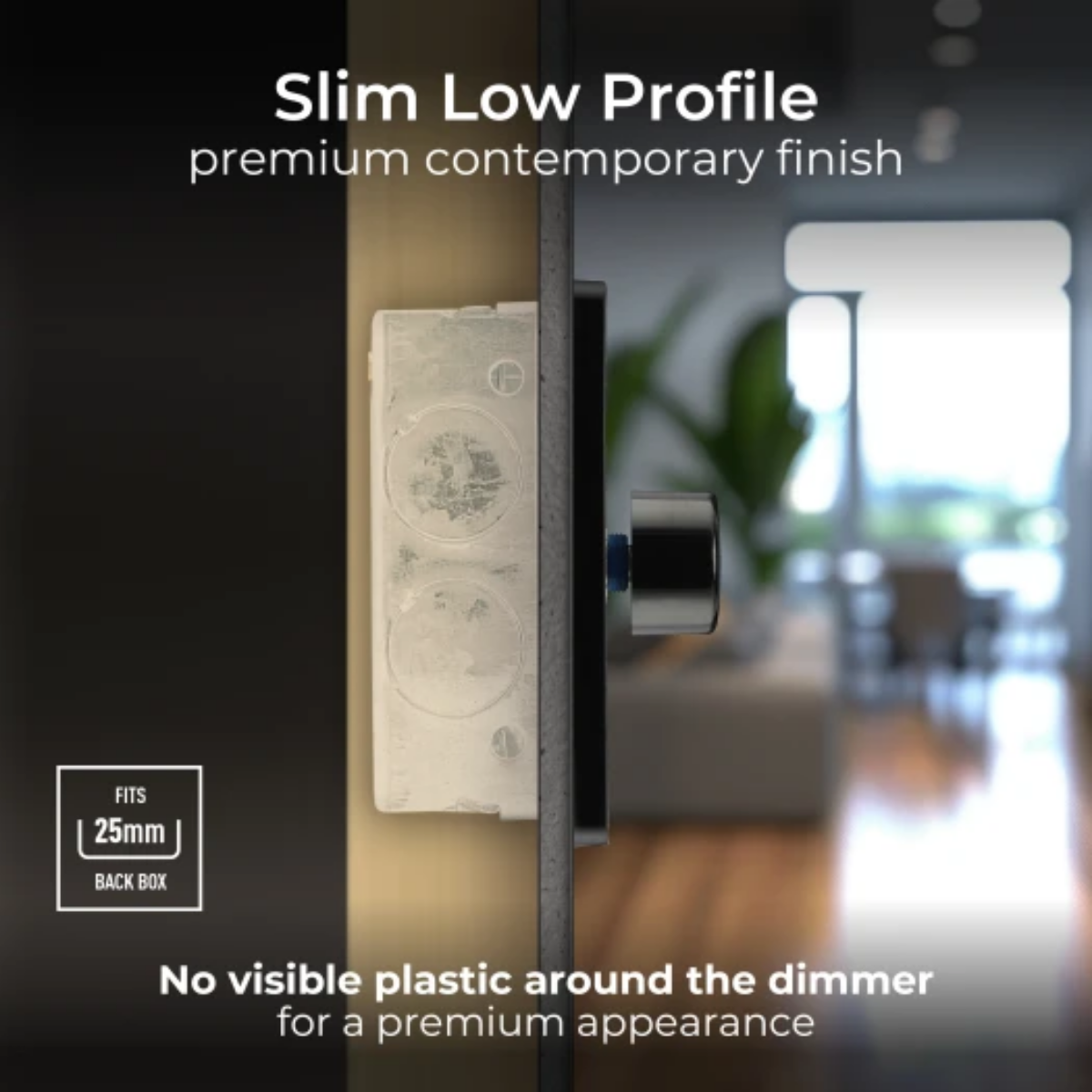

• Mounting Box Depth (Min): 25mm

• Load Rating (per module):

  • Dimmable LED: 5–100W

  • Tungsten/Incandescent: 5–200W

  • Halogen: 20–200W

  • Dimmable CFL: 5–100W

• RoHS Compliant: Yes

• WEEE Compliant: Yes
