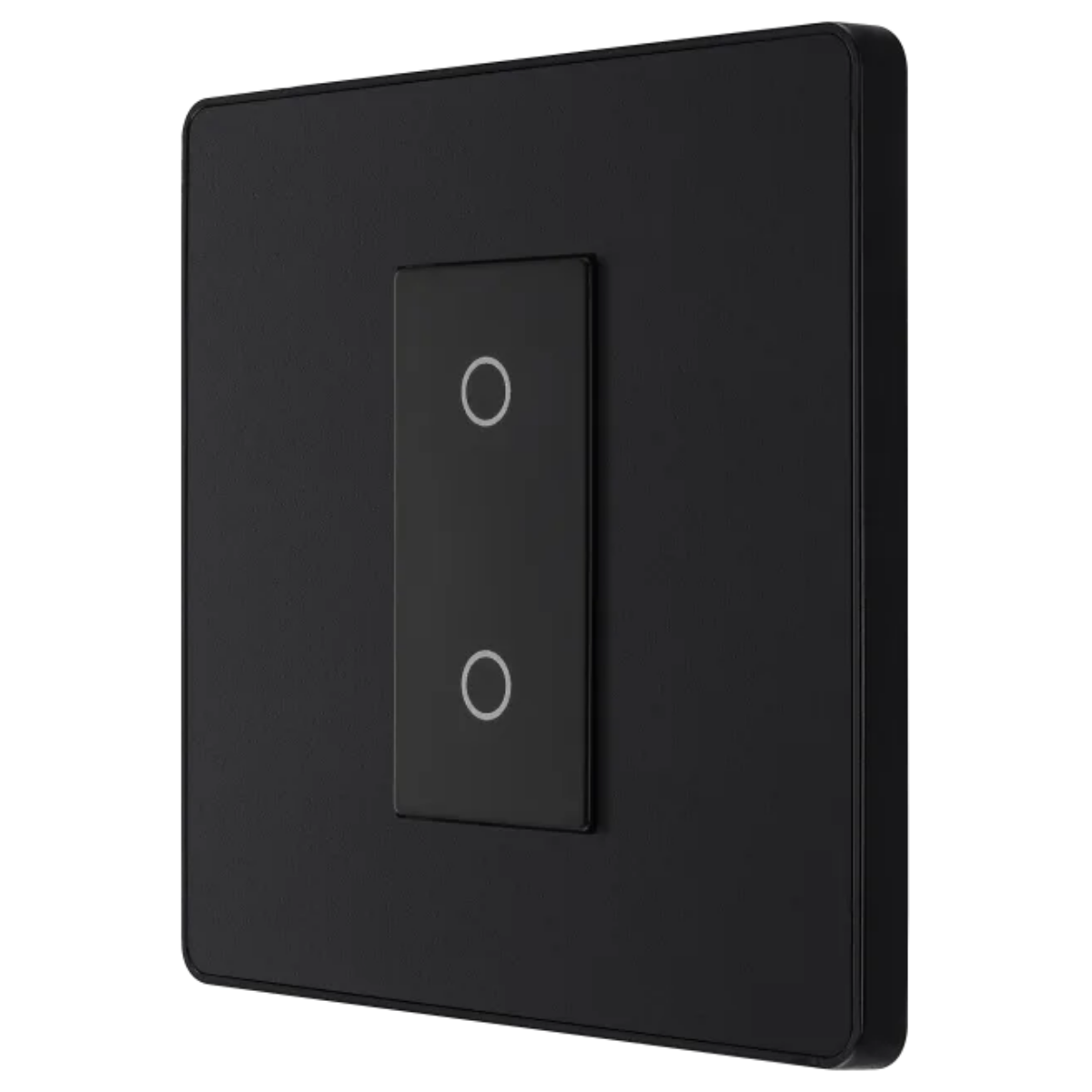

British General Evolve Matt Black 200W Single Touch Dimmer Switch 2 Way (PCDMBTDM1B)

BG Evolve Touch Dimmer Switch – Modern Control with a Sleek Finish

Smart, Silent & Stylish Lighting for Every Space

Upgrade your home lighting with the BG Evolve Touch Dimmer Switch, designed to combine modern aesthetics with cutting-edge performance. Available in a range of stylish colours and finishes, the Evolve series allows you to match your electrical fittings seamlessly with your interior décor.

The sleek screwless front plate simply clips on and off, making it quick and easy to install or redecorate without hassle — perfect for those who value both function and form.

Key Features

• 💡 Intelligent Trailing Edge Dimming – Optimised for modern LED lighting with a low minimum load for better compatibility.

• 🌙 Soft Start Function – Gently brings lights up to your preferred brightness in about one second, extending lamp life.

• ⚡ Overload Protection – Automatically adjusts or switches off when too many lights are connected to prevent damage.

• 🔇 Smooth & Silent Operation – Enjoy flicker-free dimming with no electrical noise or buzzing.

• 🖐 Touch Control Interface – Effortless operation with a sleek, modern touch-sensitive design.

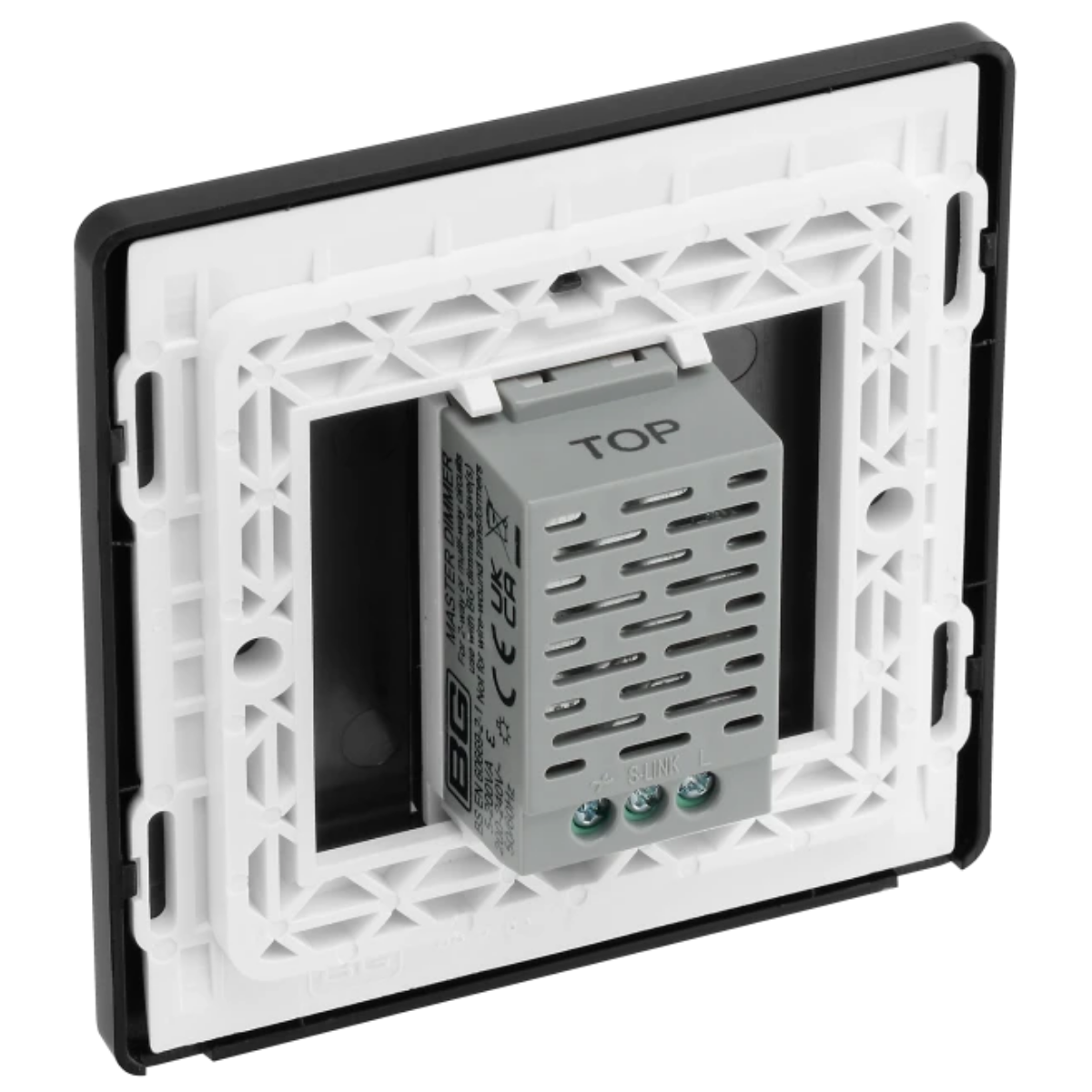

• 🧰 Easy Installation – Captive backed-out terminal screws prevent loss during fitting, and the screwless clip-on front plate is perfect for redecorating.

Technical Specifications

• Standard(s): BS EN 60669-2-1

• Voltage: 250V AC

• Type: Trailing Edge

• Terminal Capacity: 3 × 1mm², 2 × 1.5mm² & 1 × 2.5mm²

• RoHS Compliant: Yes

• WEEE Compliant: Yes

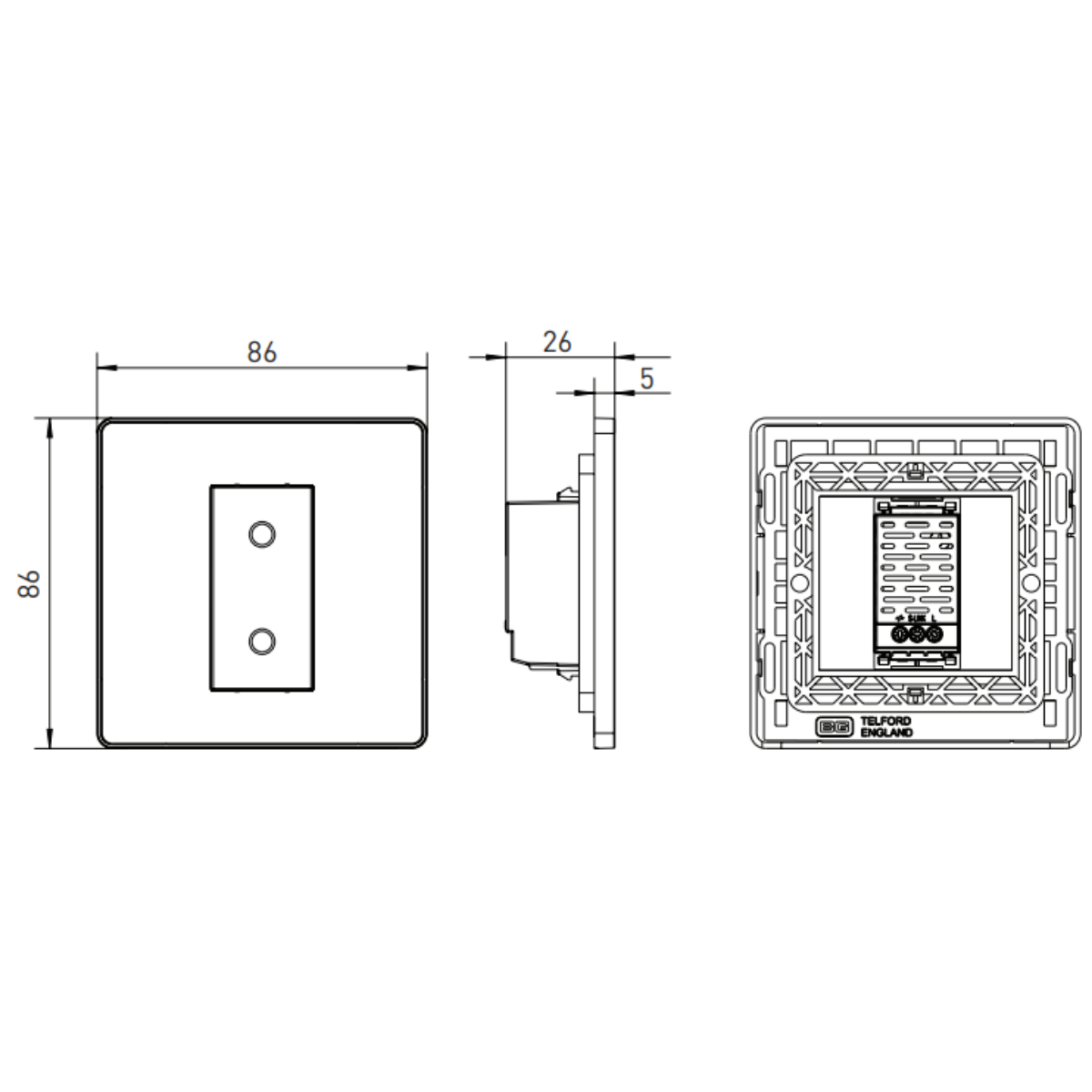

• Minimum Mounting Box Depth: 25mm

• Load Rating (Max/Min per Module):

  • Dimmable LED: 5–100W

  • Tungsten/Incandescent: 5–200W

  • Halogen: 20–200W

  • Dimmable CFL: 5–100W
