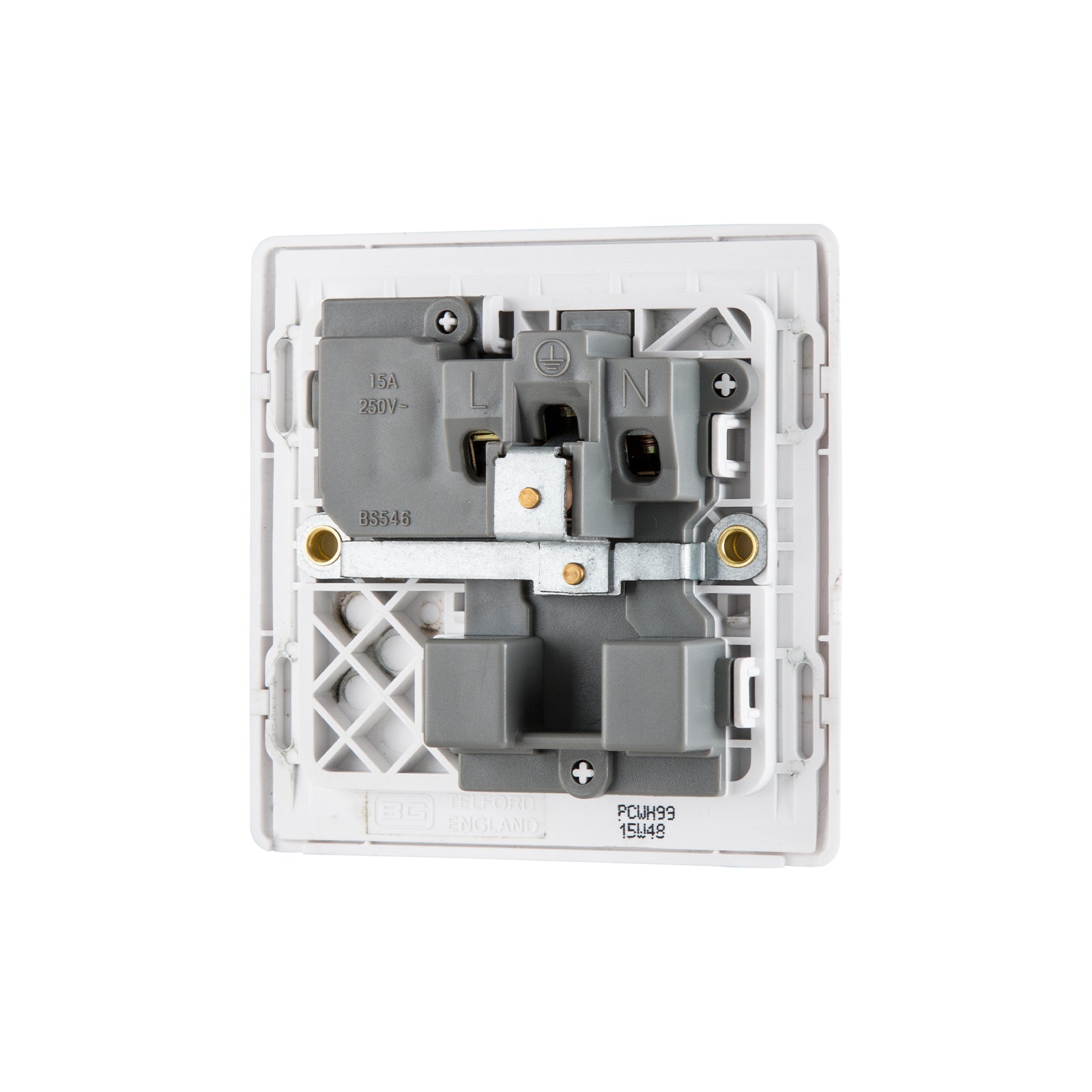

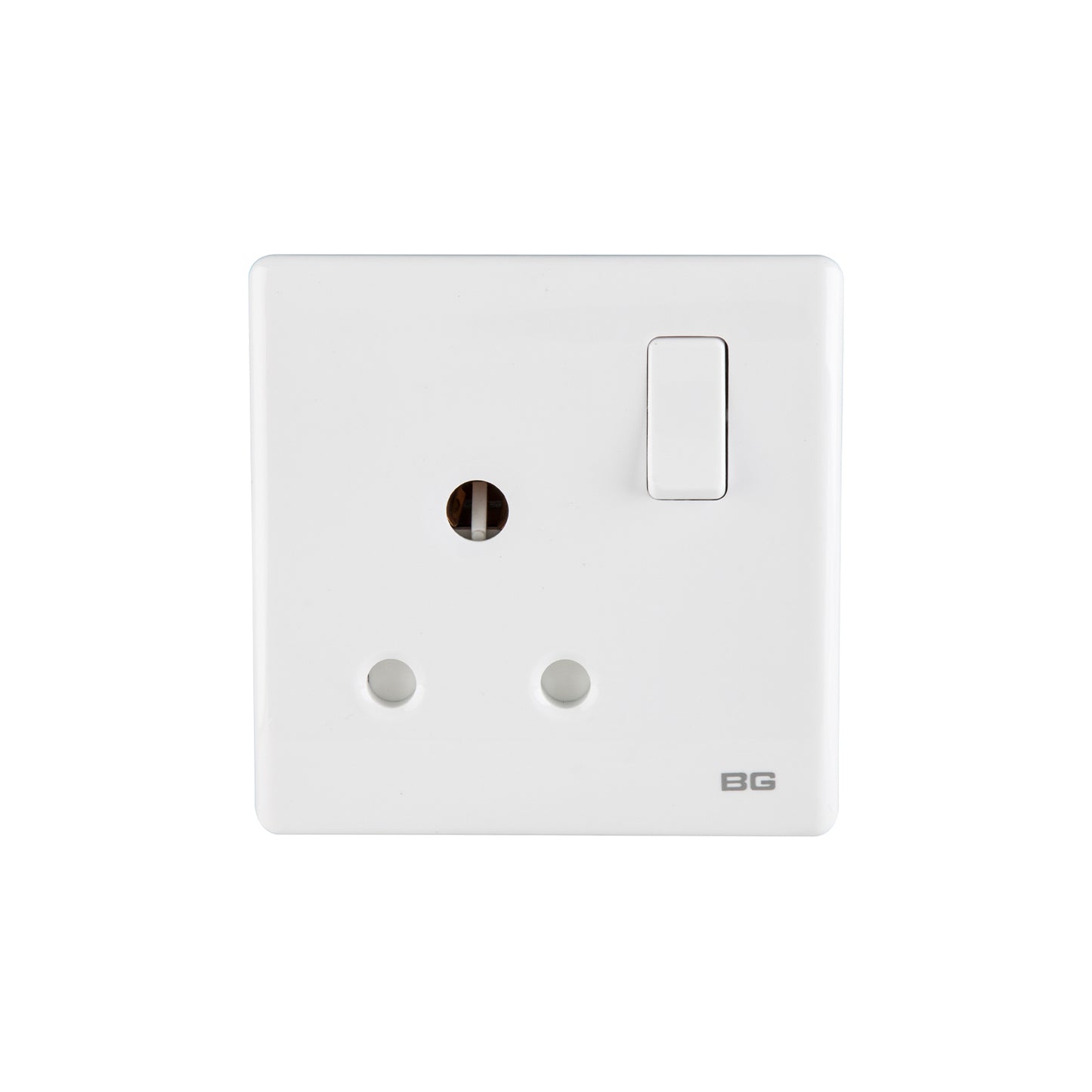

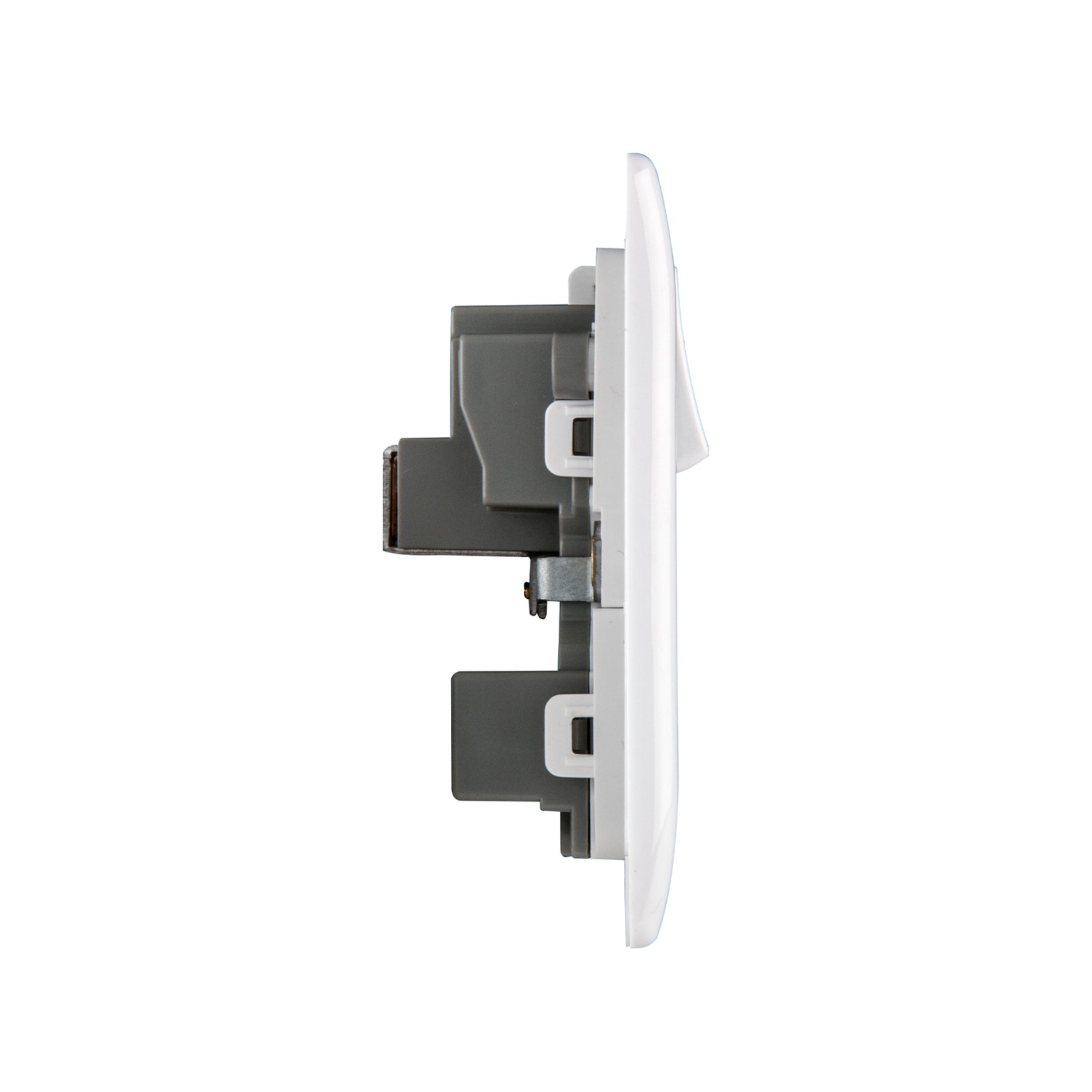

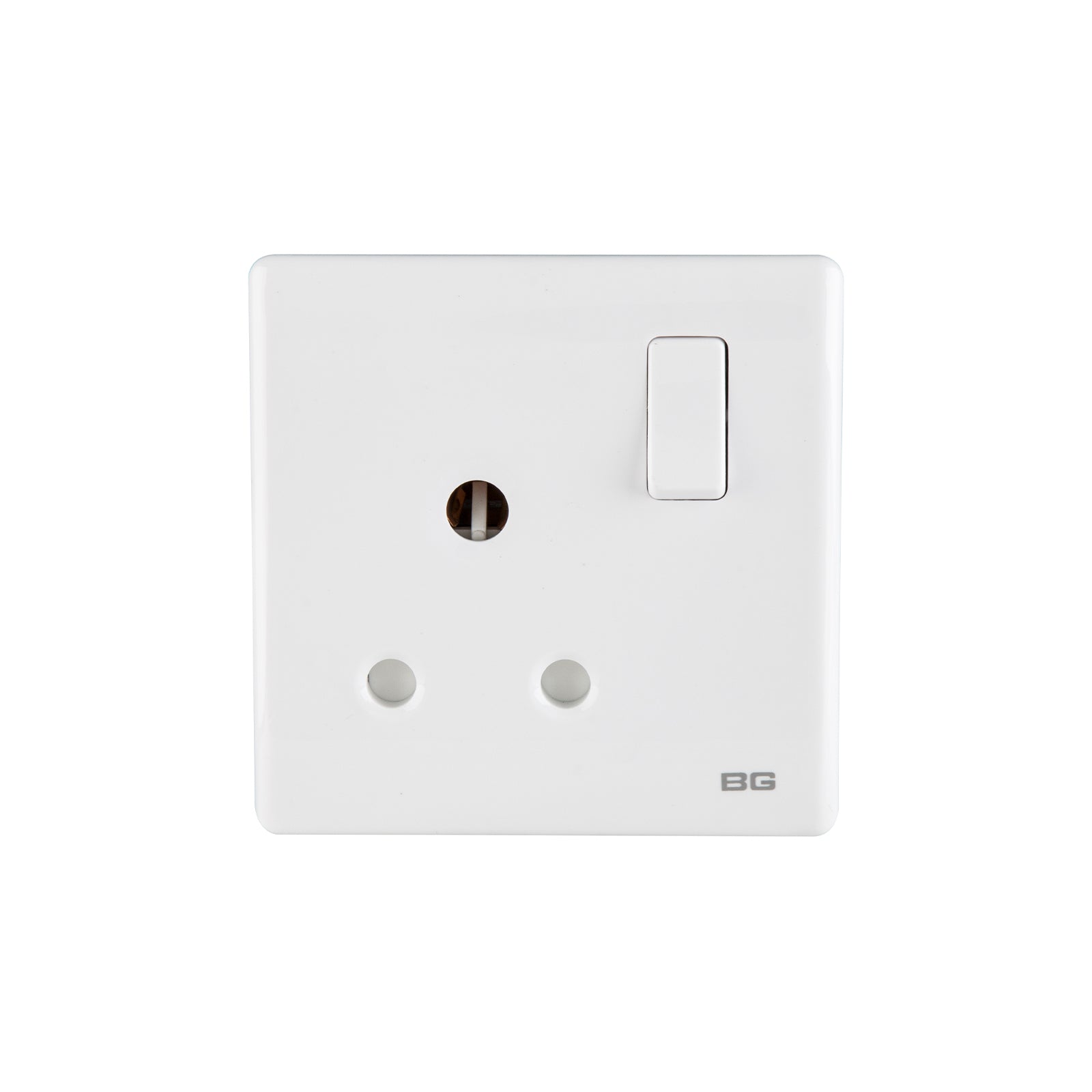

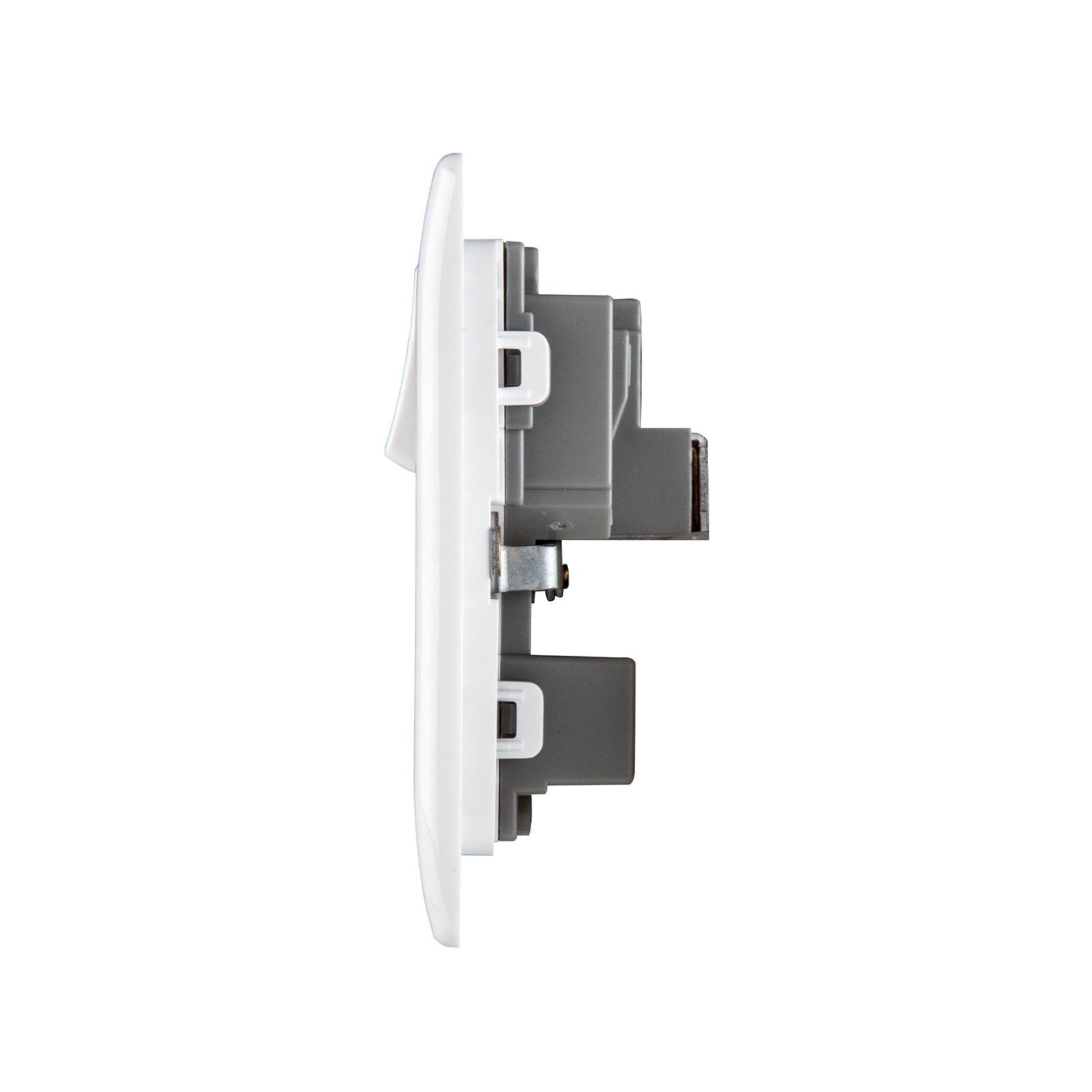

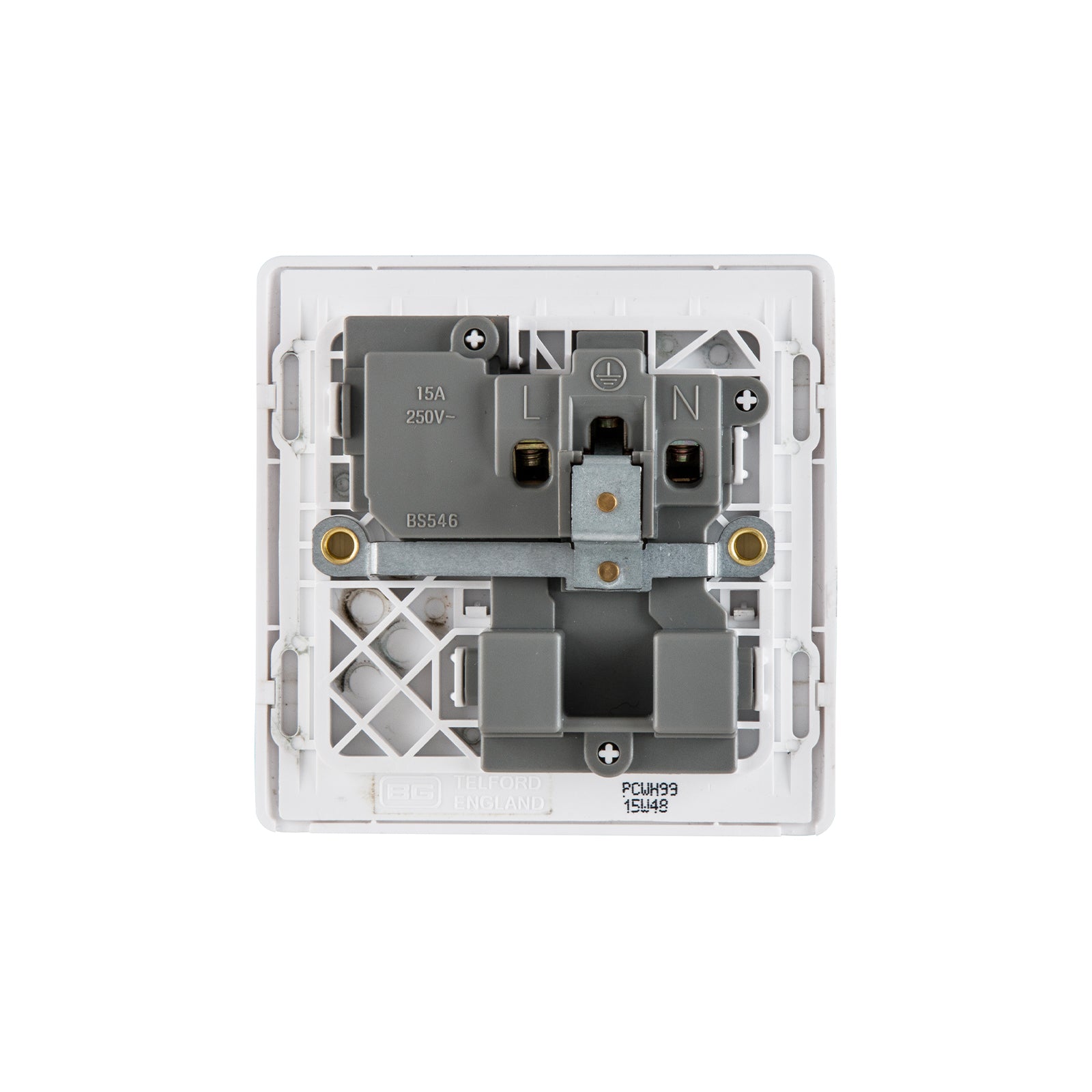

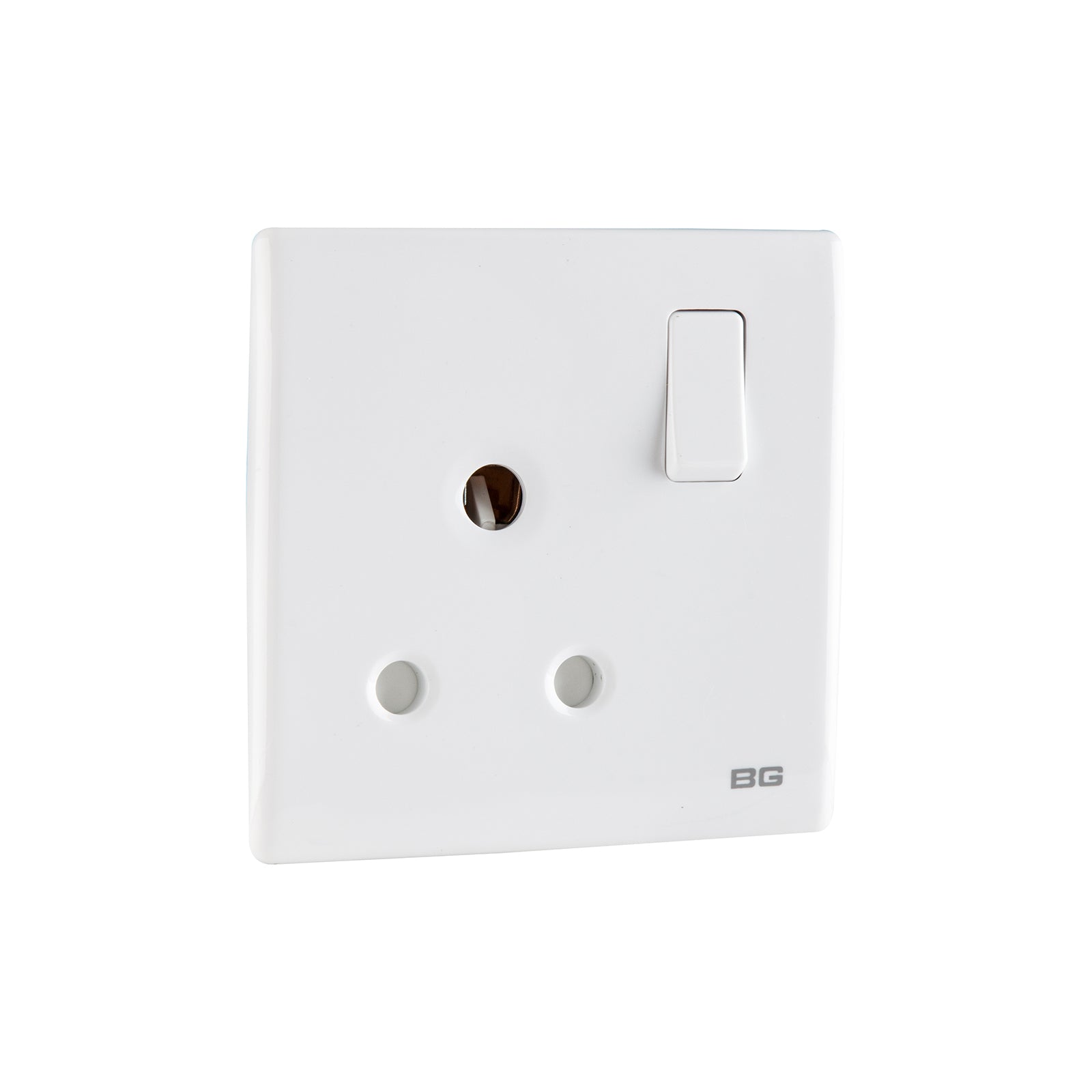

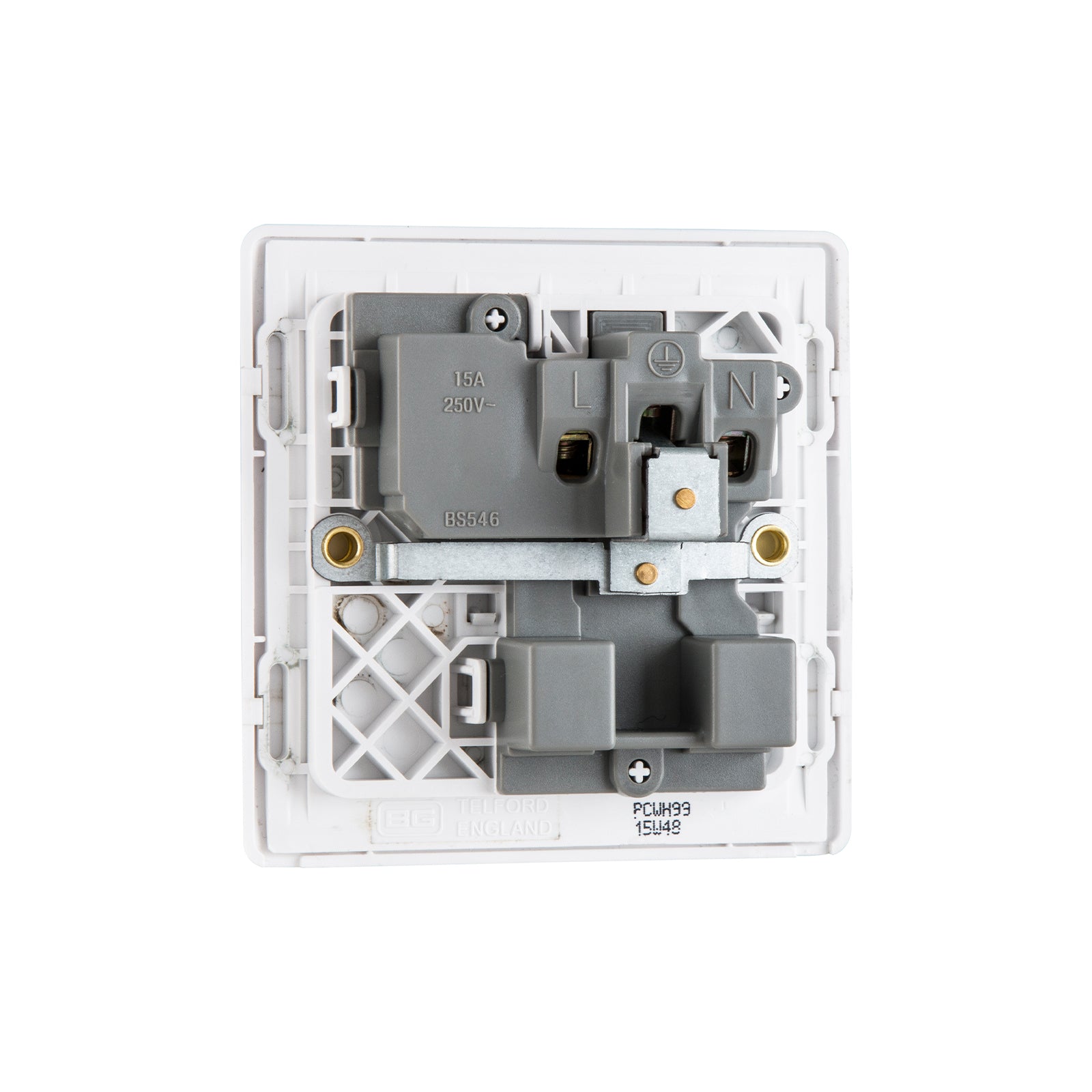

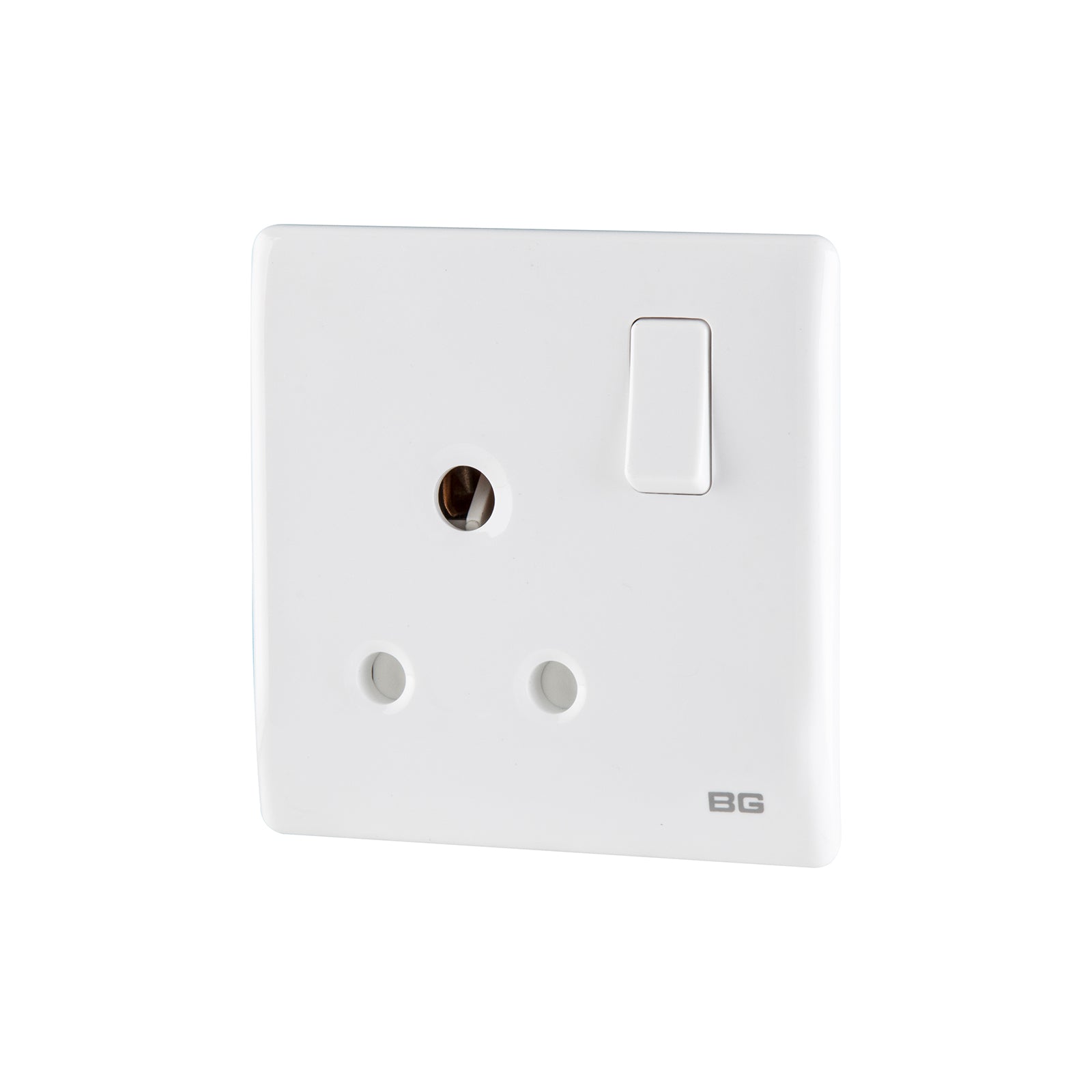

British General BG Neo Slimline 15Amp Single Pole Round Pin Switched Socket (PCWH99)

Description

The British General PCWH99 is a high-integrity 15A single pole round pin switched socket designed to meet the demands of both domestic and commercial environments. Part of the BG Neo Slimline range, it features a slim, screwless profile with a minimalist aesthetic that blends effortlessly with any décor. Engineered for performance and safety, it includes twin earth terminals for circuits requiring enhanced protection and concealed fixings for a clean, modern look.

Features

15A Rated Socket: Ideal for applications requiring higher current capacity, such as lighting systems or specialist equipment.

Slimline Design: Neo Slimline screwless faceplate clips on and off easily, offering a sleek, low-profile appearance.

Twin Earth Terminals: Provides additional safety for high-integrity circuits (in line with BS 7671:2008).

Captive Terminal Screws: Prevents screw loss during installation.

Concealed Fixings: Delivers a clean and seamless finish.

BG Quality Assurance: Manufactured to BS 546 standards for reliability and performance.

Specifications

Product Code: PCWH99

Socket Type: 15A Round Pin, Single Pole

Current Rating: 15 Amp

Standards Compliance: 15A Sockets: BS 546, 13A Sockets: BS 1363-2, Universal: IEC60884-1

Terminal Capacity: 3 × 2.5mm², 3 × 4.0mm², 2 × 6.0mm²

Mounting Box Depth: Minimum 35mm

Finish: White

Fixing: Concealed fixing screws

Warranty

Manufacturer’s Warranty: 25 Years
Covers defects in materials and workmanship under normal use conditions.

Package Includes

1 × British General PCWH99 15A Round Pin Switched Socket

Fixing Screws

Installation Instructions
